Air Quality Sensor
SS201-01
Air Quality Sensor
Product Highlights
● PM2 .5,PM10 and PM1 .0 simultaneous output in RS485 version.

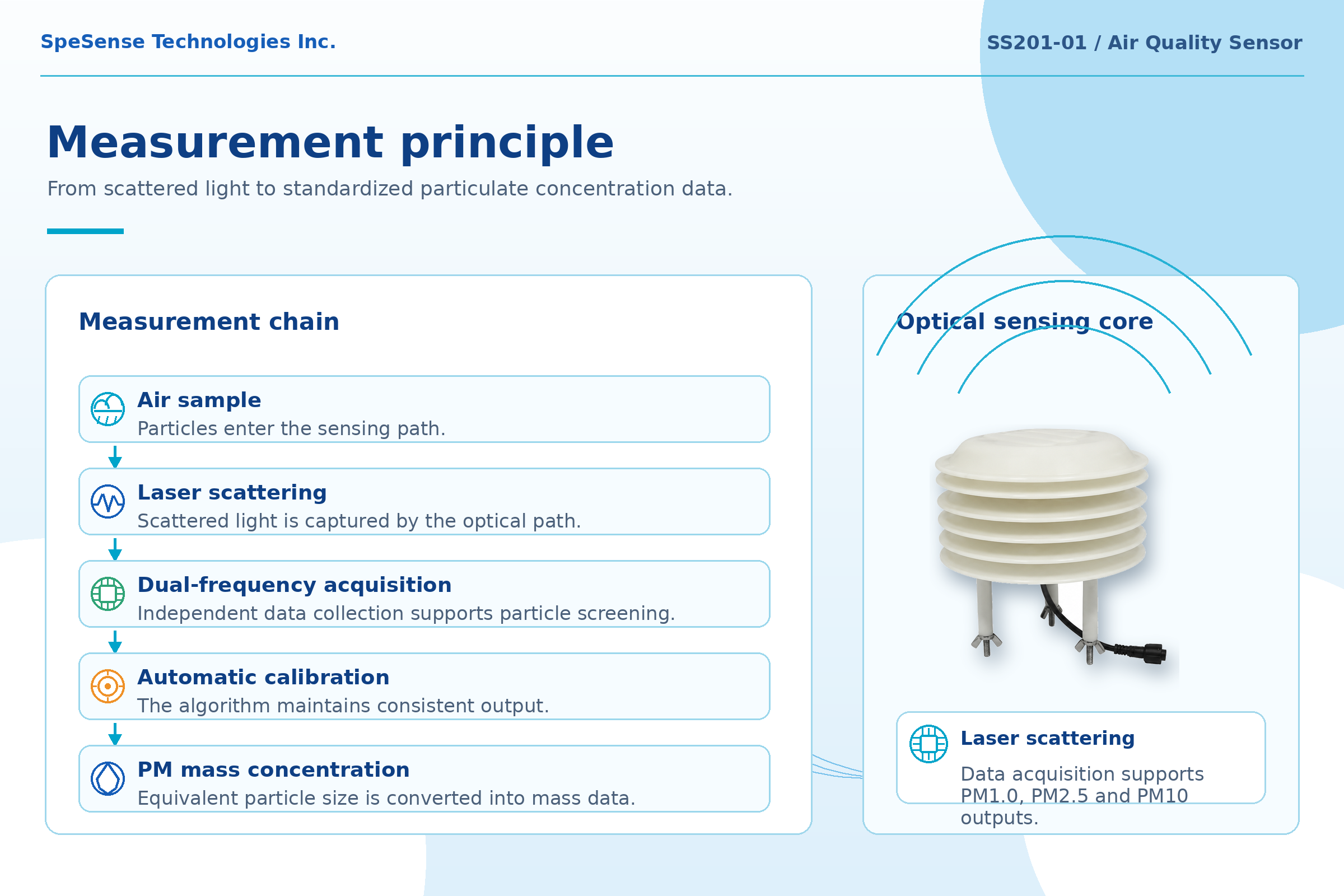

● Dual-frequency data acquisition and automatic calibration;consistency up to ±10%.

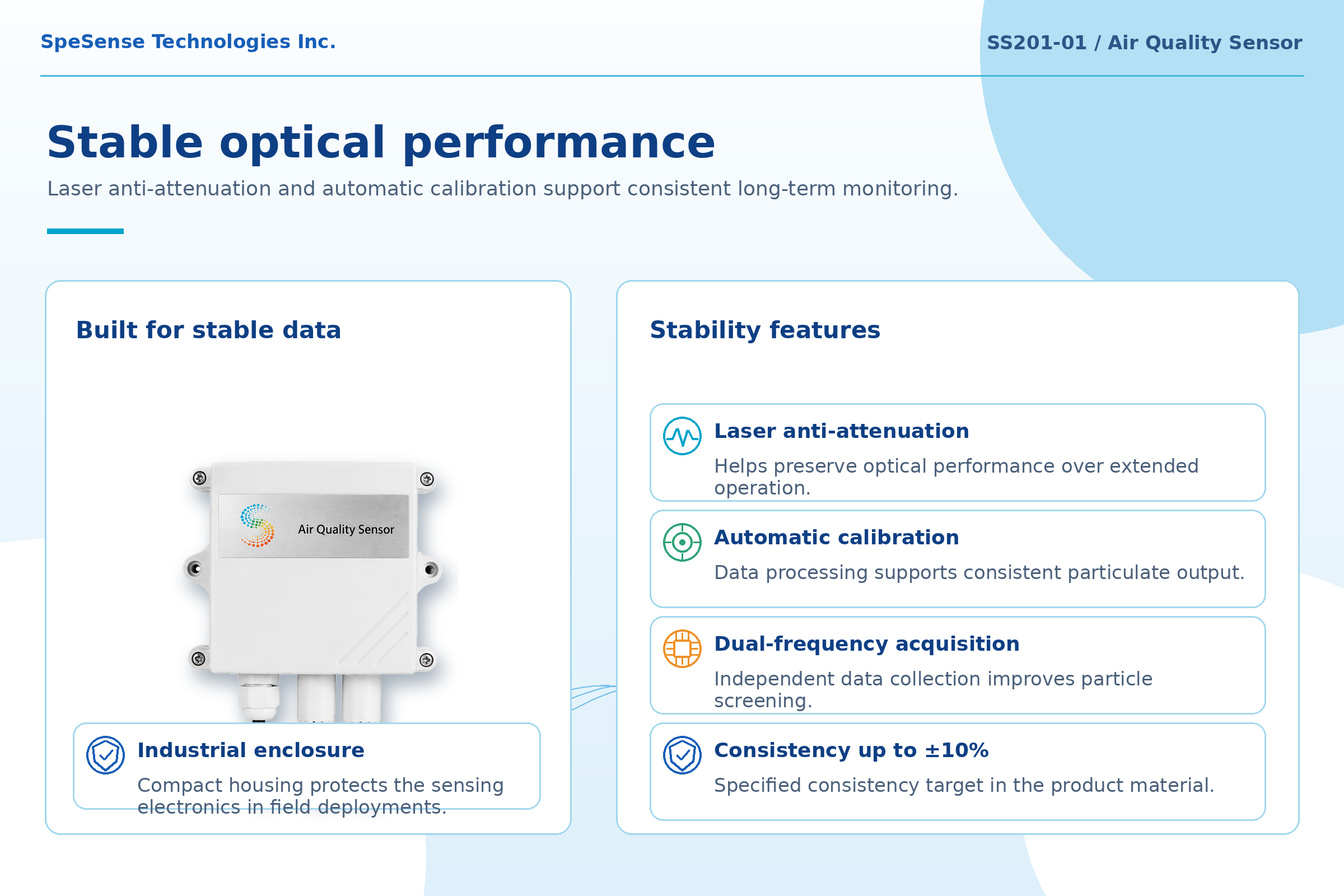

● Advanced laser anti-attenuation technology for long term stability.

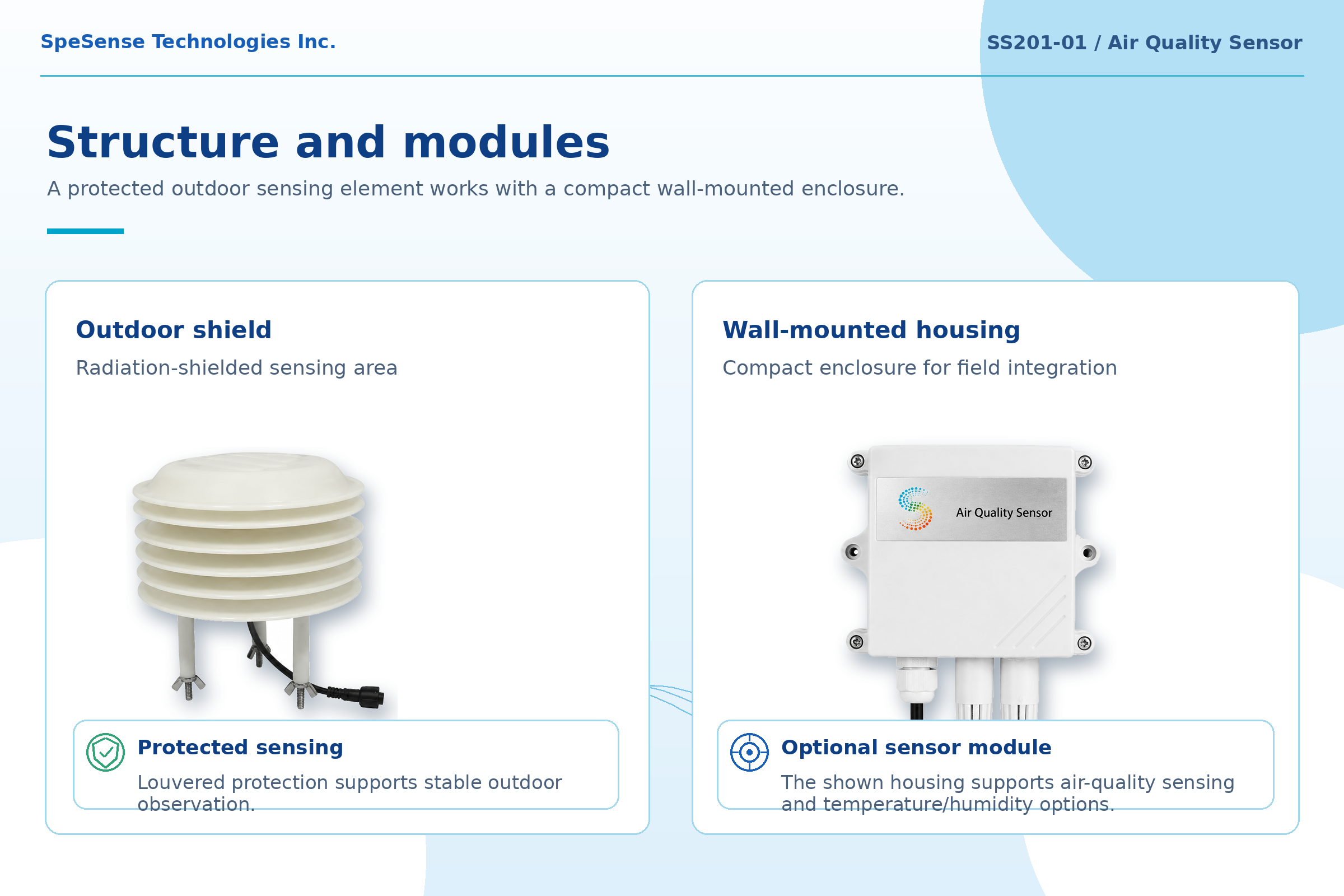

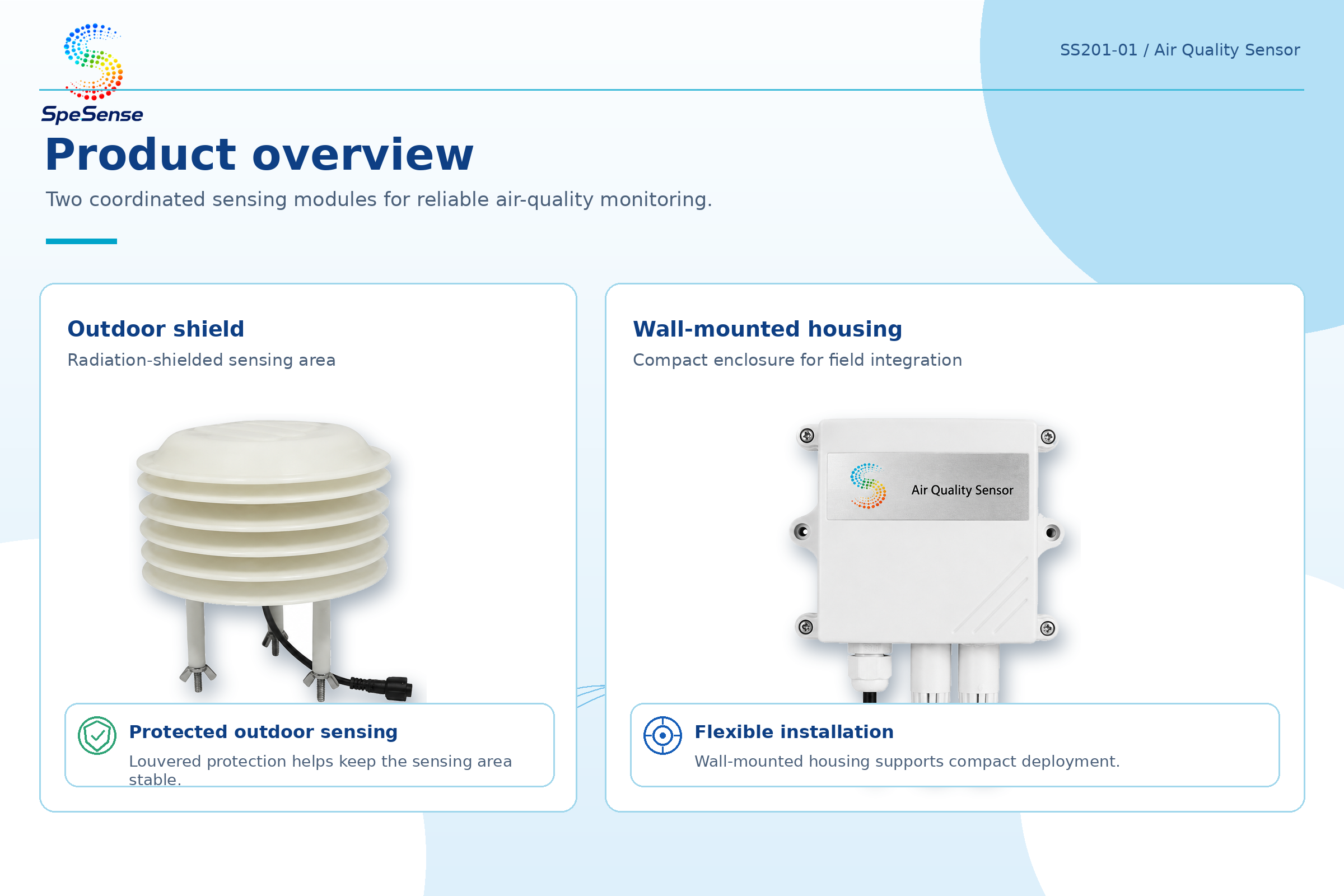

● Supports wall-mounted enclosure and louver-box configuration.
● Dual-frequency data acquisition and automatic calibration;consistency up to ±10%.
● Advanced laser anti-attenuation technology for long term stability.
● Supports wall-mounted enclosure and louver-box configuration.
Product Overview

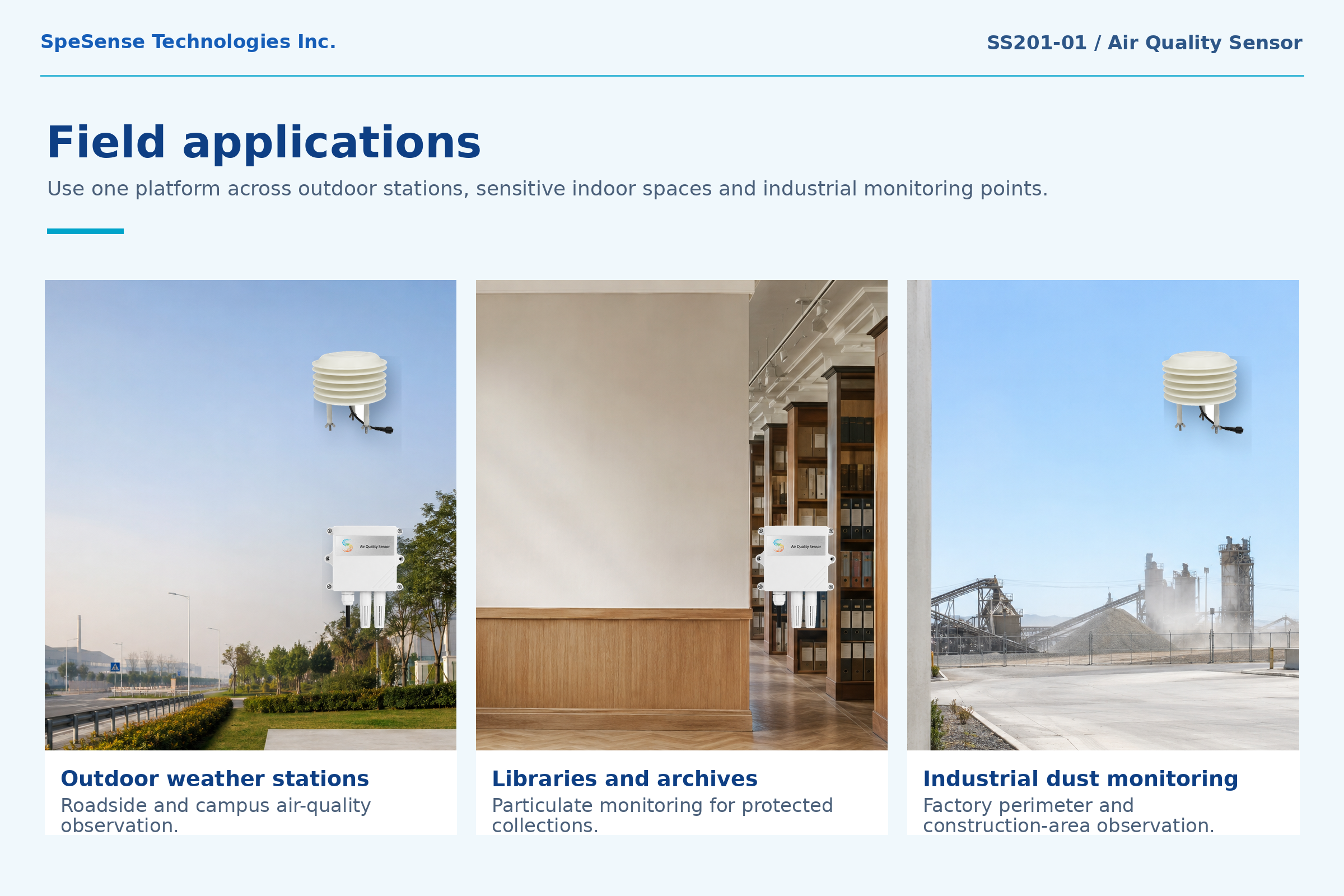

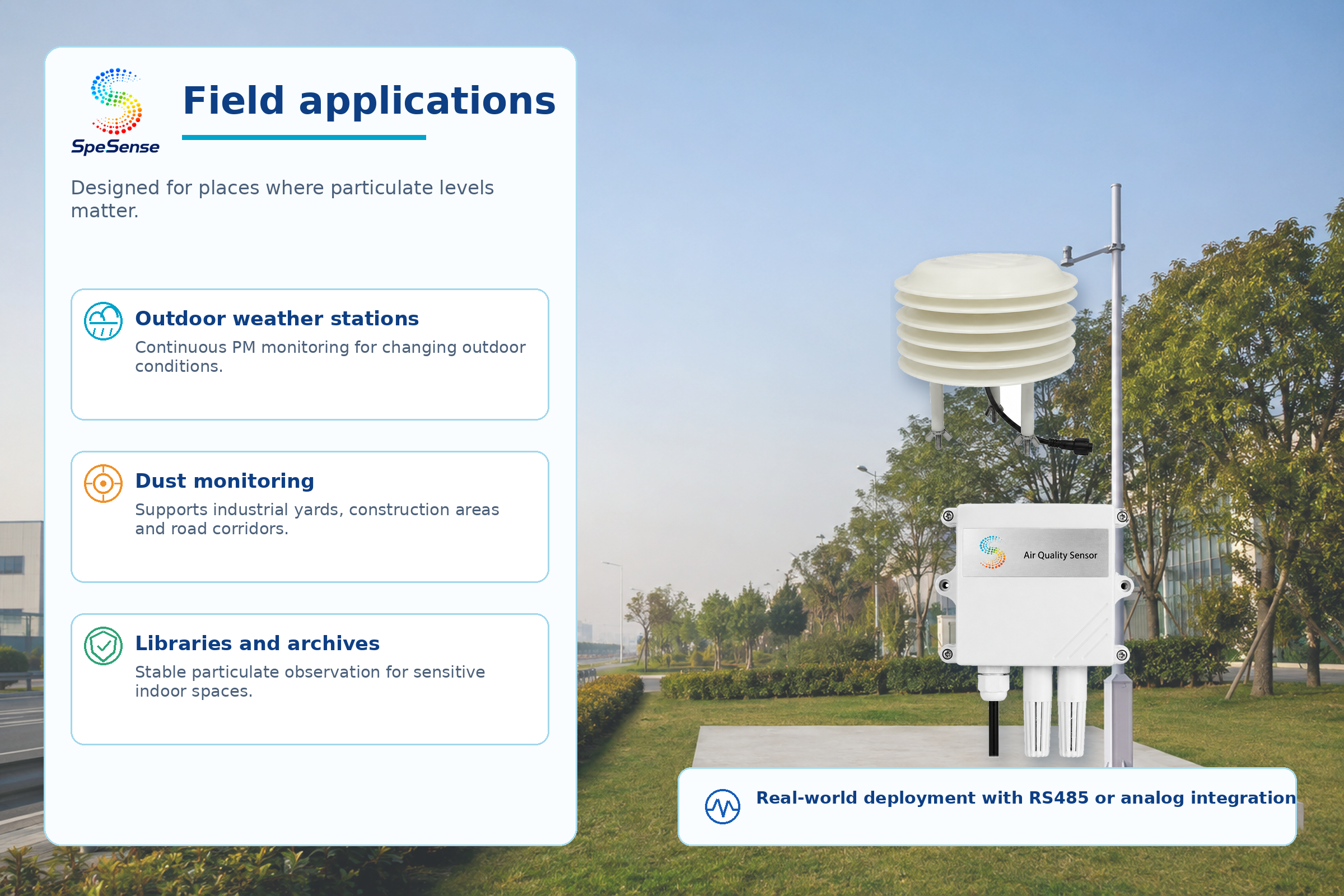

The SpeSense SS201-01 Air Quality Sensor is designed for particulate matter monitoring in industrial and environmental applications. It measures PM1.0, PM2.5 and PM10 concentrations to support air quality assessment in urban environments, industrial facilities and environmental monitoring networks. With support for RS485 Modbus communication in the corresponding version and options for wall-mounted or louver-box installation, the sensor is suitable for smart city air quality monitoring, industrial particulate monitoring and environmental data acquisition systems.

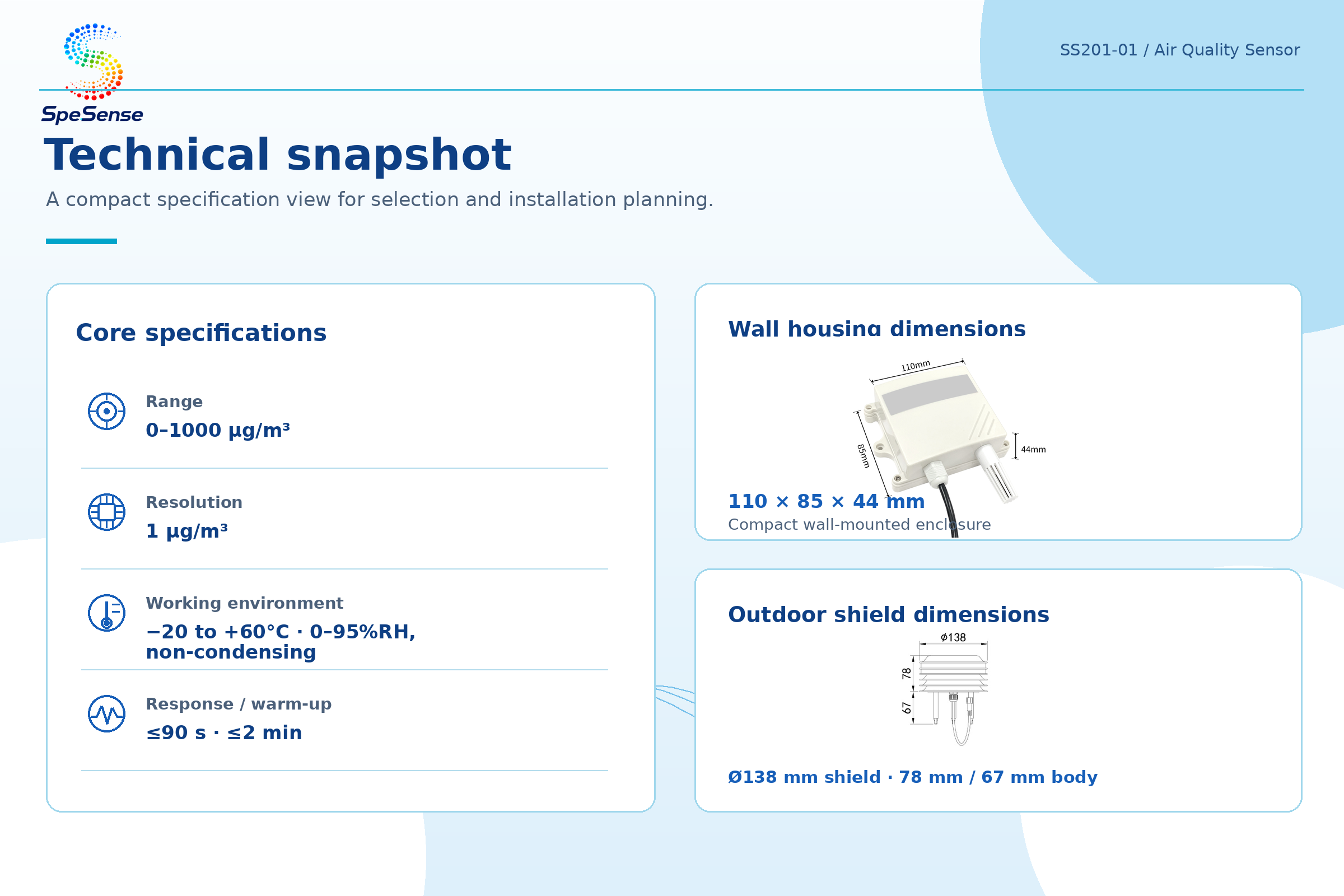

Technical Specifications
| Item | Specification |

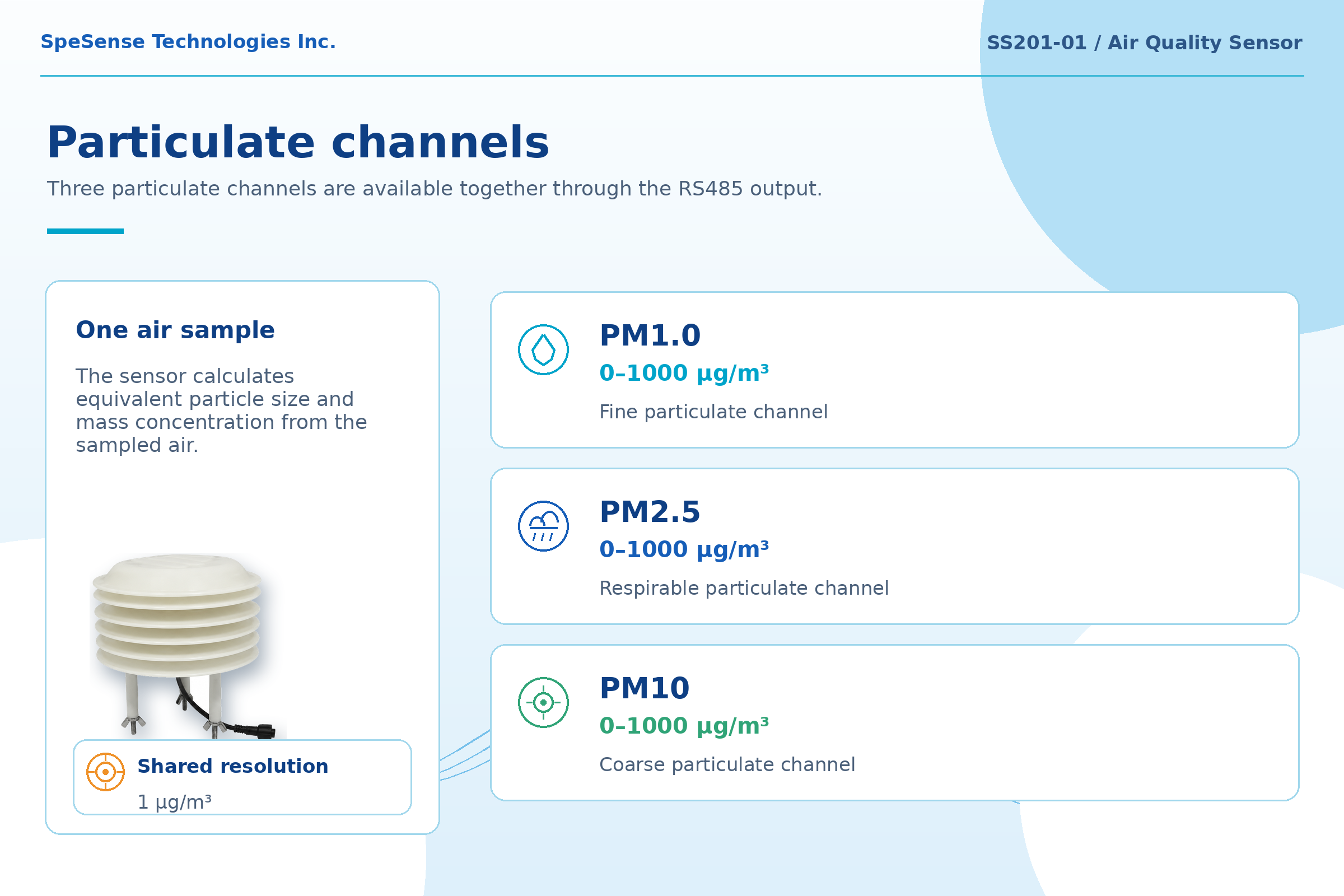

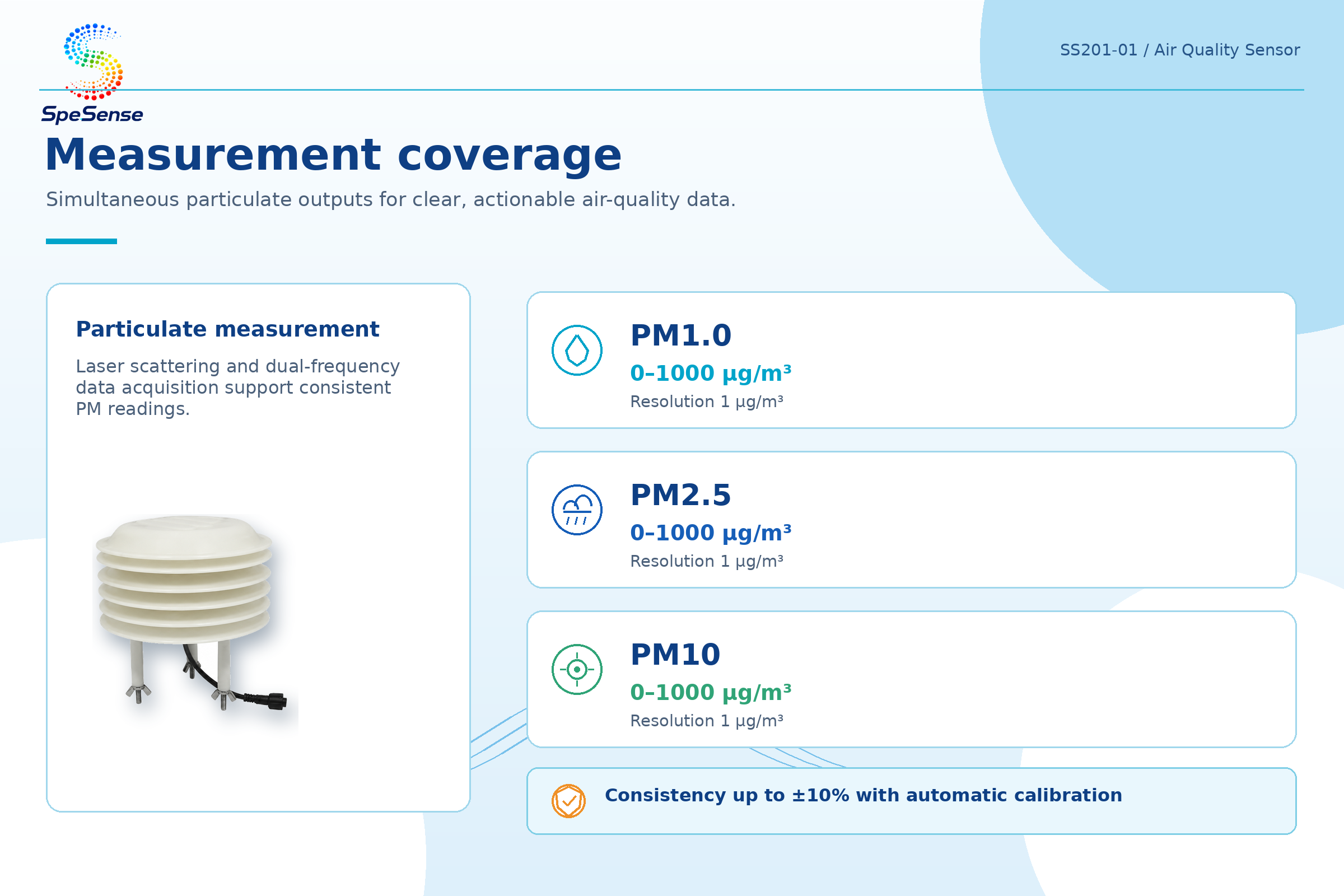

| Measuring range | PM2.5 / PM10 / PM1.0: 0-1000 ug/m3 |
| Resolution | PM2.5 / PM10 / PM1.0: 1 ug/m3 |
RS485 Version
| Item | Specification |

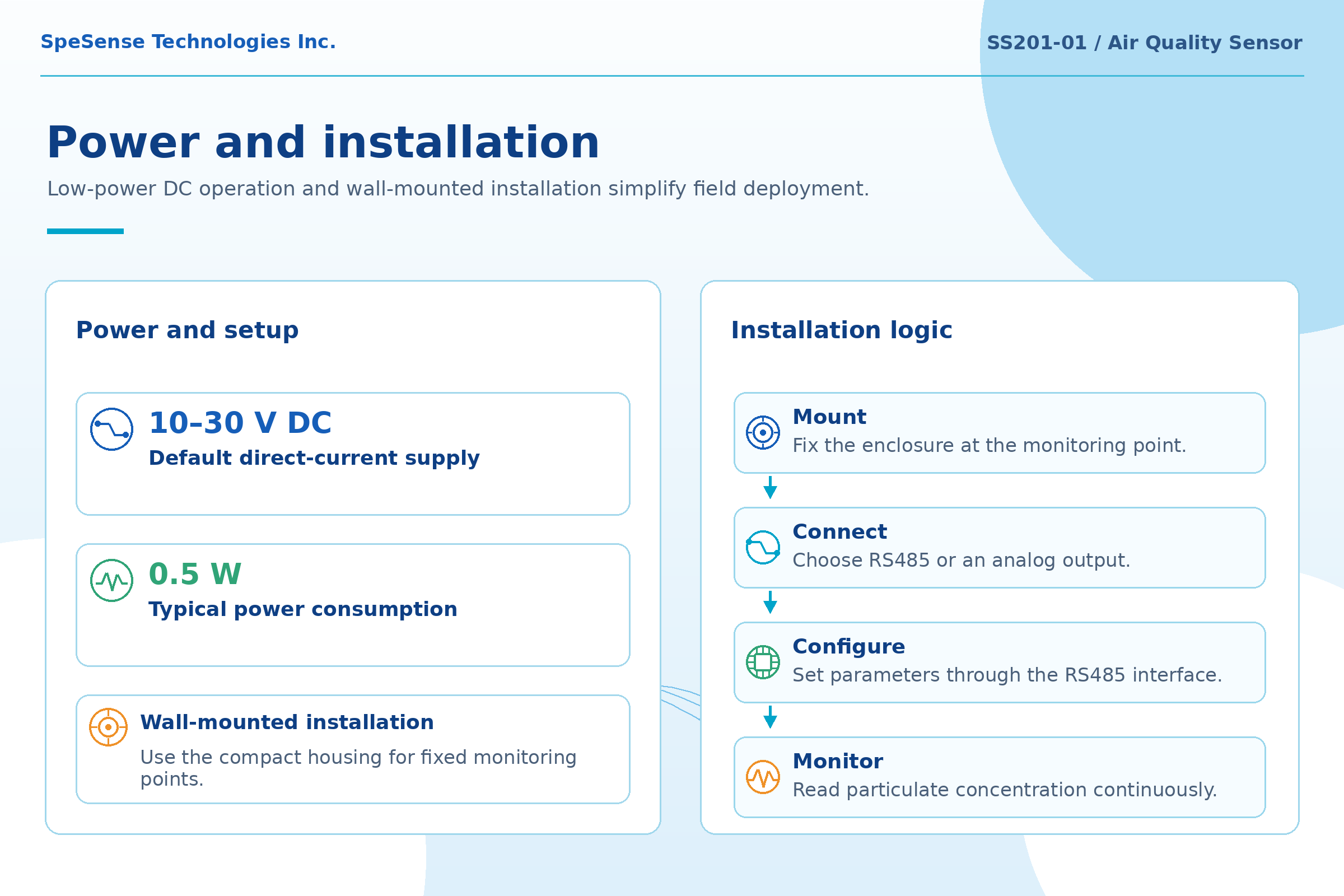

| Power supply | 10-30 V DC |
| Power consumption | 0.5 W |

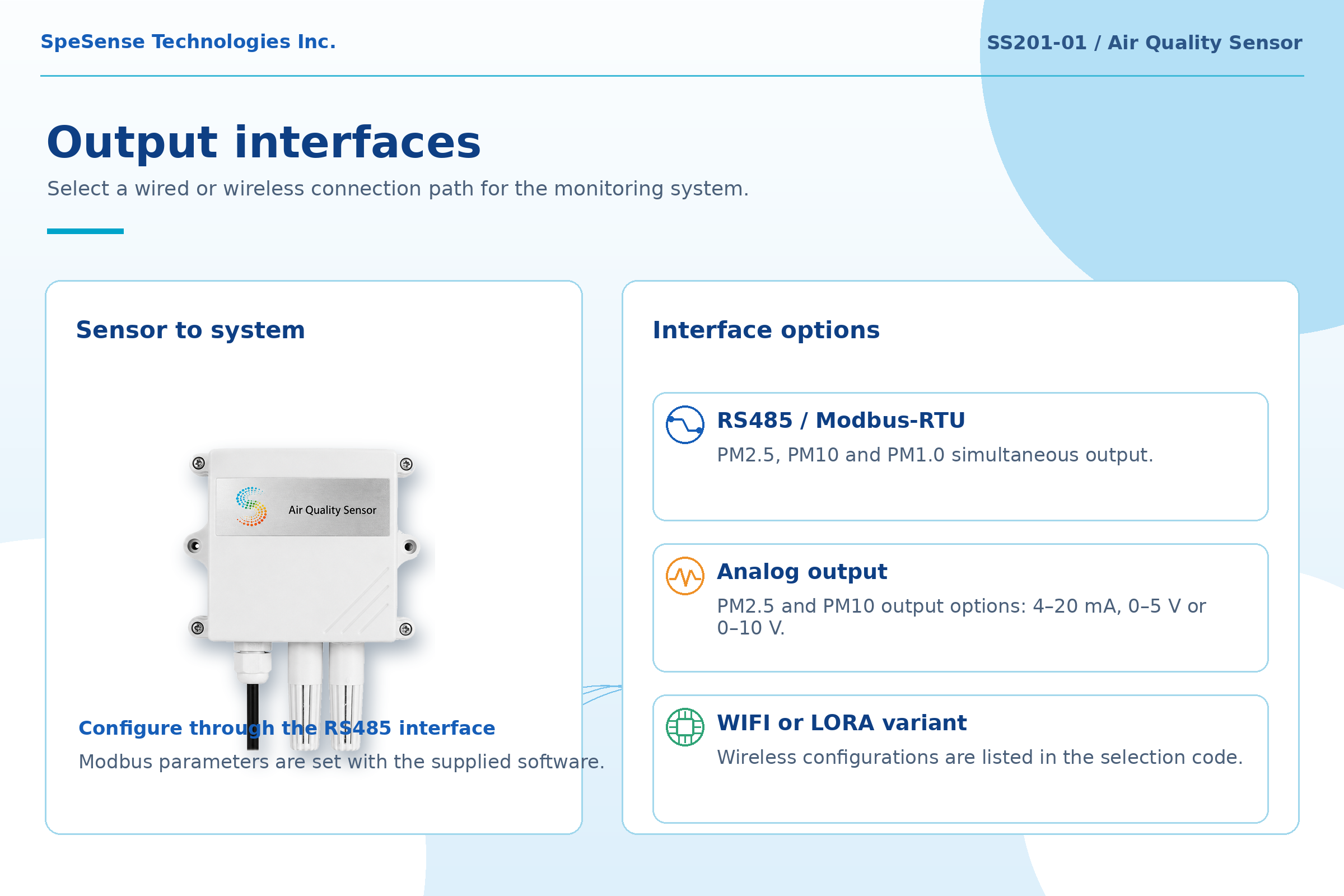

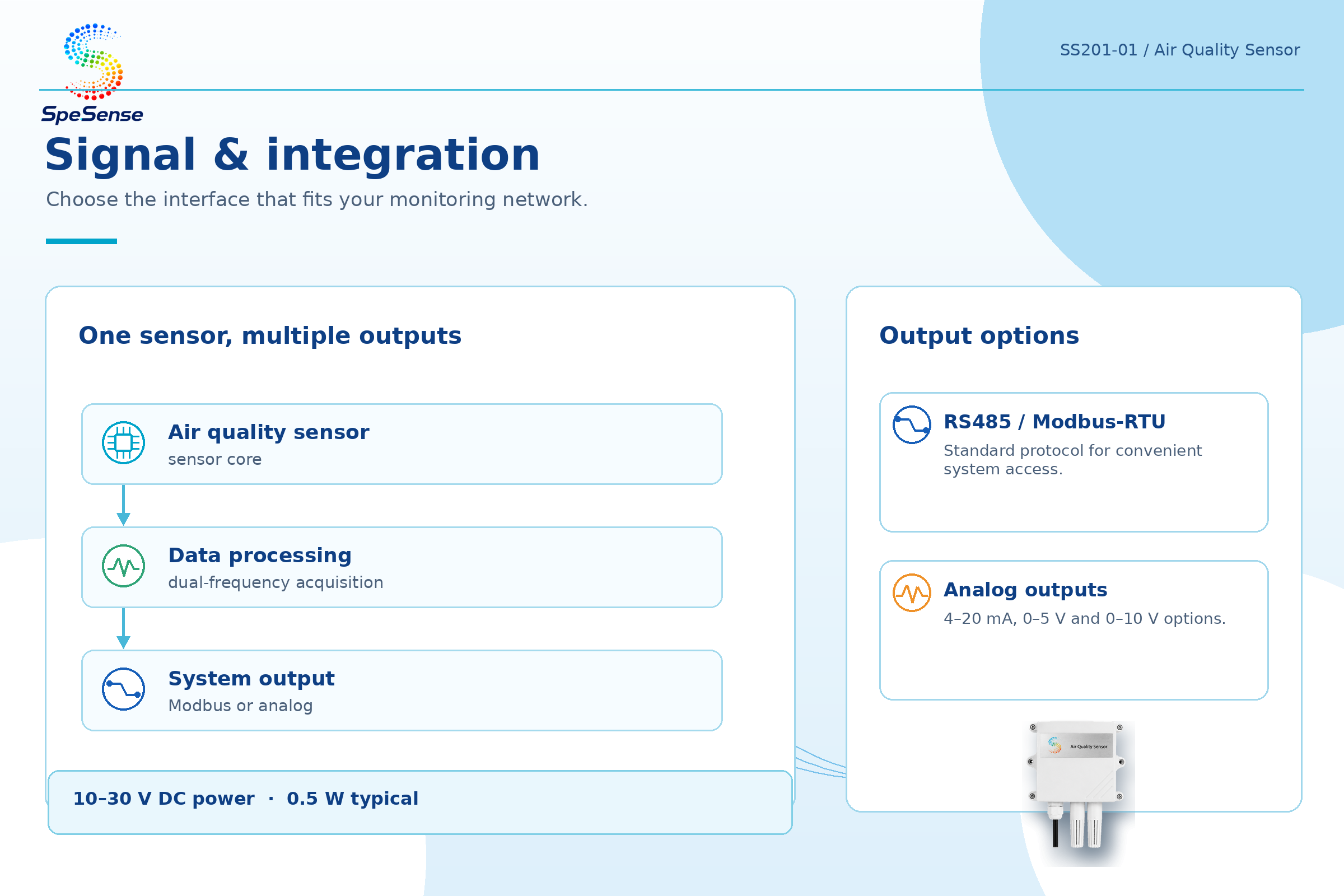

| Communication interface | RS485 Modbus protocol |
| Baud rate | 2400 / 4800 (default) / 9600; 8 data bits; no parity; 1 stop bit; default Modbus address 1 |
| Parameter setting | Configured through the RS485 interface using the provided configuration software |

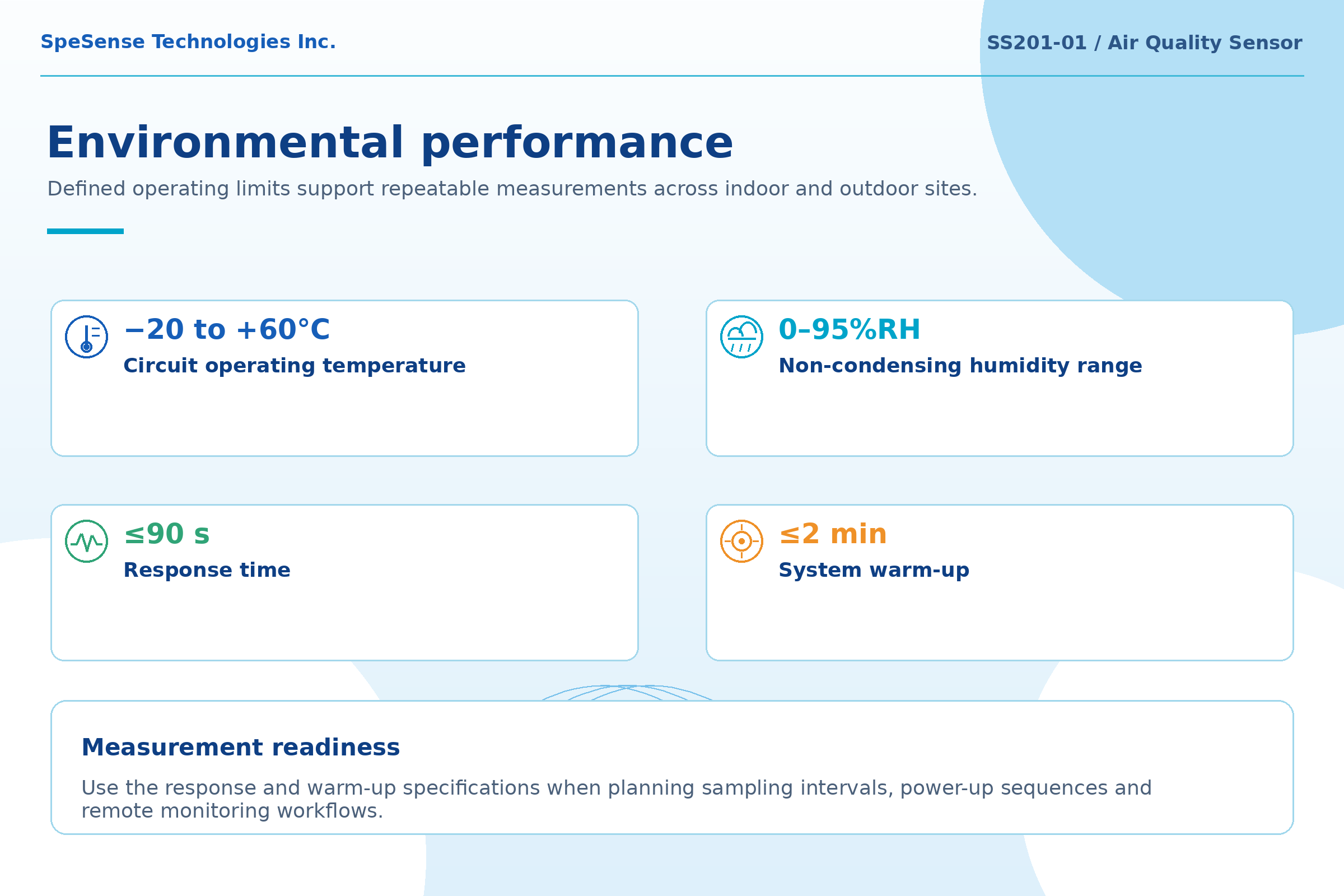

| Circuit operating environment | -20°C to +60°C; 0%RH to 95%RH, non-condensing |
| Resolution | PM2.5 / PM10 / PM1.0: 1 ug/m3; temperature: 0.1°C; humidity: 0.1%RH |
| Particle-counting efficiency | 50% @ 0.3 um; 98% @ >=0.5 um |
| PM2.5 accuracy | ±3%FS @ 100 ug/m3, 25°C, 50%RH |
| Temperature / humidity accuracy | A accuracy: ±2%RH and ±0.4°C; B accuracy (default): ±3%RH and ±0.5°C |
| Measurement ranges | Temperature: -40°C to +80°C; humidity: 0%RH to 100%RH |
| Response and warm-up | Response speed <=90 s; warm-up time <=2 min |

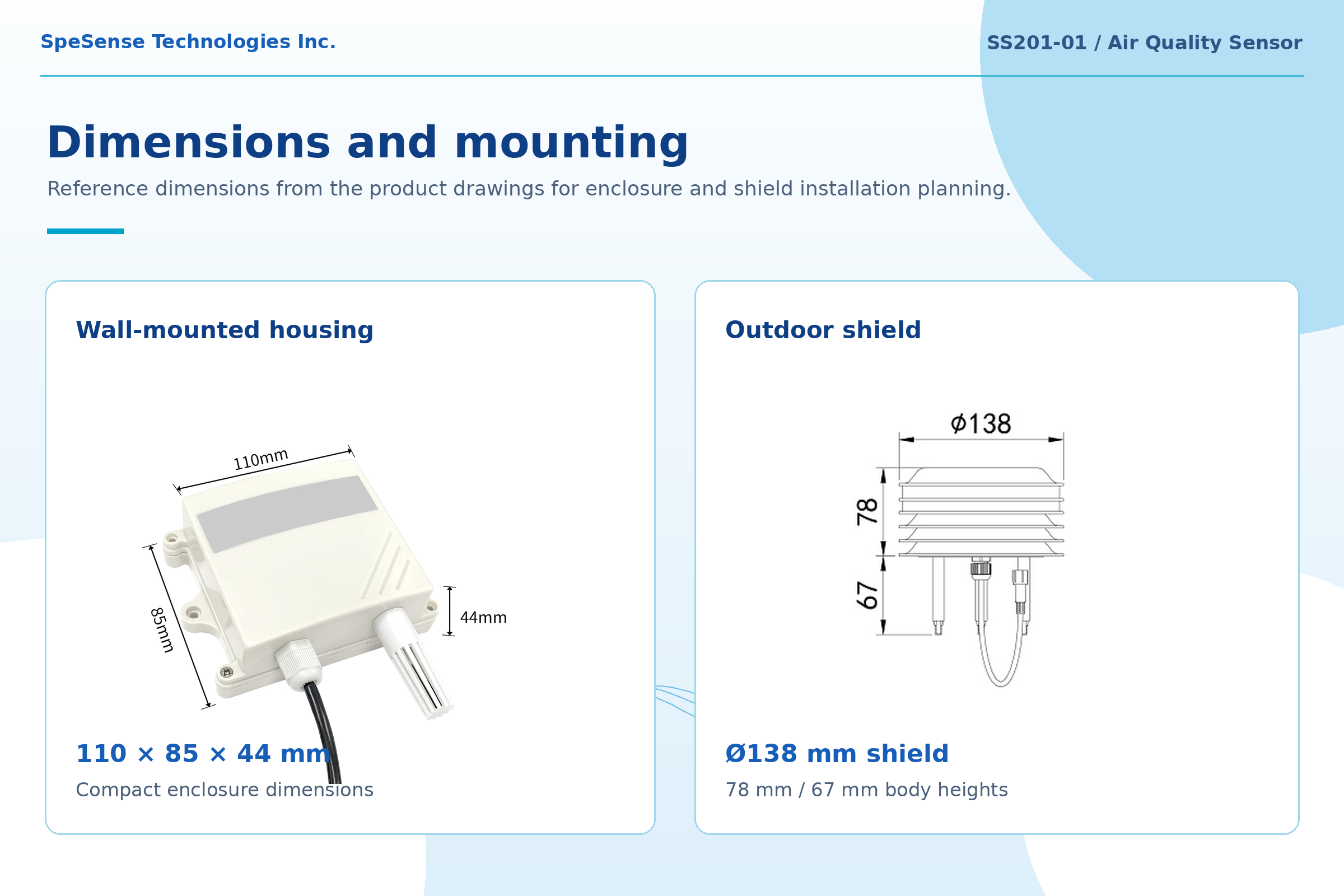

| Installation method | Wall-mounted |
