SS203-04

Online Infrared Temperature Sensor

Product Highlights

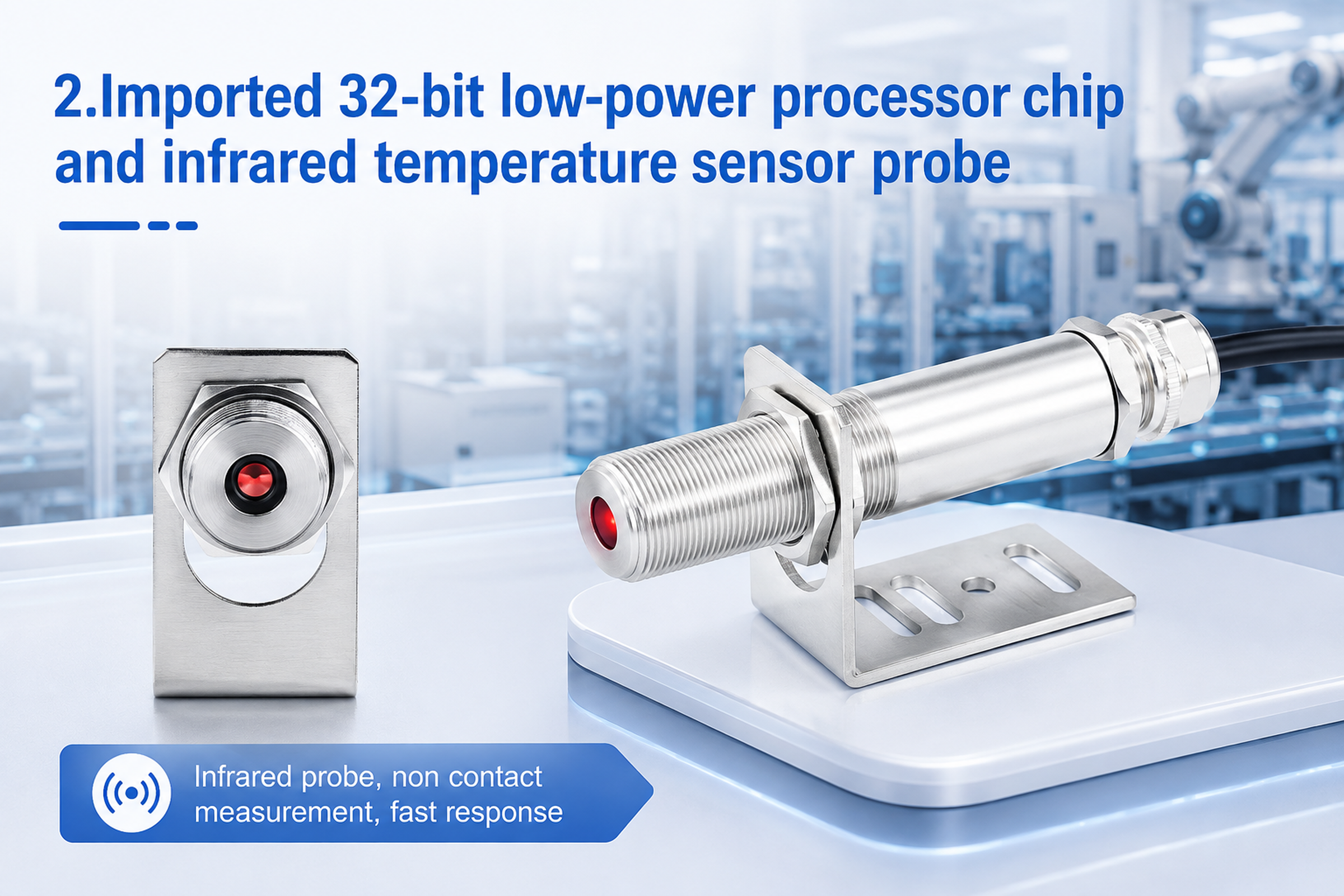

● Non-contact measurement keeps the target undisturbed.
● Fast response, high sensitivity and high accuracy.

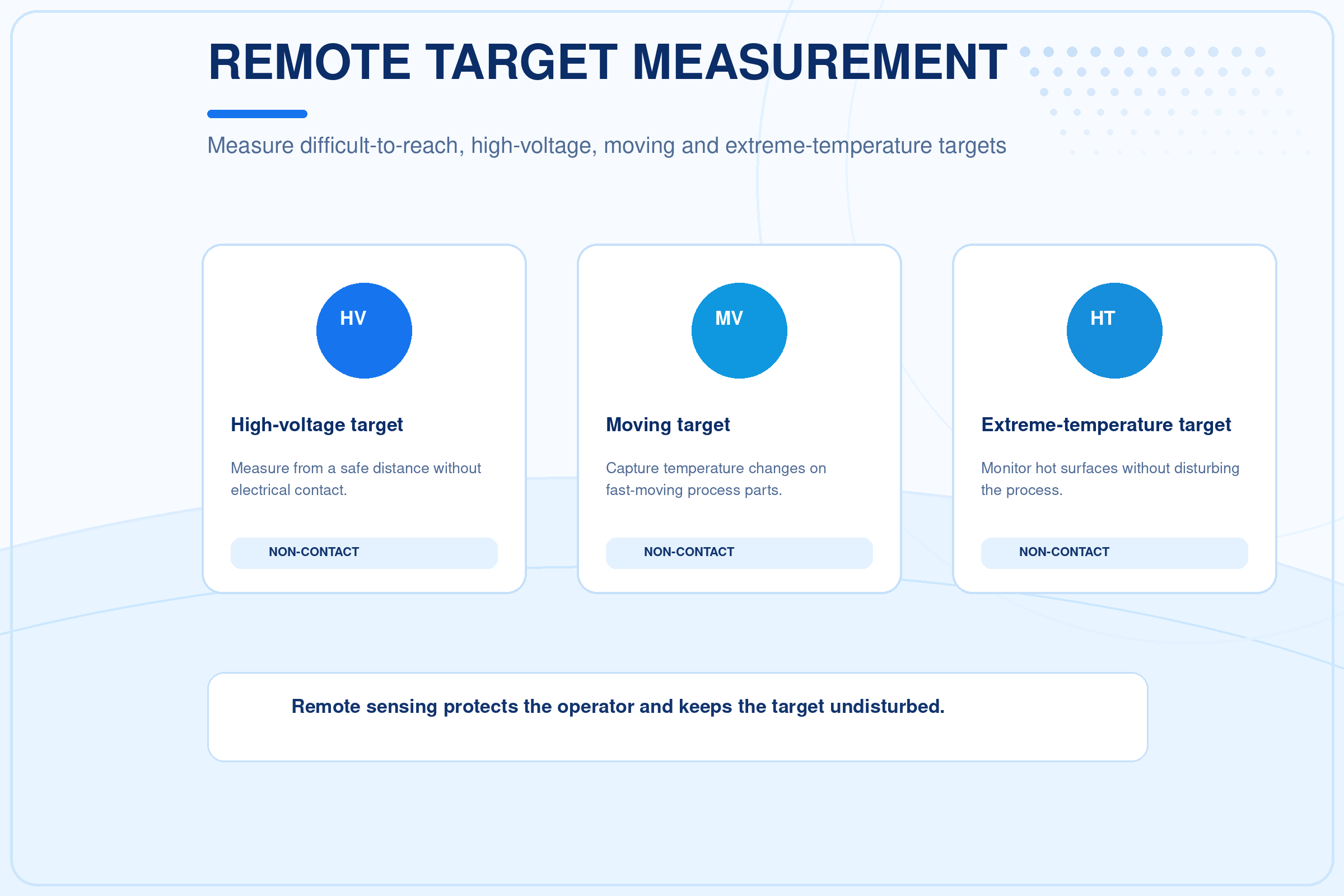

● For high/low temperatures, high voltage and high-speed operations.

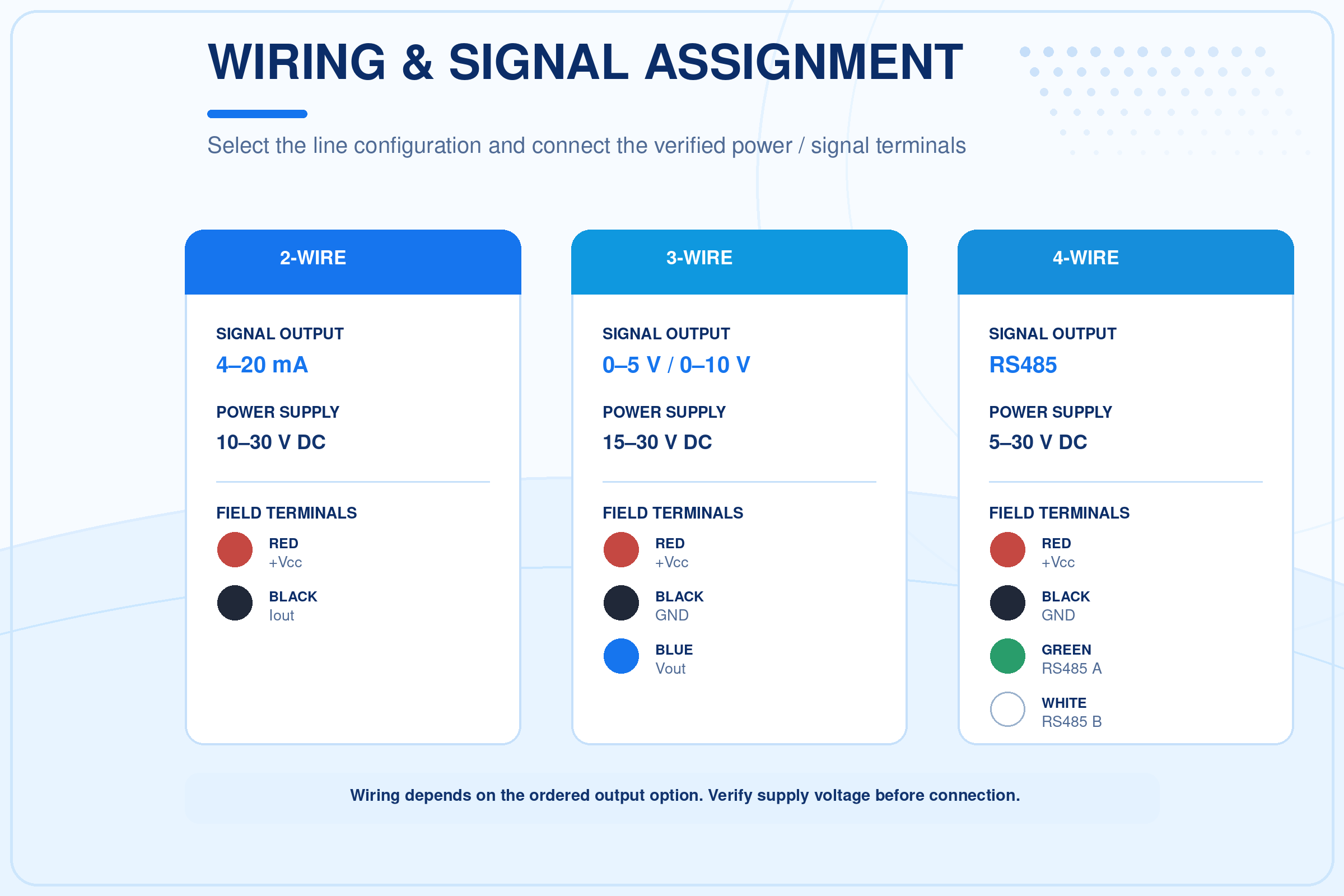

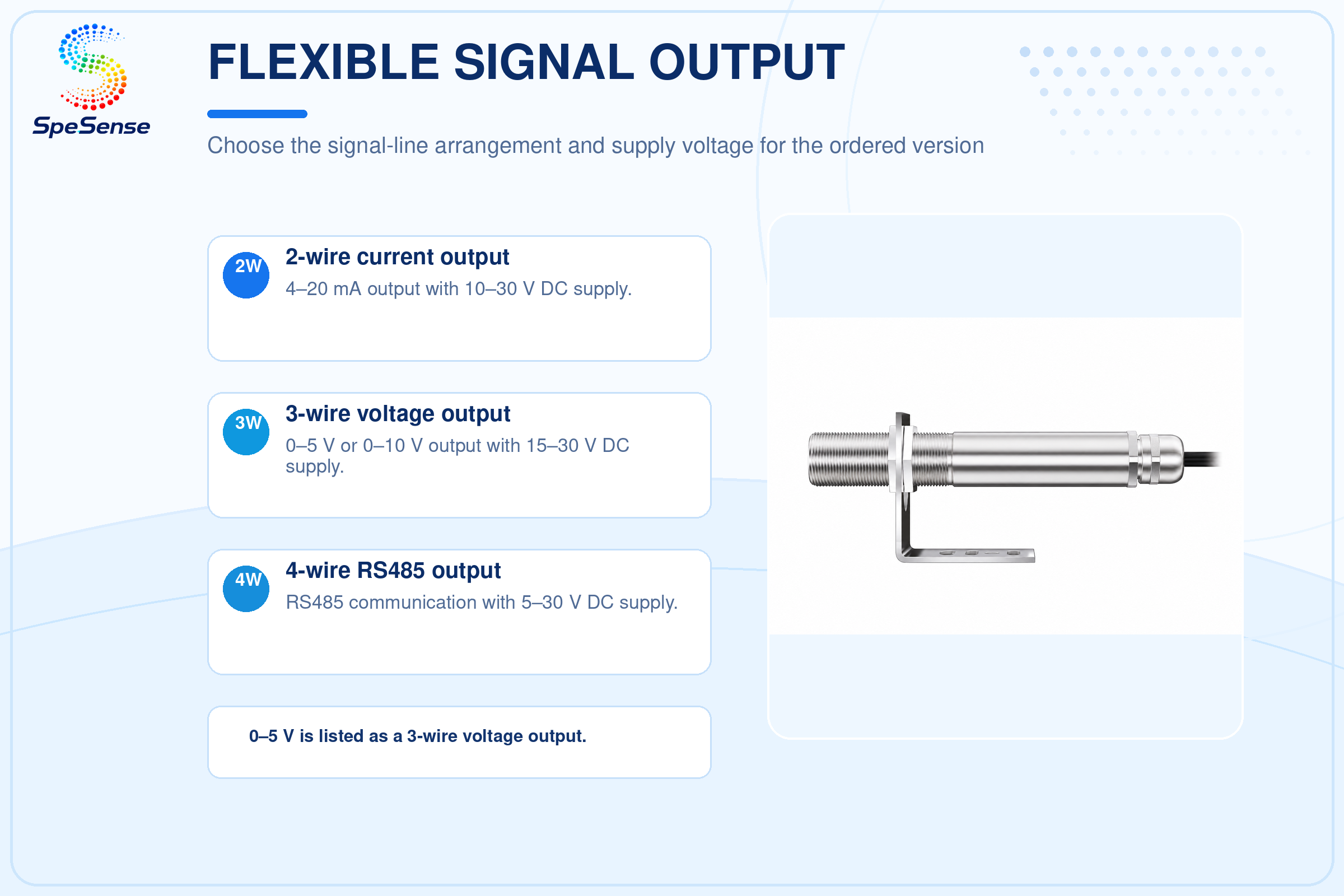

● 2-wire, 3-wire and 4-wire output/power configurations.

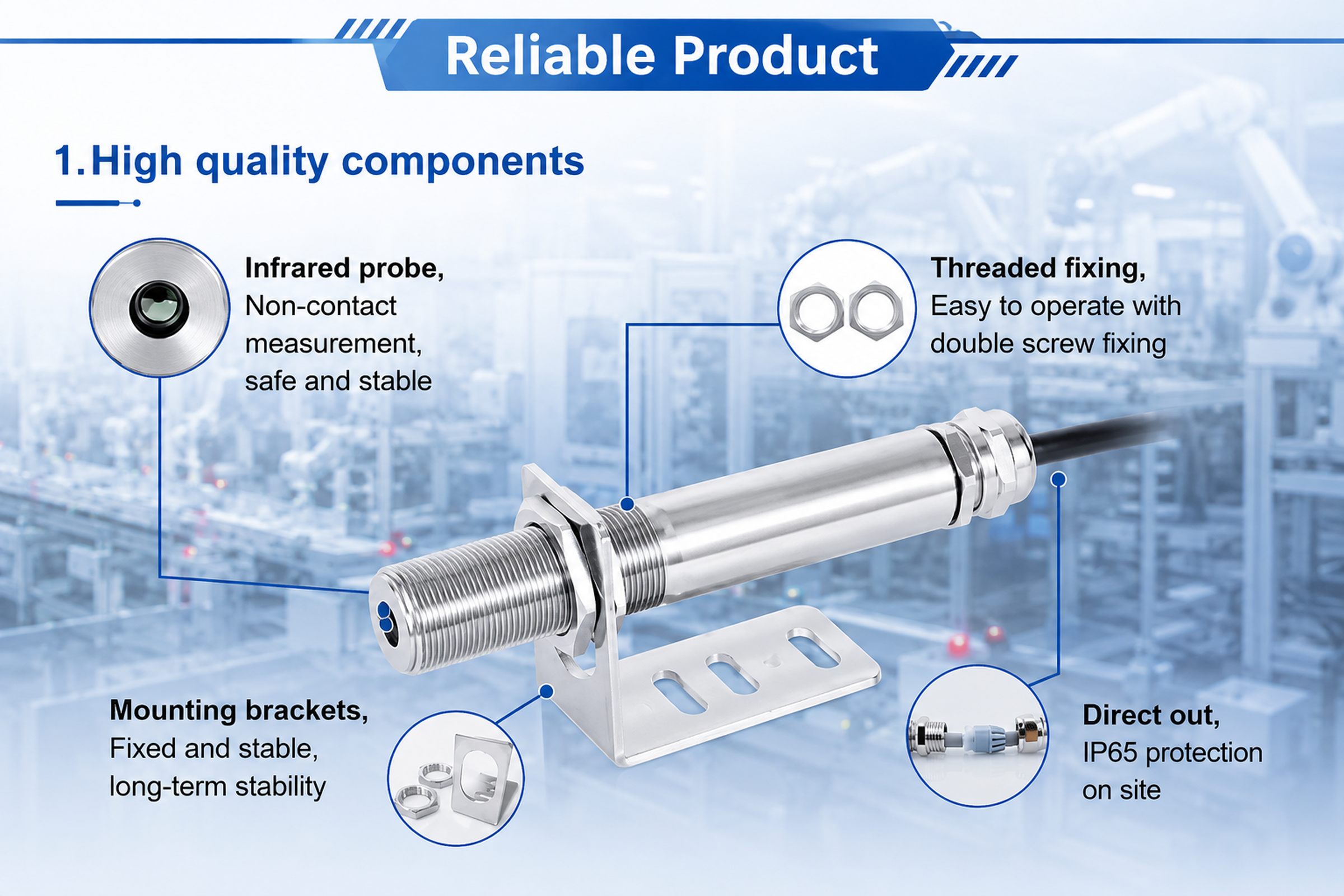

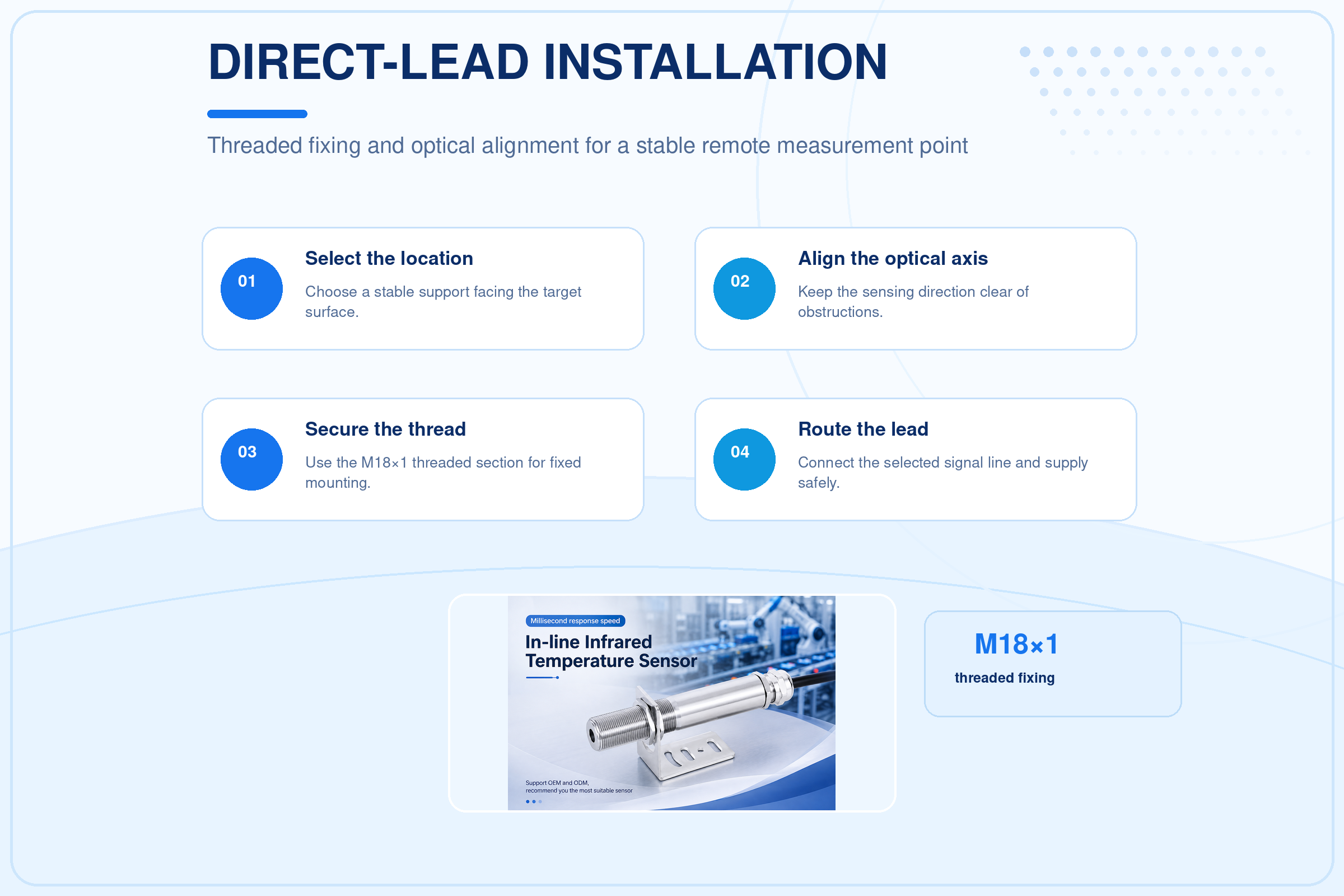

● Easy installation; range and output can be customized.
Download PDF

Product Overview

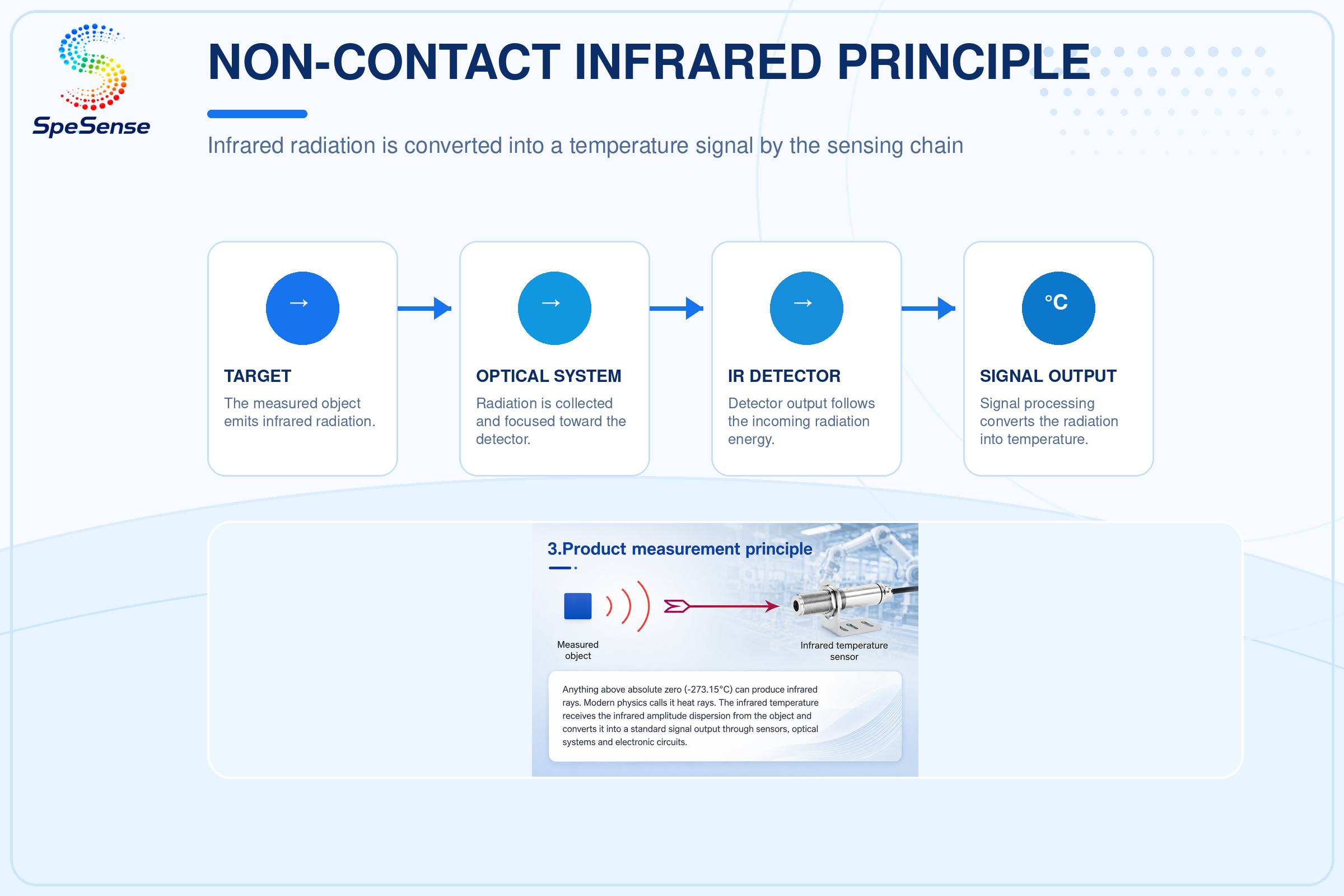

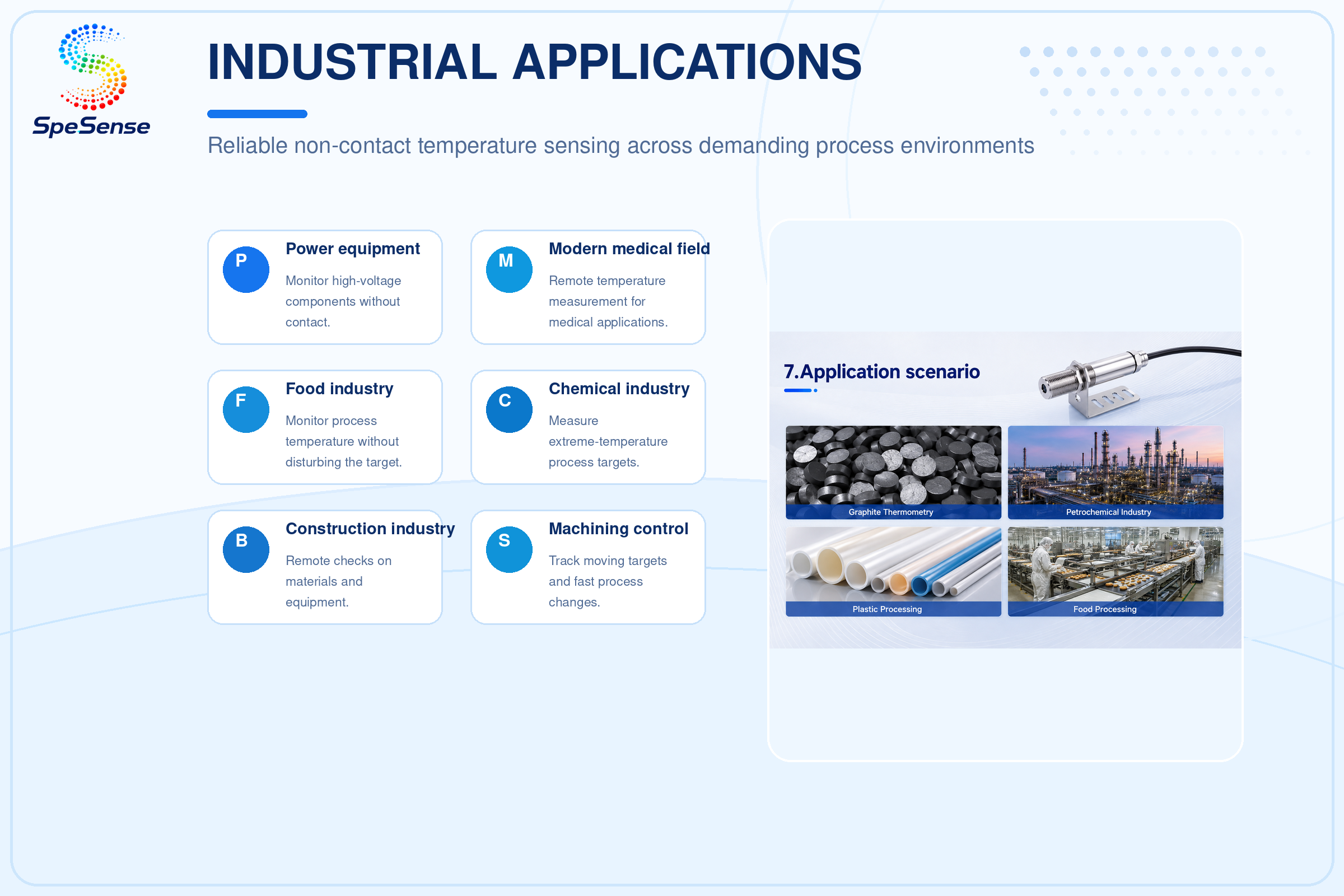

The SpeSense SS203-04 Online Infrared Temperature Sensor is designed for non-contact temperature measurement in industrial and environmental monitoring applications. Infrared sensing allows surface temperature monitoring without direct physical contact, making it useful for moving, hot or difficult-to-access targets where compatible with the sensor's measurement specifications. Potential applications include industrial process monitoring, equipment temperature observation and automated temperature data acquisition systems.
ItemSpecification

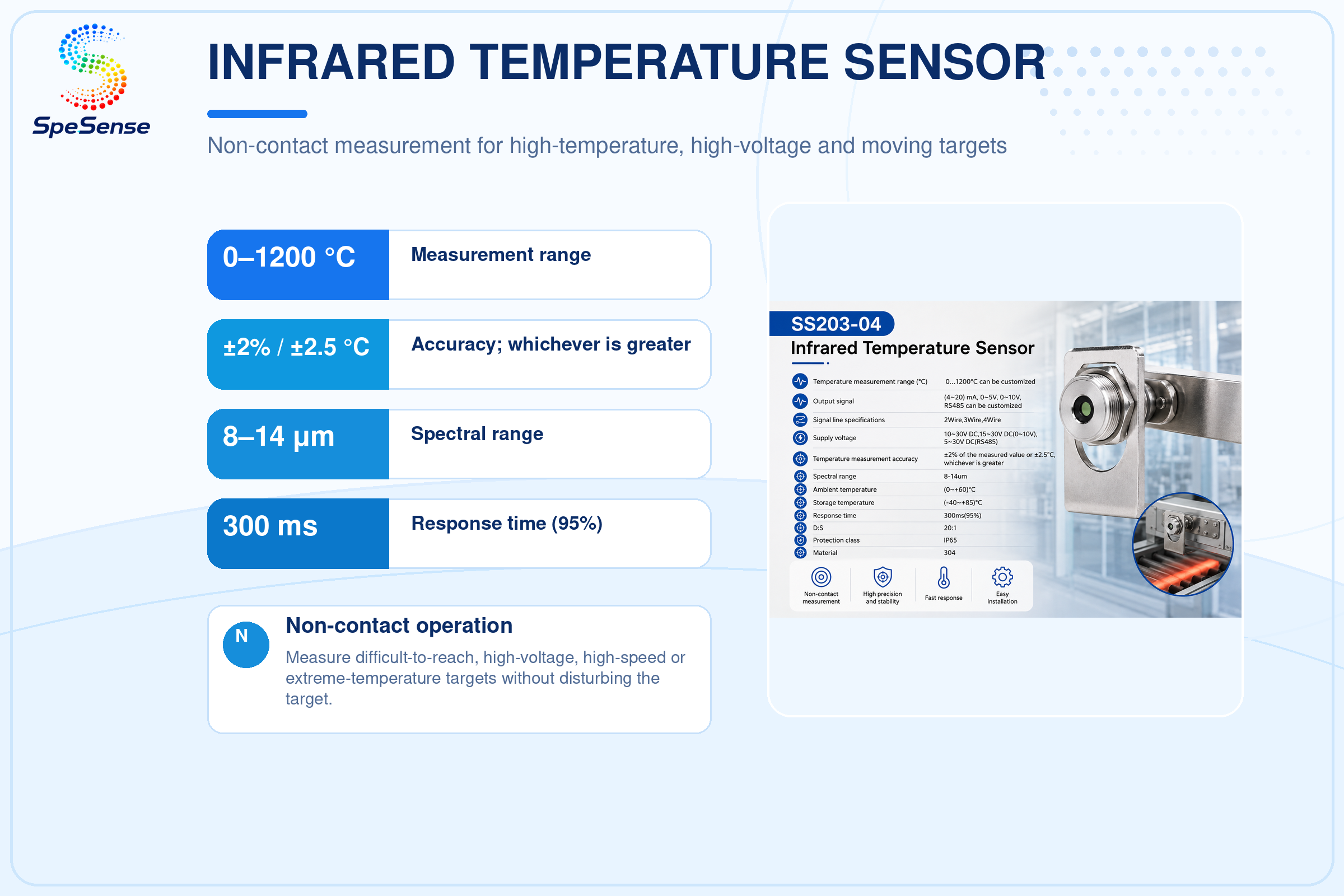

Temperature Measurement Range0–1200 °C, customizable
Temperature Measurement Accuracy±2% of measured value or ±2.5 °C, whichever is greater

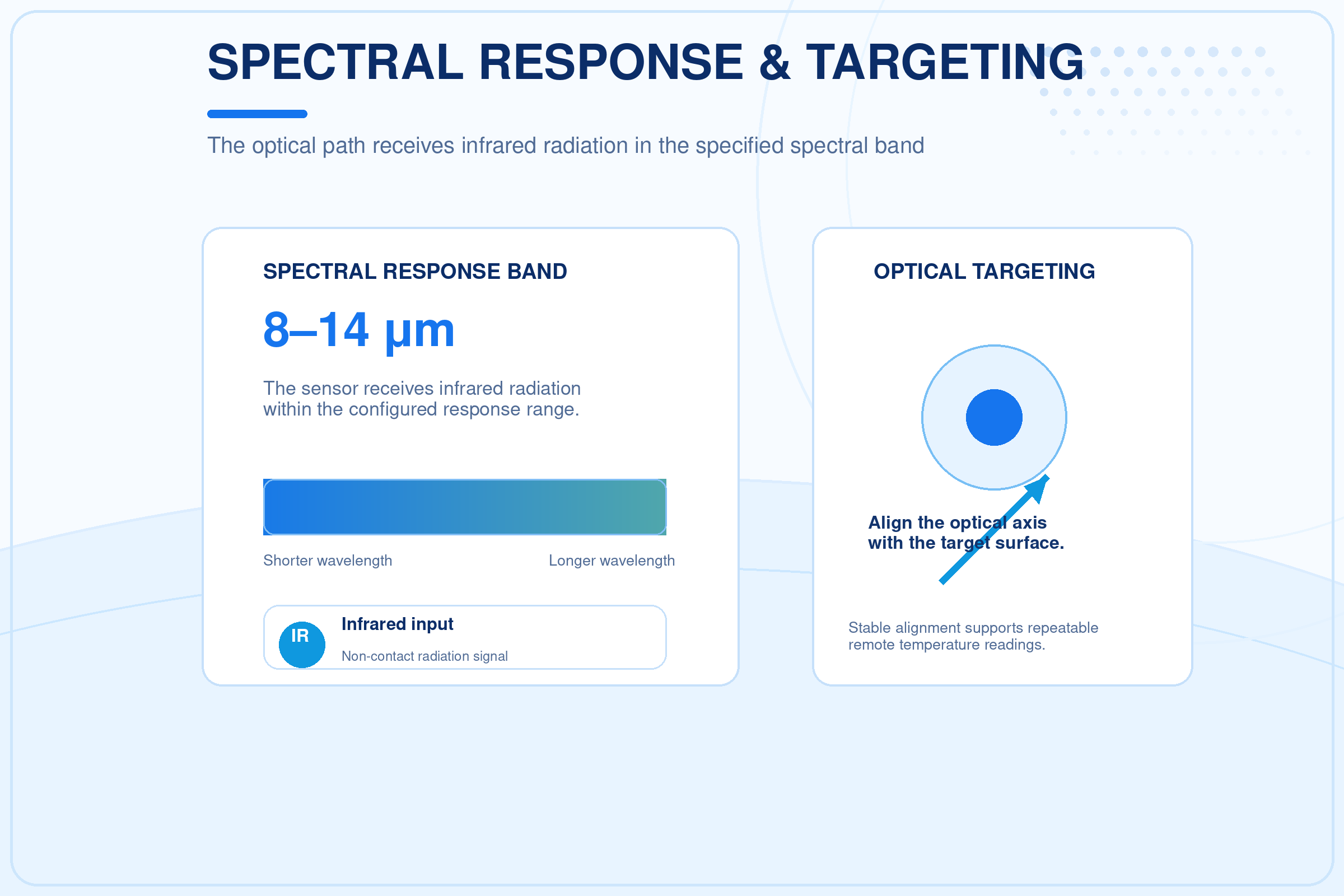

Spectral Range8–14 μm

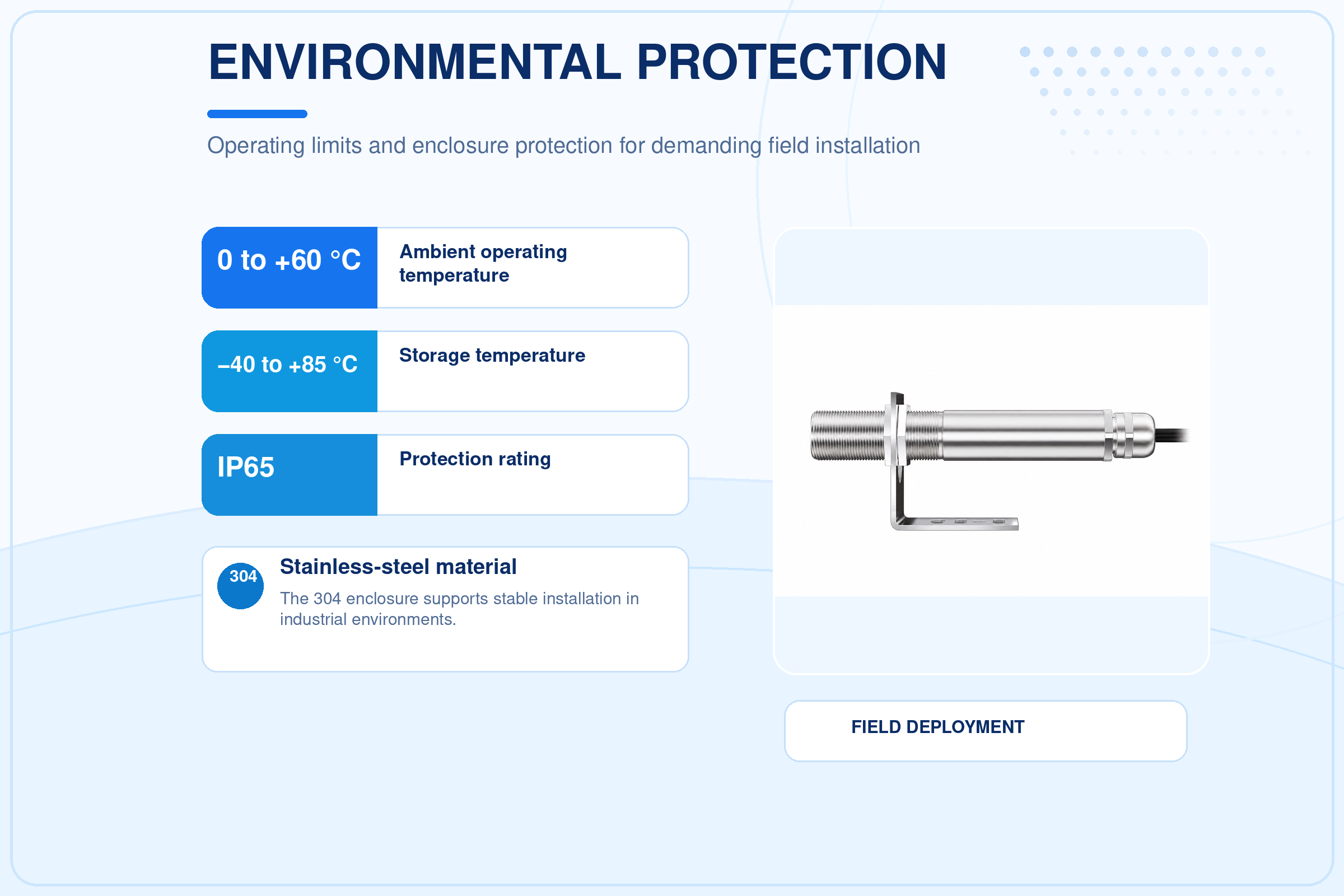

Ambient Temperature0 to +60 °C
Storage Temperature−40 to +85 °C

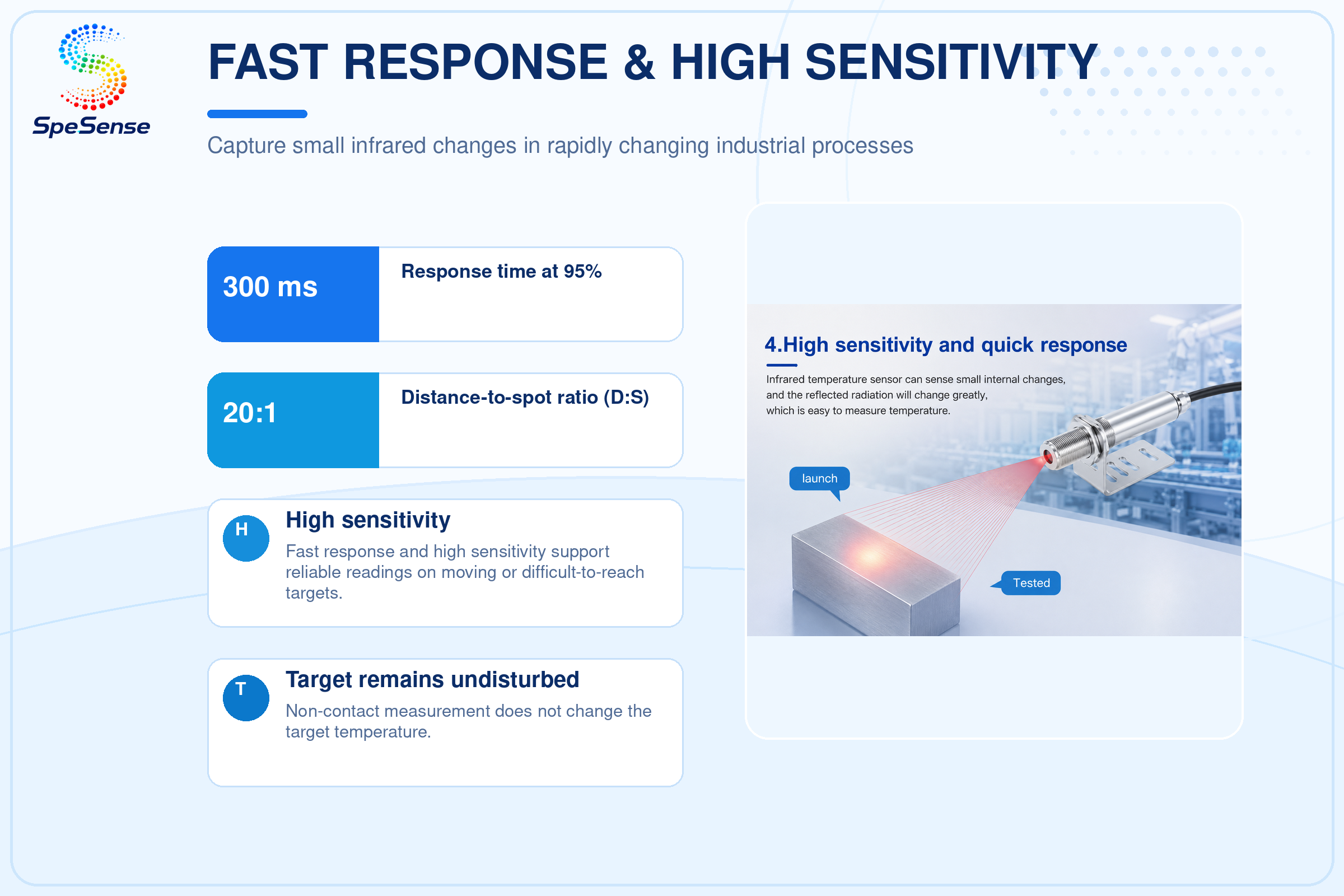

Response Time300 ms (95%)
Distance-to-Spot Ratio (D:S)20:1
Protection LevelIP65
Material304
