SS204-02
Soil Sensor

SS204-02

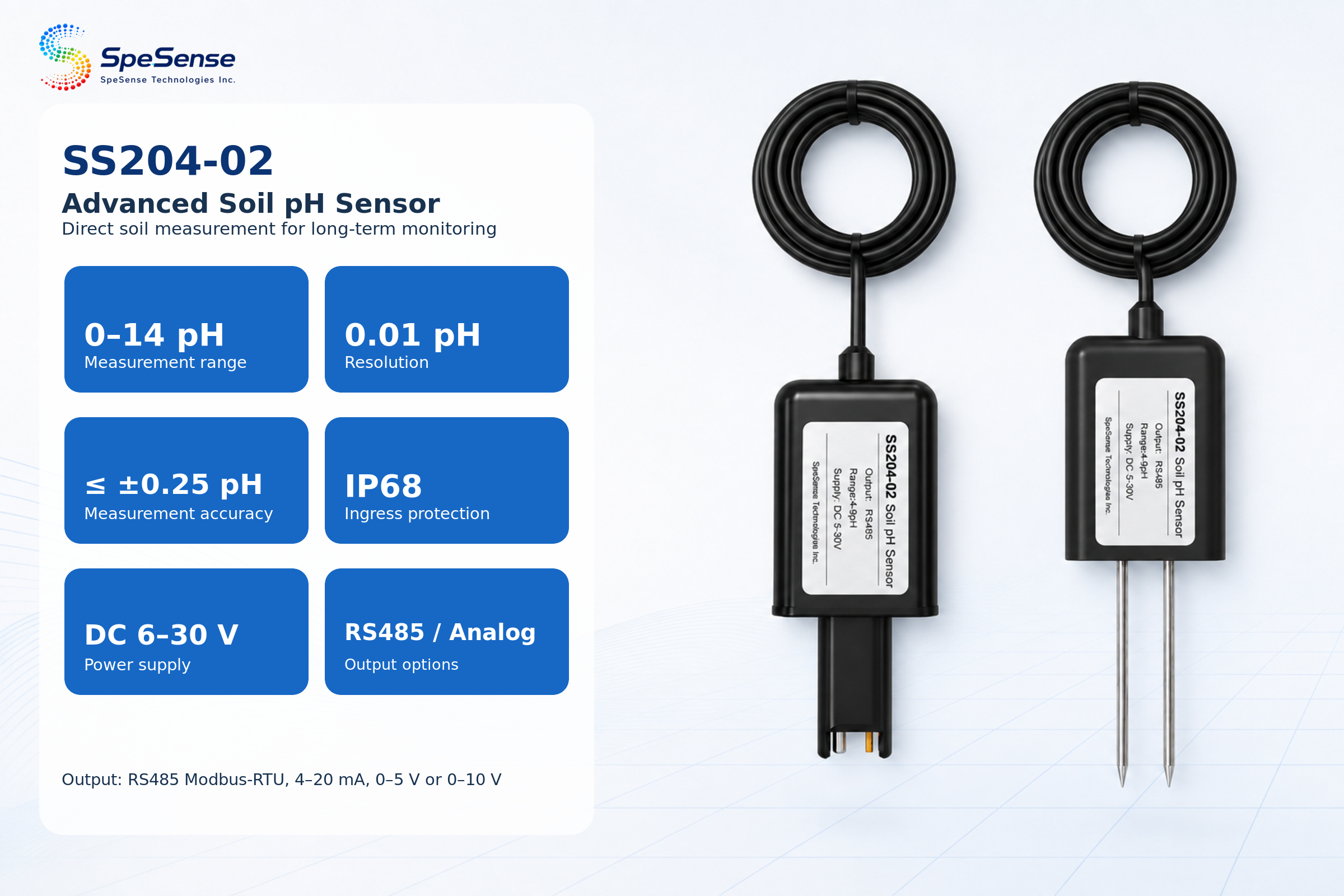

Advanced Soil pH Sensor

Product Highlights

● Low threshold,few steps,rapid measurement and no reagent requirement.

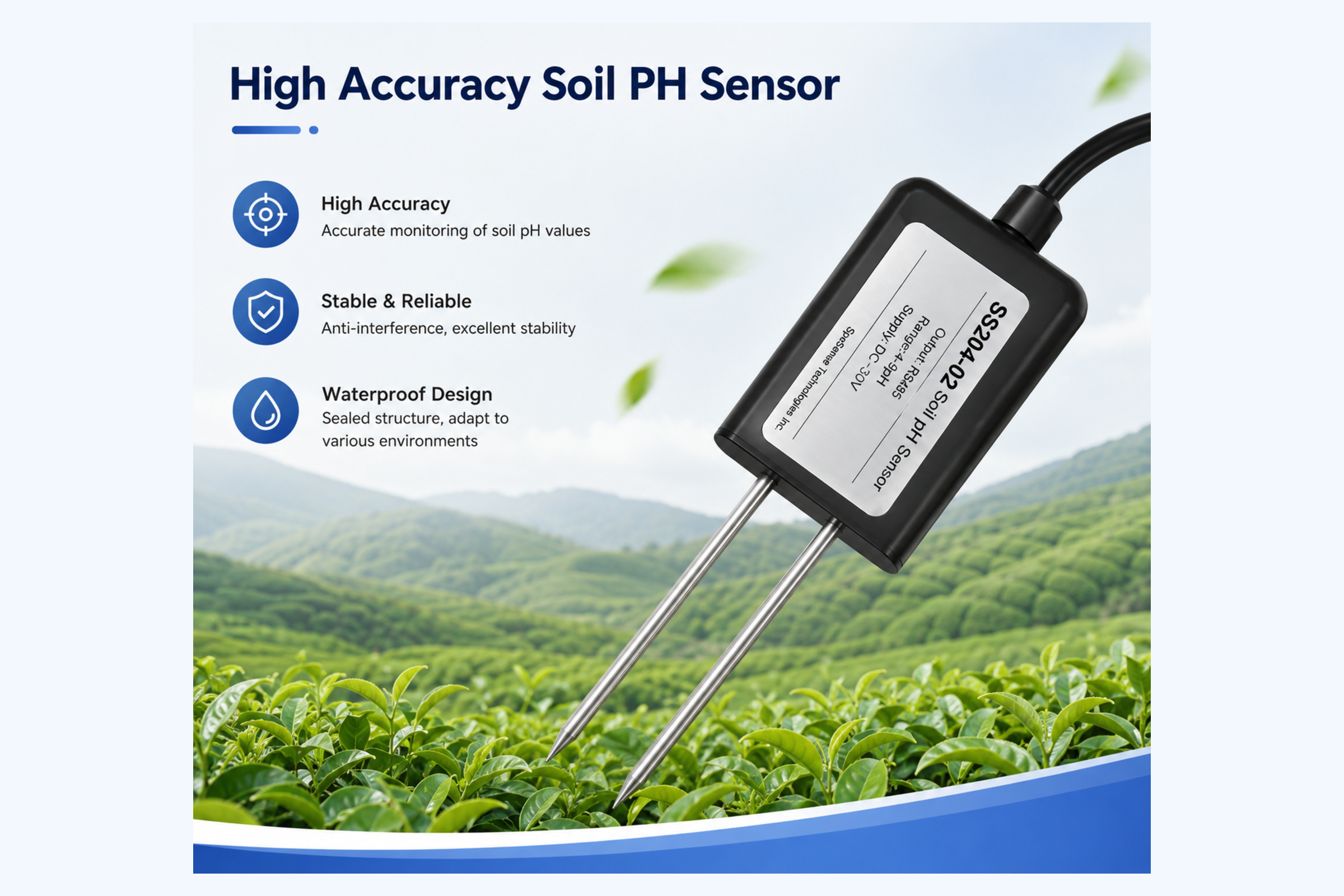

● High measurement accuracy,fast response and good interchangeability.
● Specially treated alloy electrode resists strong external impact and damage.

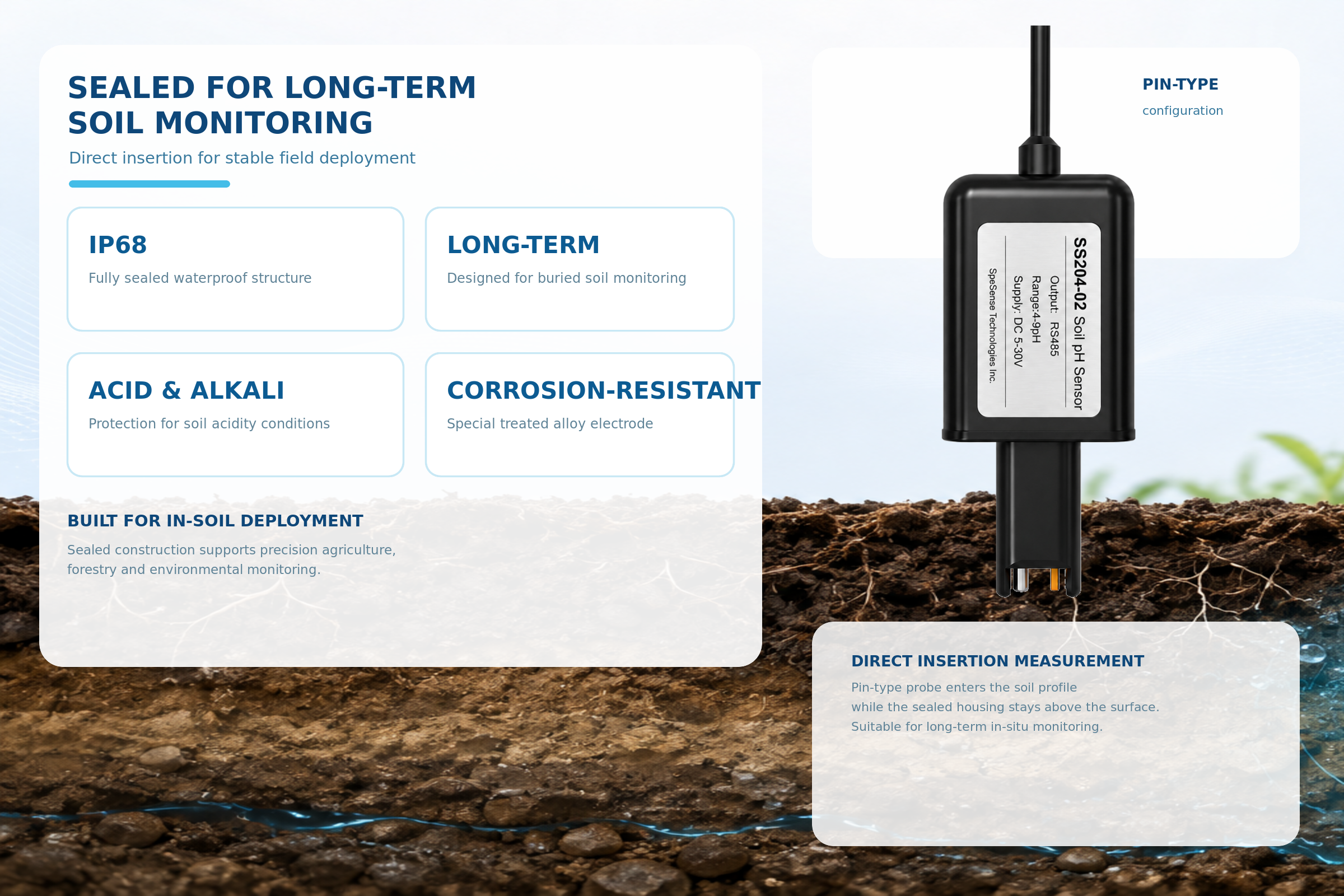

● Fully sealed and acid-and alkali-resistant for long-term buried monitoring.

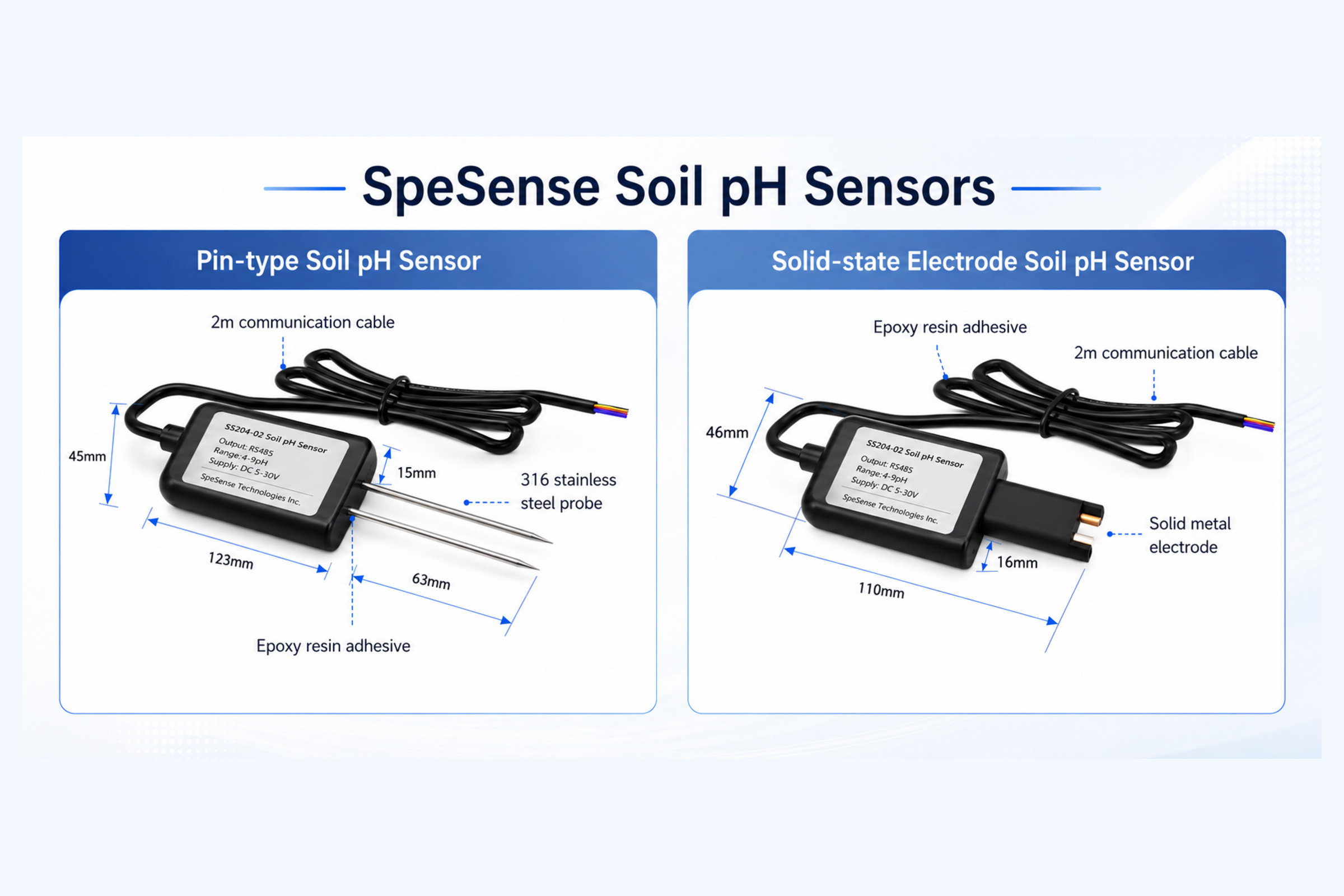

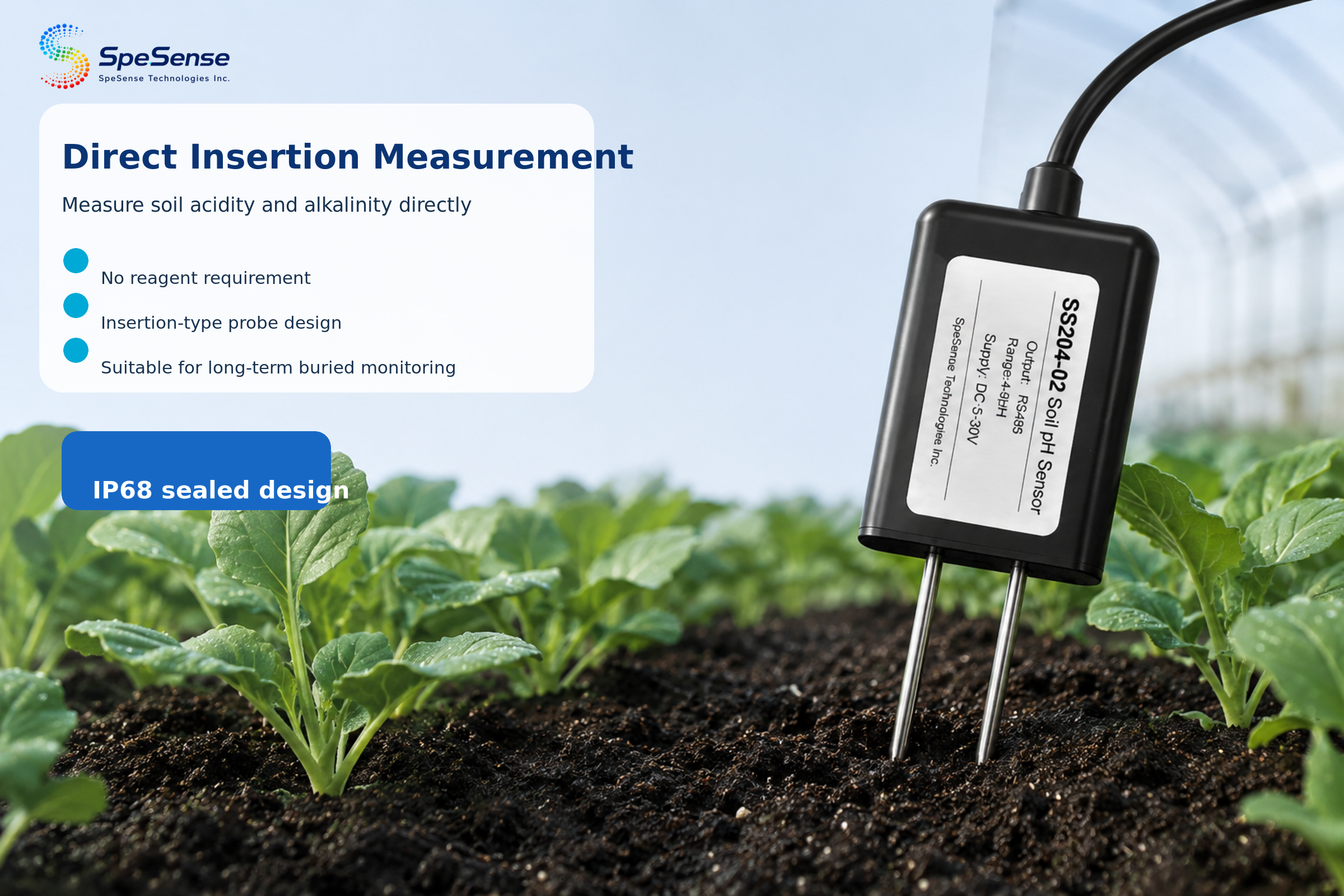

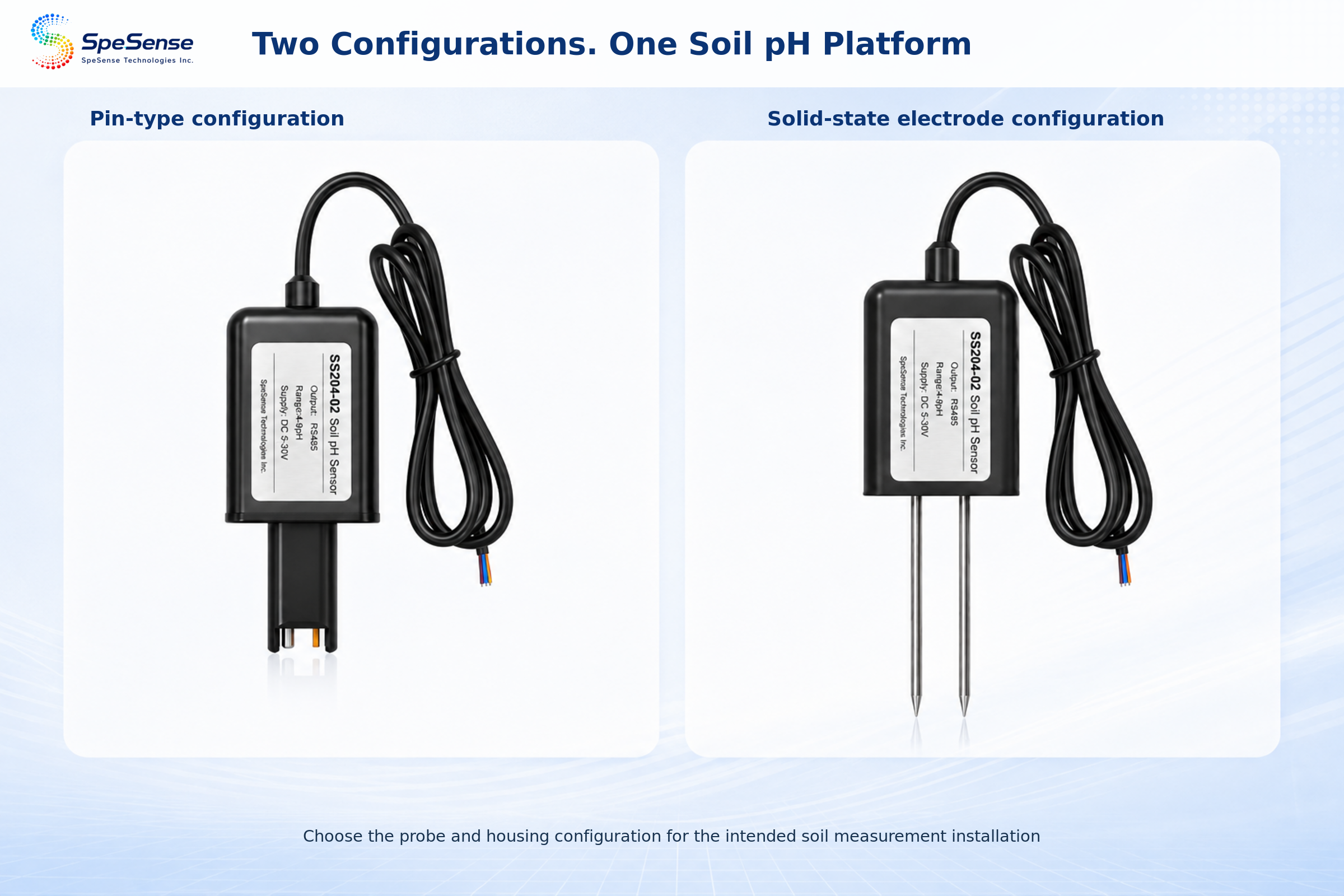

● Insertion-type probe design supports accurate and reliable measurement.
Download PDF

Product Overview

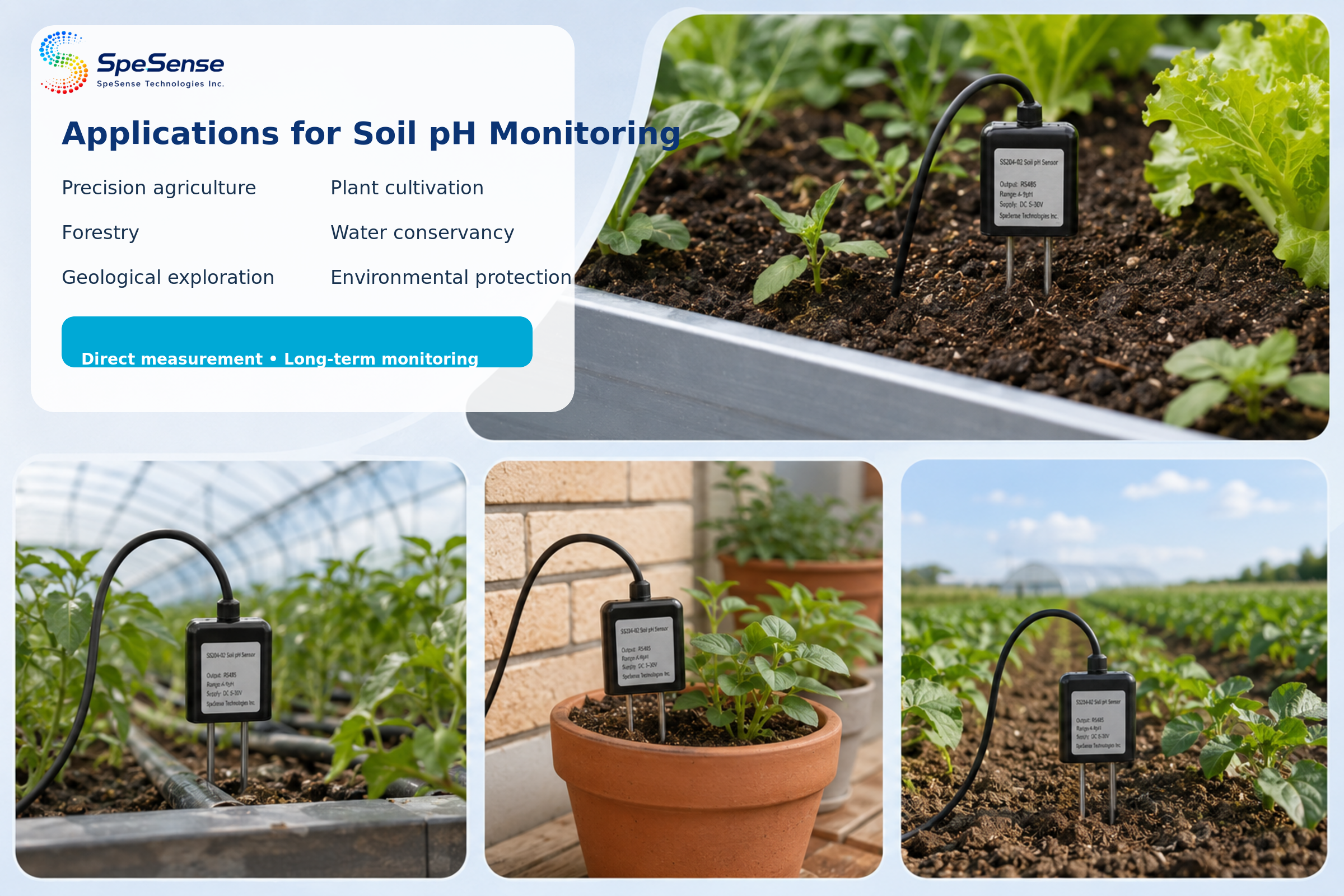

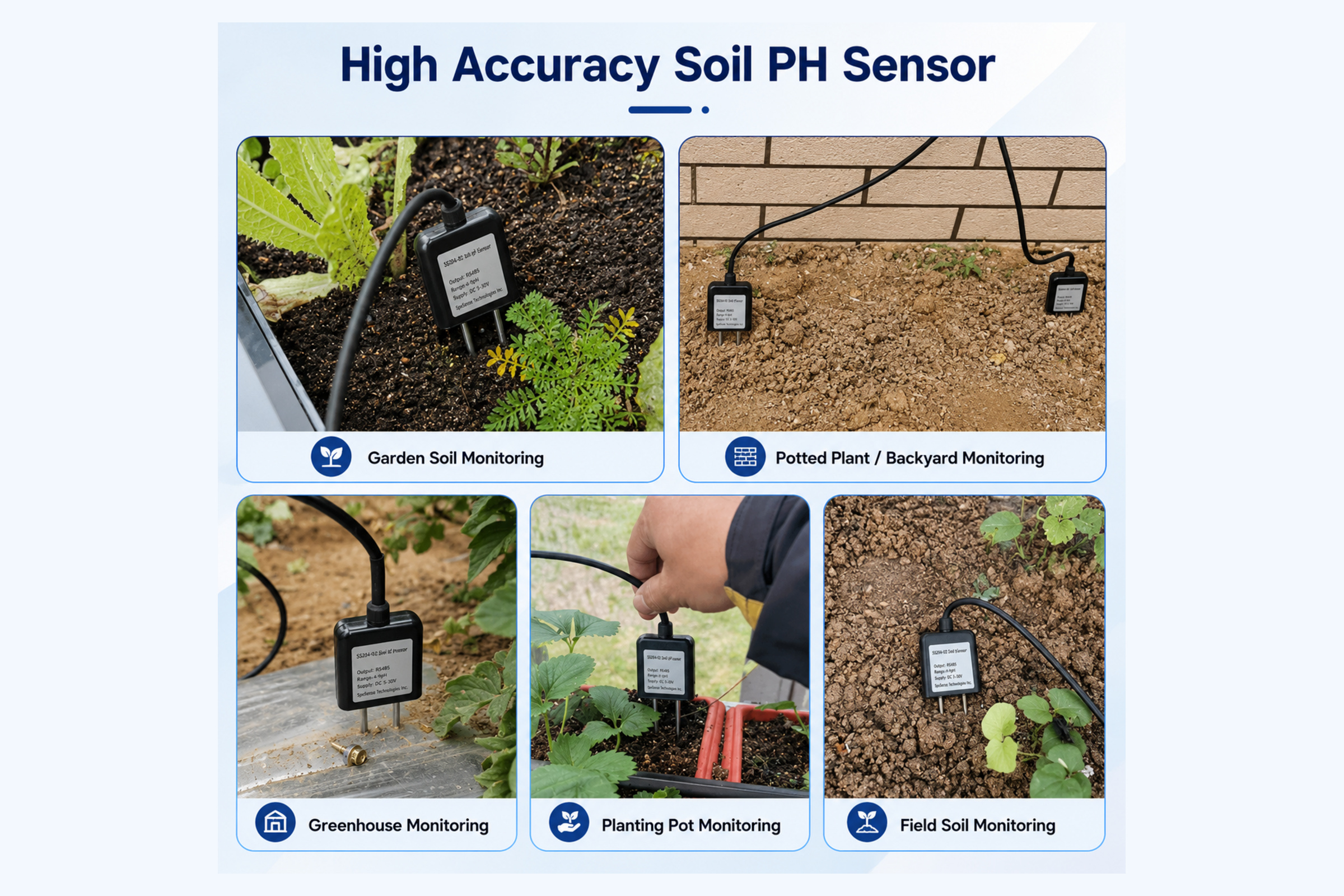

The SpeSense SS204-02 Advanced Soil pH Sensor is designed for monitoring soil acidity and alkalinity in agricultural, horticultural and environmental applications. Soil pH data helps users evaluate growing conditions, guide soil amendment decisions and support crop management. The sensor can be integrated into smart agriculture systems, greenhouse monitoring networks and field data acquisition platforms that require soil pH information for soil assessment and agricultural research.

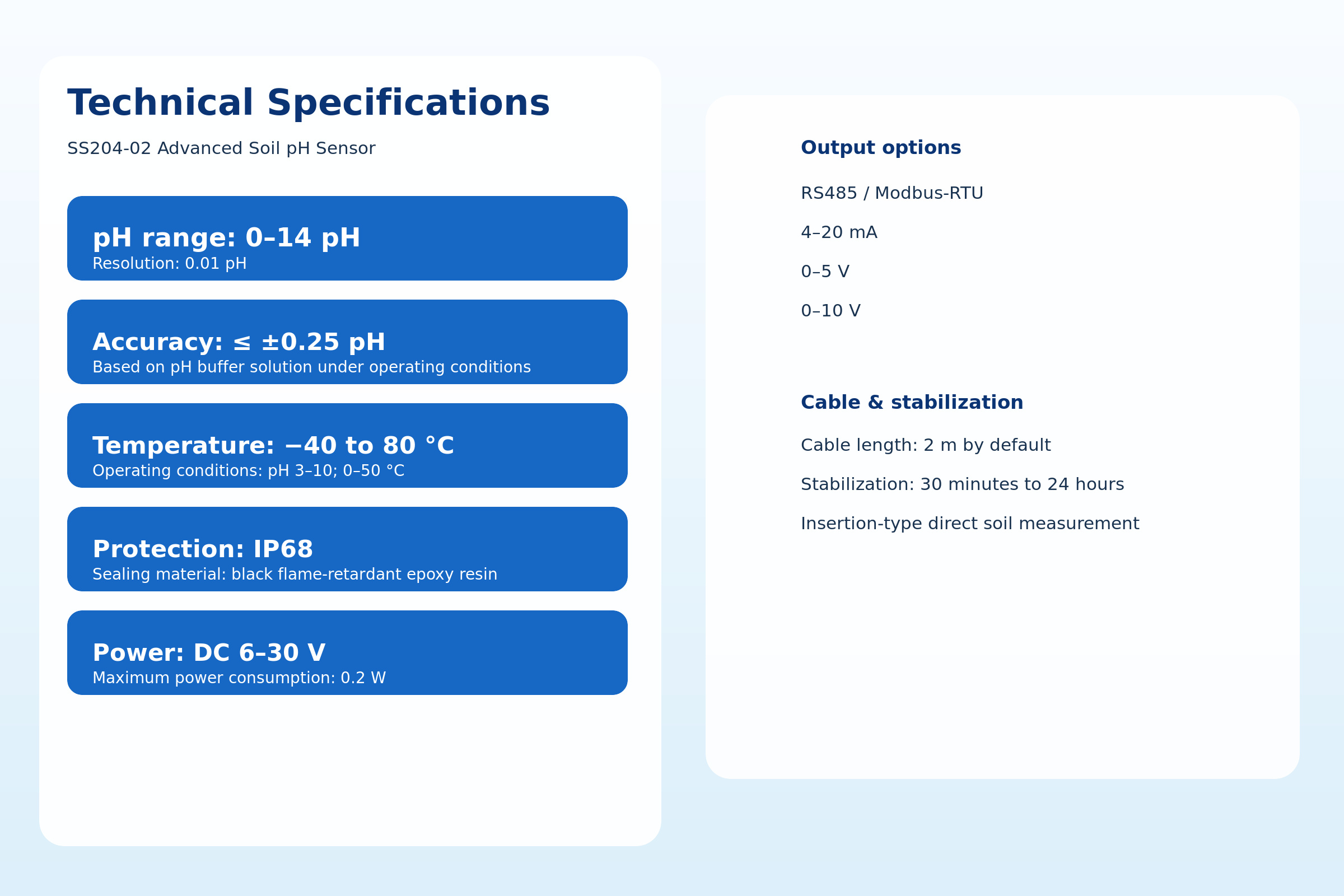

ItemSpecification
Power SupplyDC 6–30 V
Maximum Power Consumption0.2 W

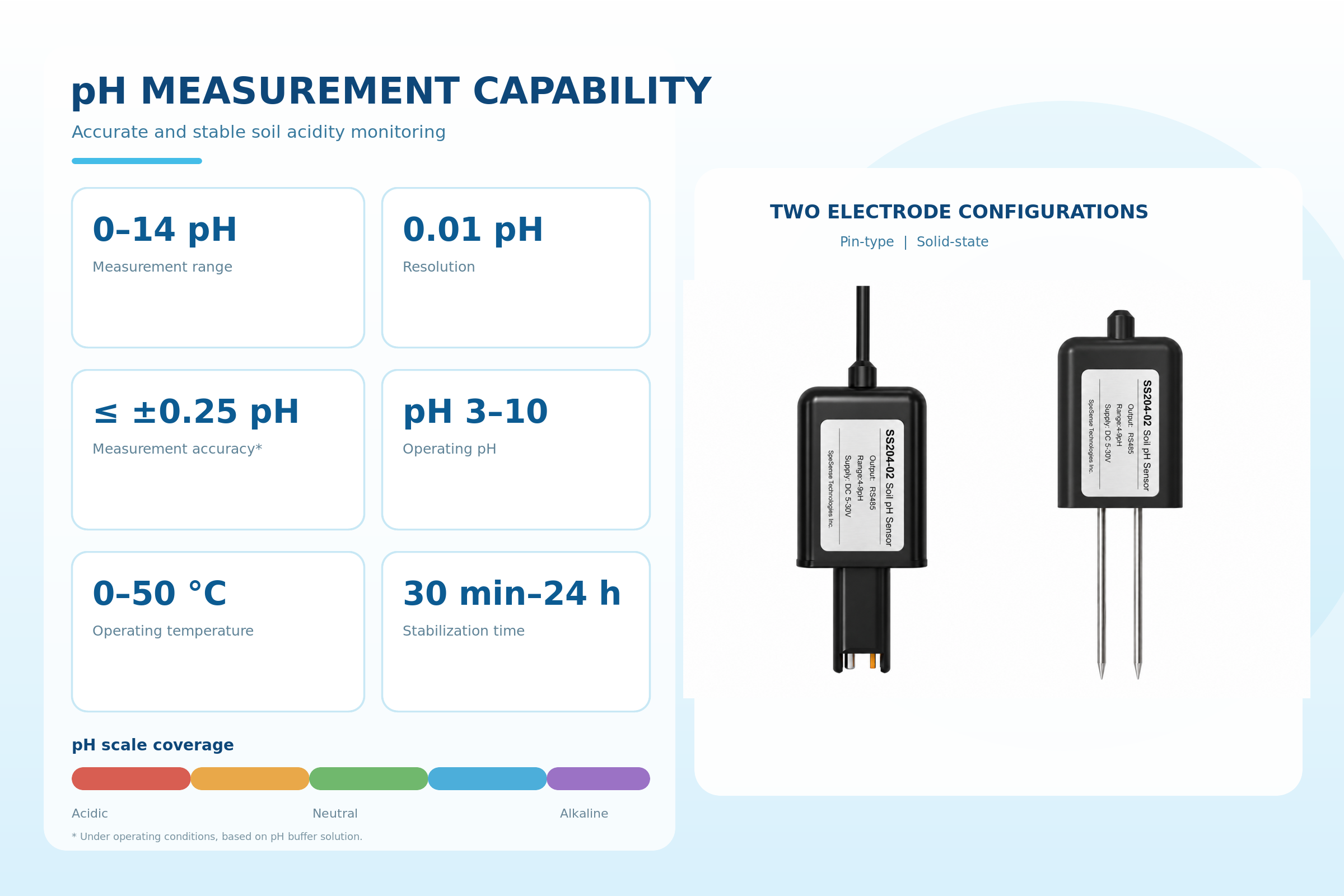

pH Measurement Range0–14 pH
pH Resolution0.01 pH
Temperature Range−40 to 80 °C

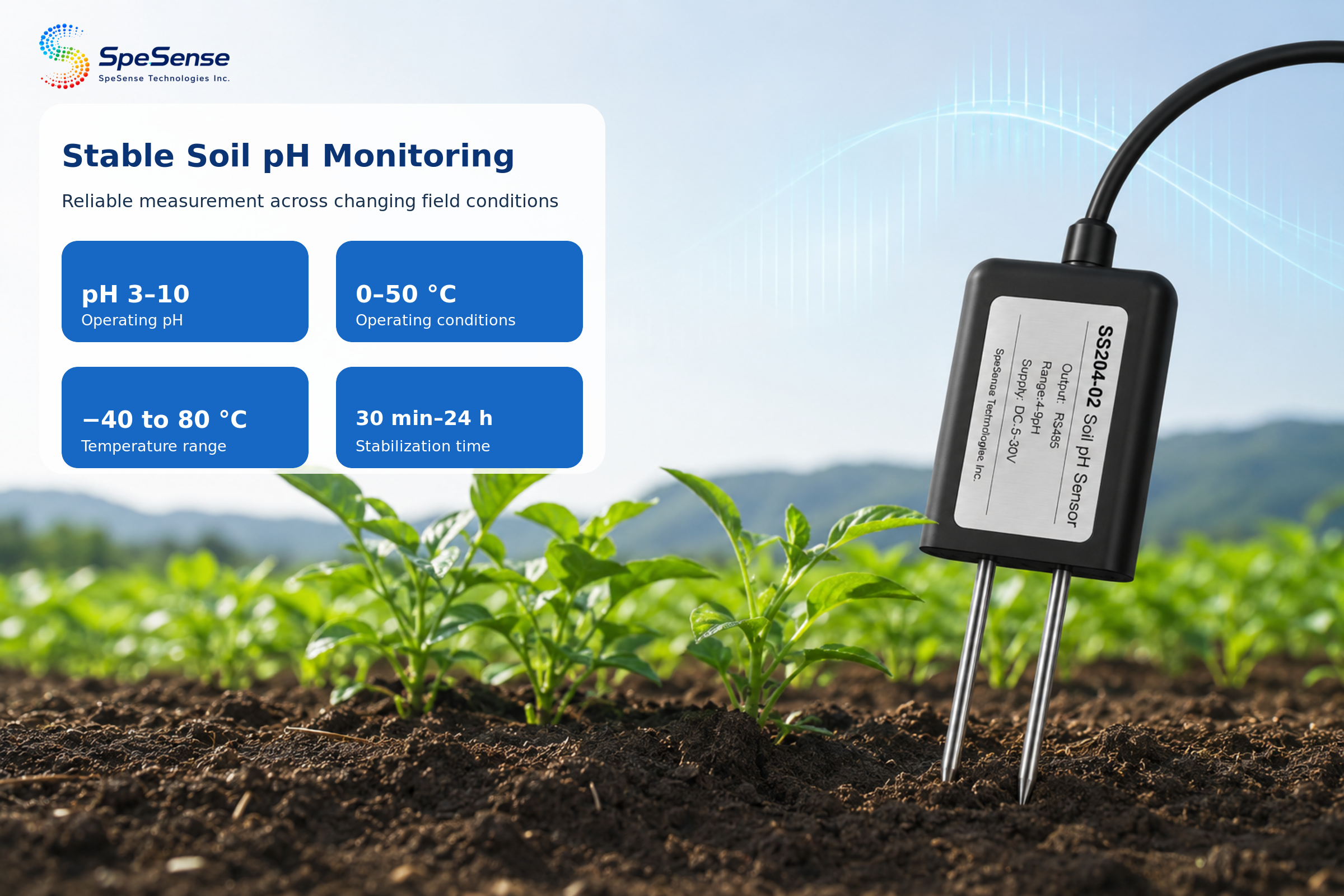

Operating ConditionspH 3–10; 0 to 50 °C
Measurement Accuracy≤ ±0.25 pH; ≤ ±0.5 °C (under operating conditions, based on pH buffer solution)

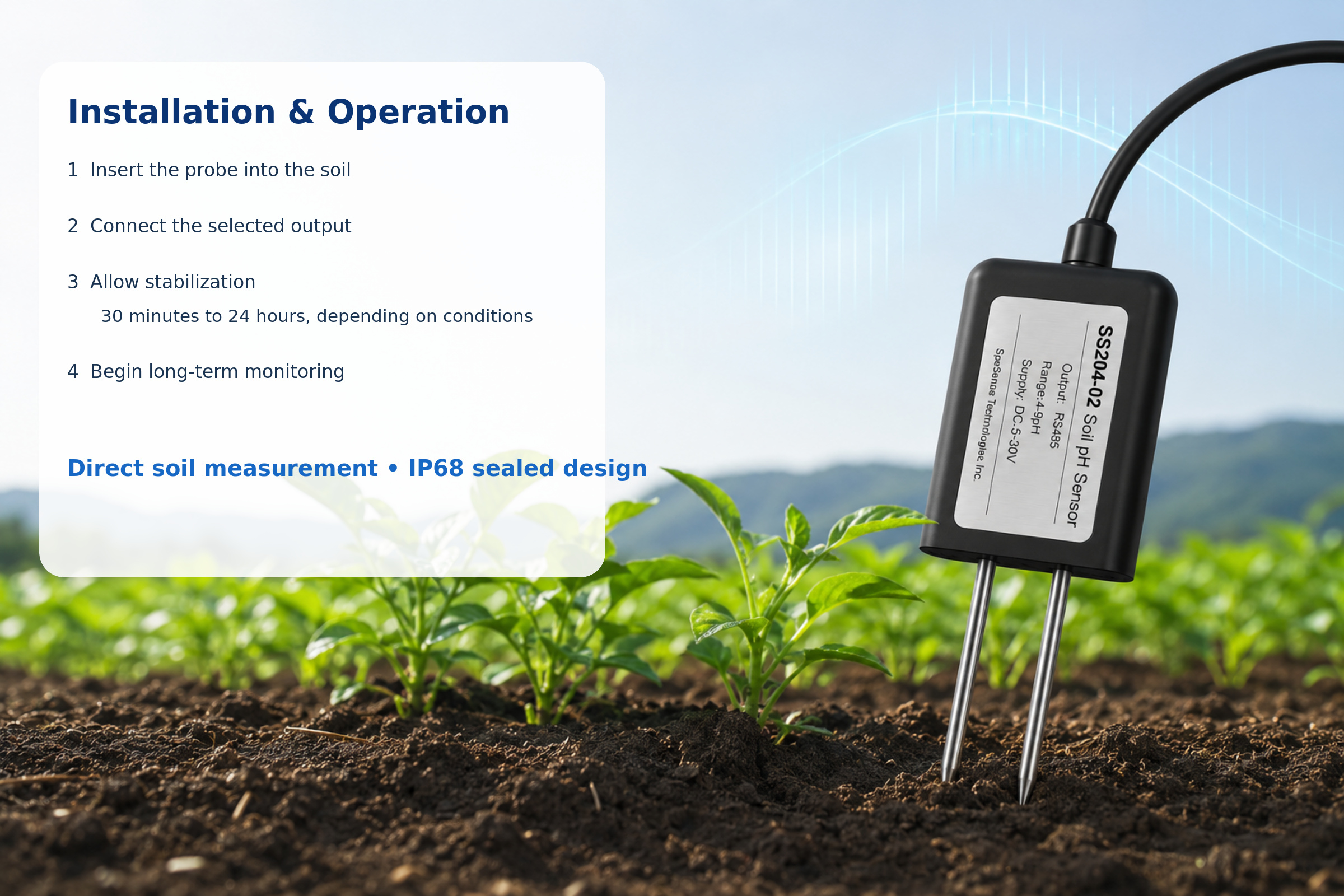

Stabilization Time30 minutes to 24 hours
Ingress ProtectionIP68
Sealing MaterialBlack flame-retardant epoxy resin
Cable Length2 m by default

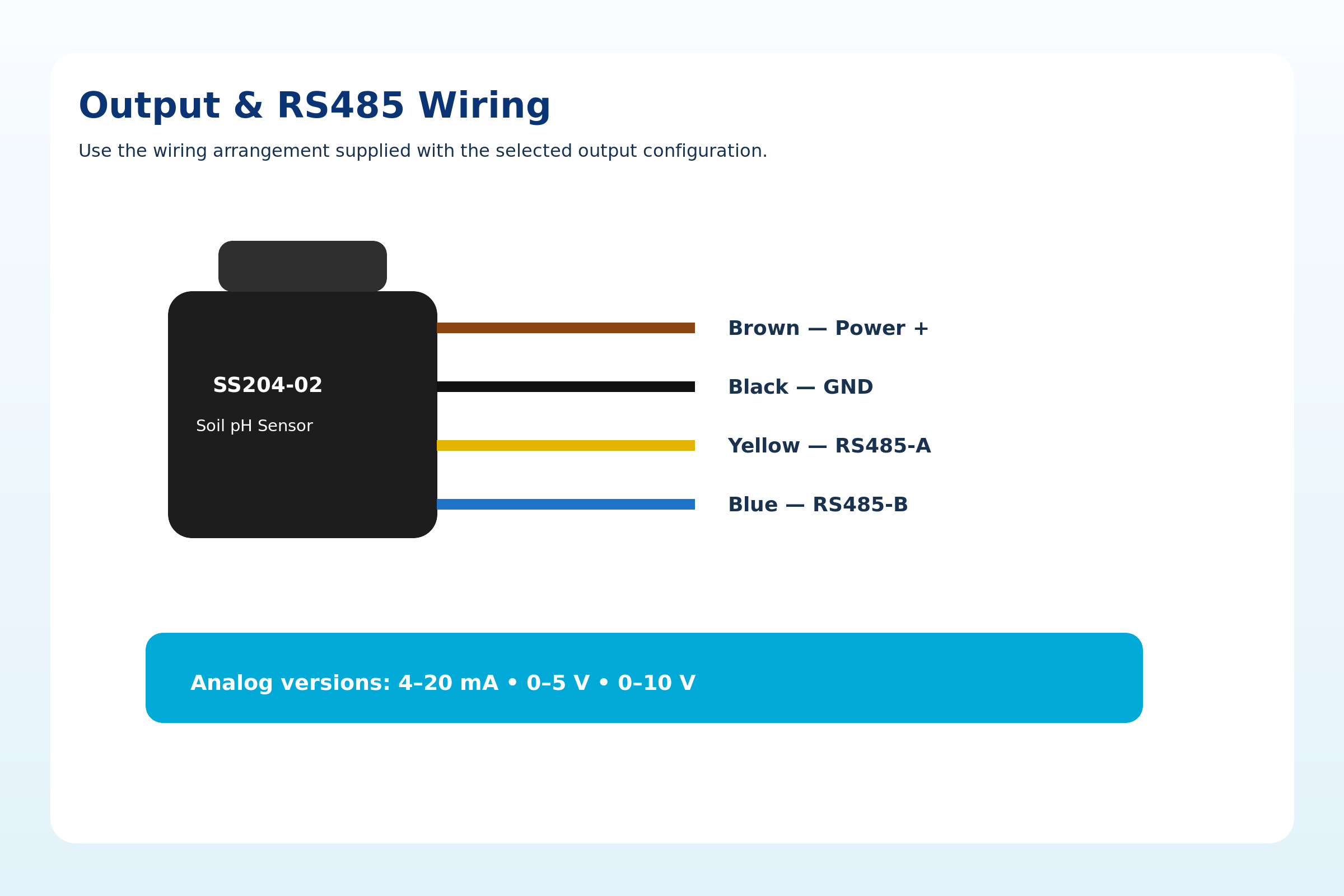

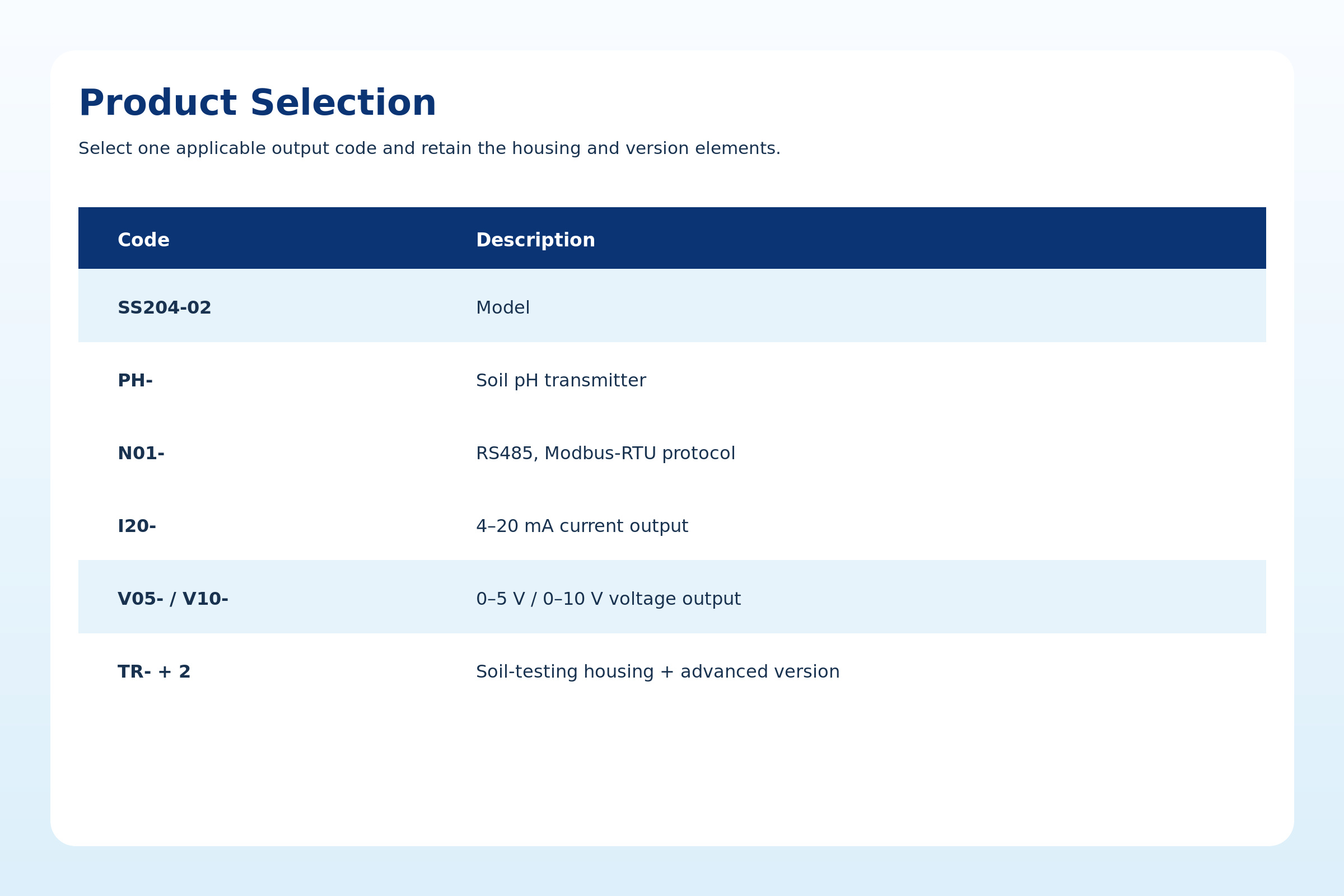

Output SignalRS485 / 4–20 mA / 0–5 V / 0–10 V
