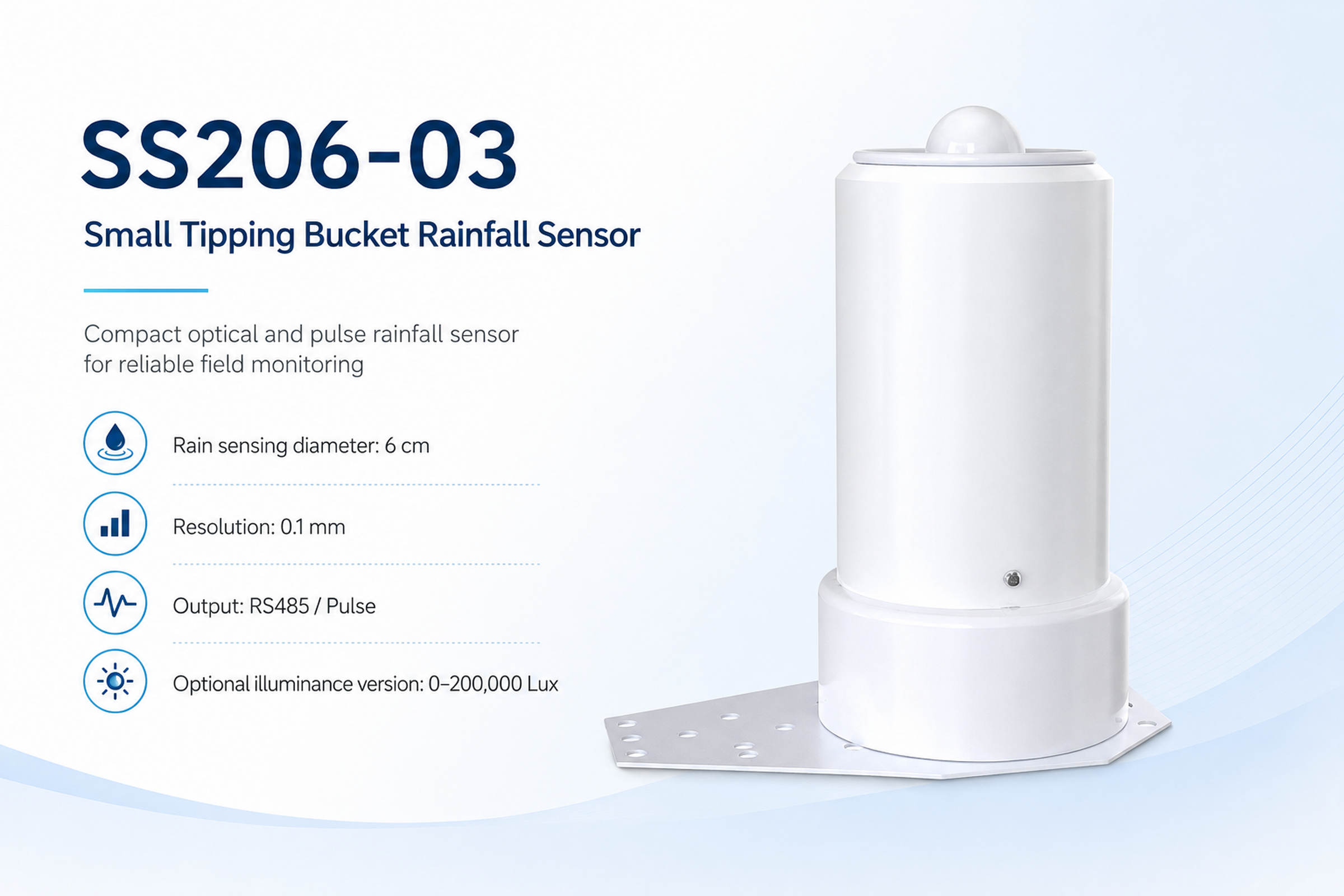

Rain Gauge Sensor
SS206-03
Small Tipping Bucket Rainfall Sensor

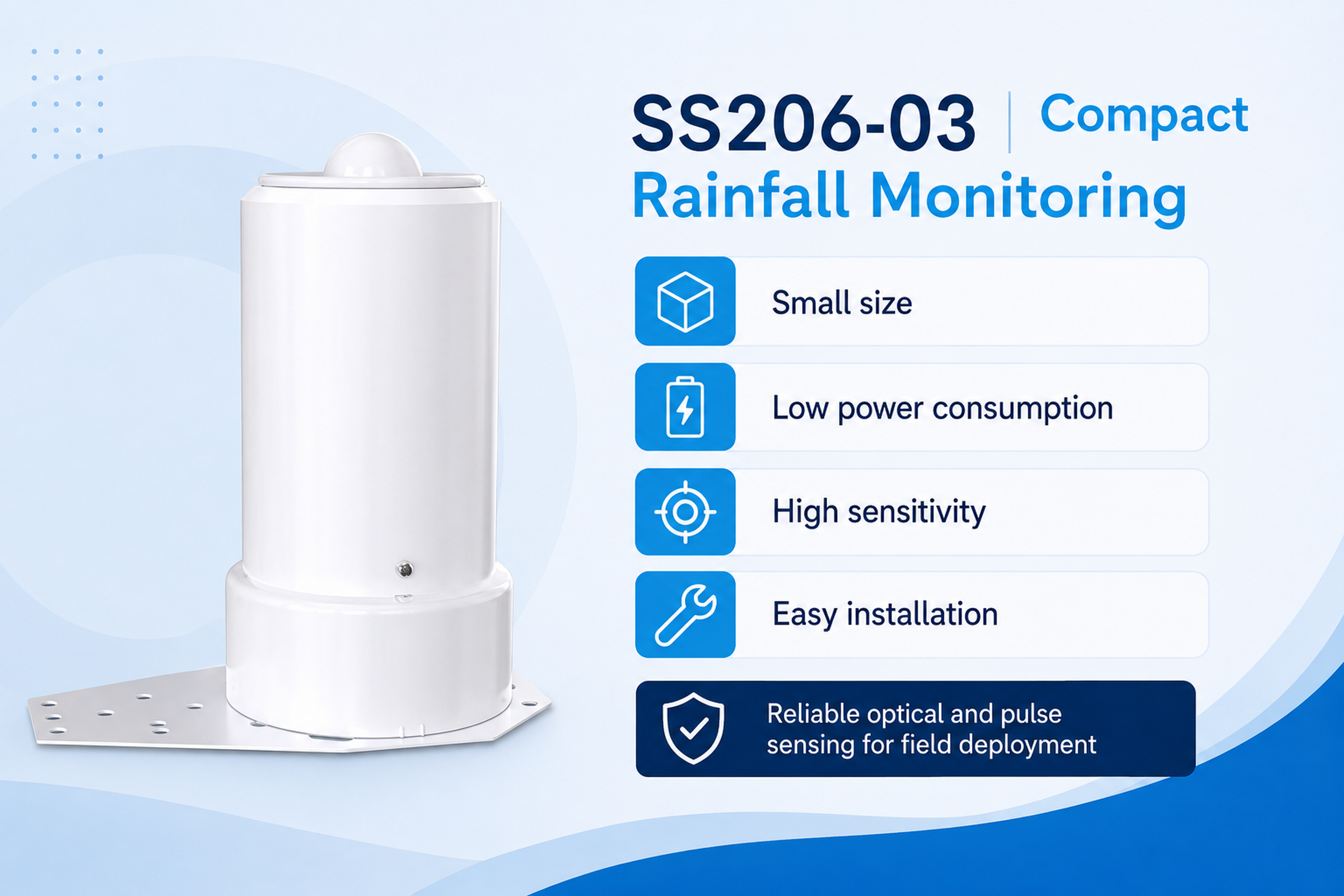

Product Highlights
● Small size,light weight and simple installation.
● Low-power design helps reduce energy consumption.

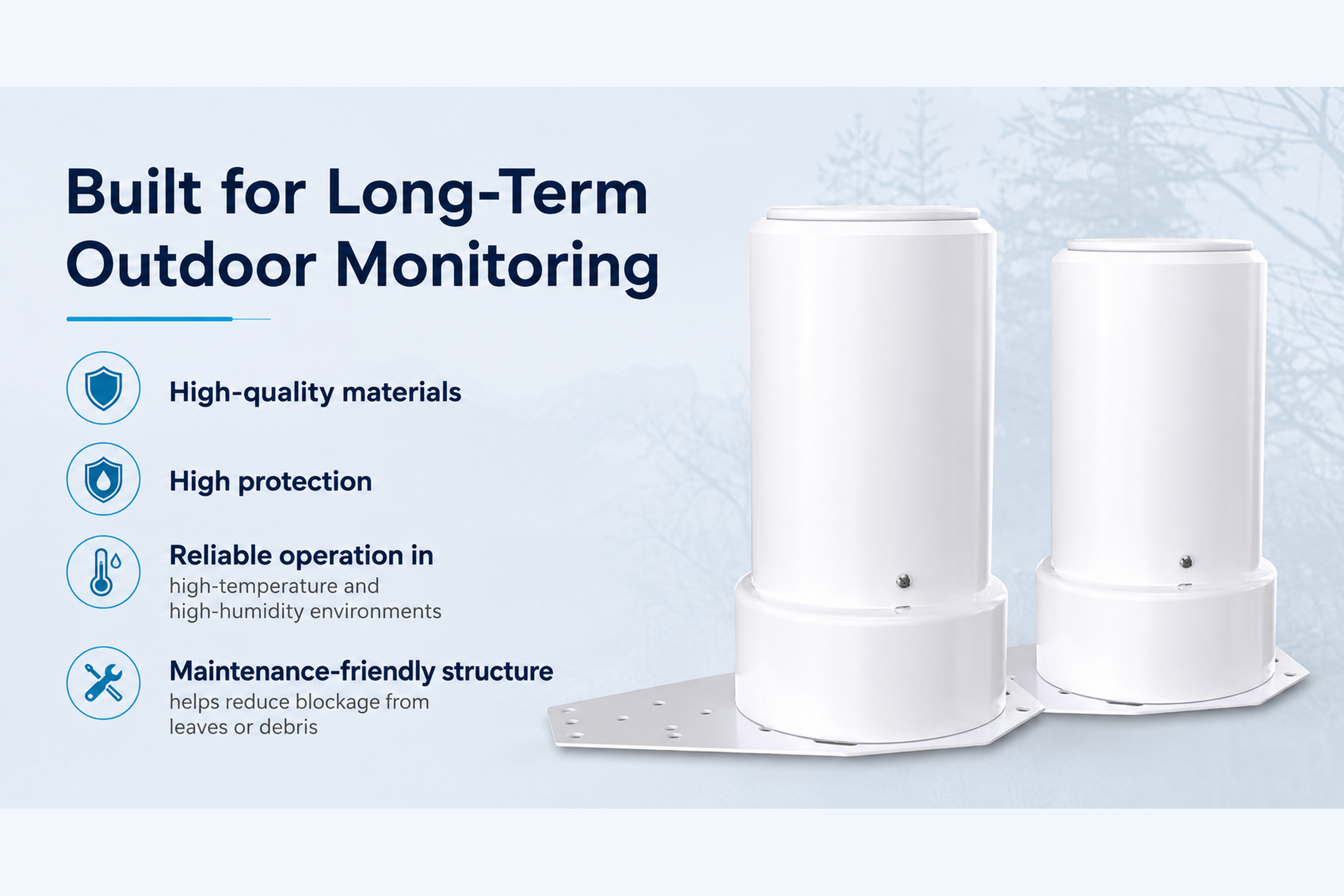

● High reliability for high-temperature and high humidity environments.
● Easy-maintenance structure reduces blockage by leaves or debris.
● Low-power design helps reduce energy consumption.
● High reliability for high-temperature and high humidity environments.
● Easy-maintenance structure reduces blockage by leaves or debris.
Product Overview

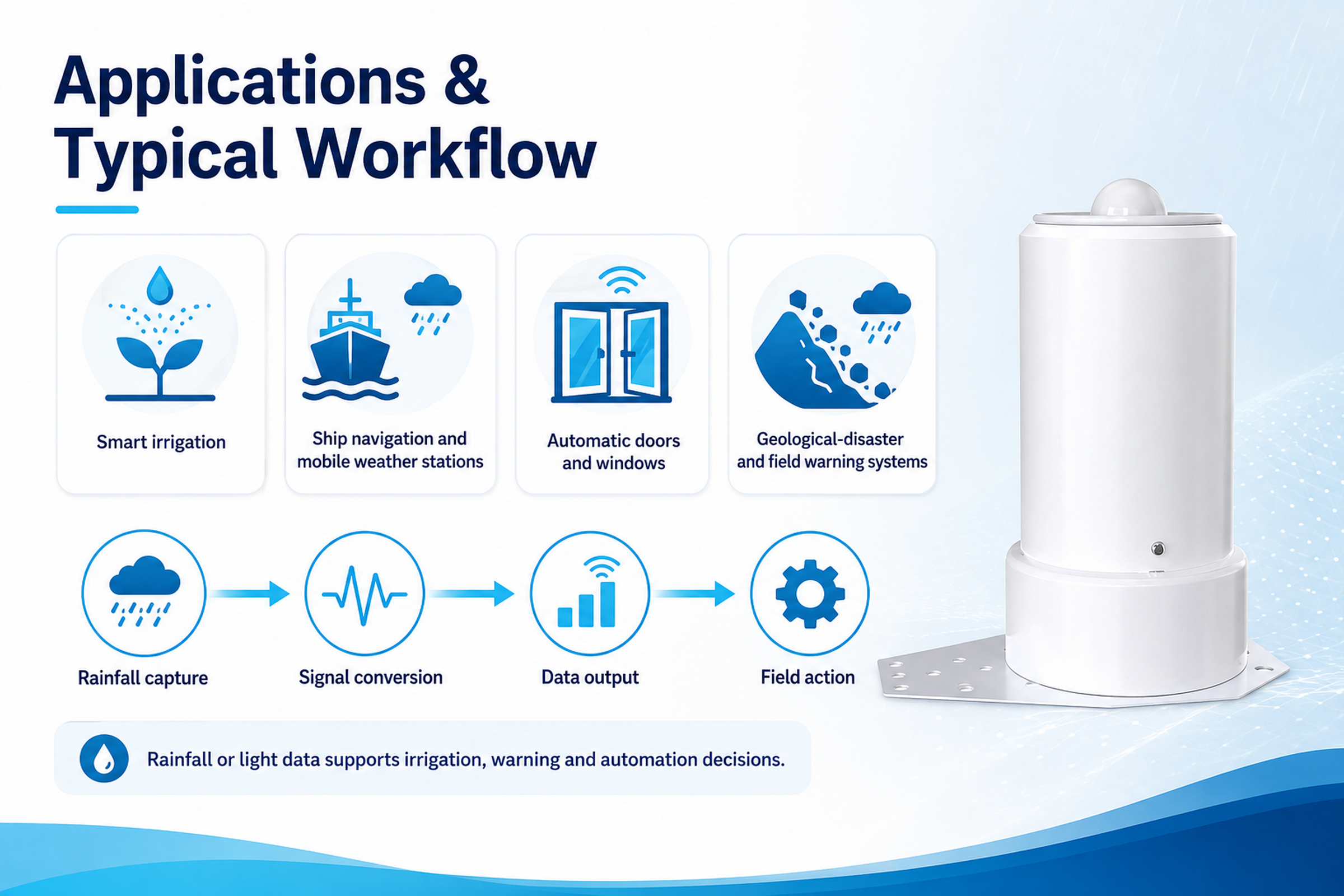

The SpeSense SS206-03 Small Tipping Bucket Rainfall Sensor is designed for compact rainfall monitoring systems where installation space and integration are important considerations. Using a tipping-bucket mechanism to measure precipitation, it supports rainfall data collection for automatic weather stations, agricultural monitoring, environmental observation and hydrological applications. Its compact sensor format makes it suitable for distributed outdoor monitoring installations that require continuous rainfall measurement.
| Item | Specification |

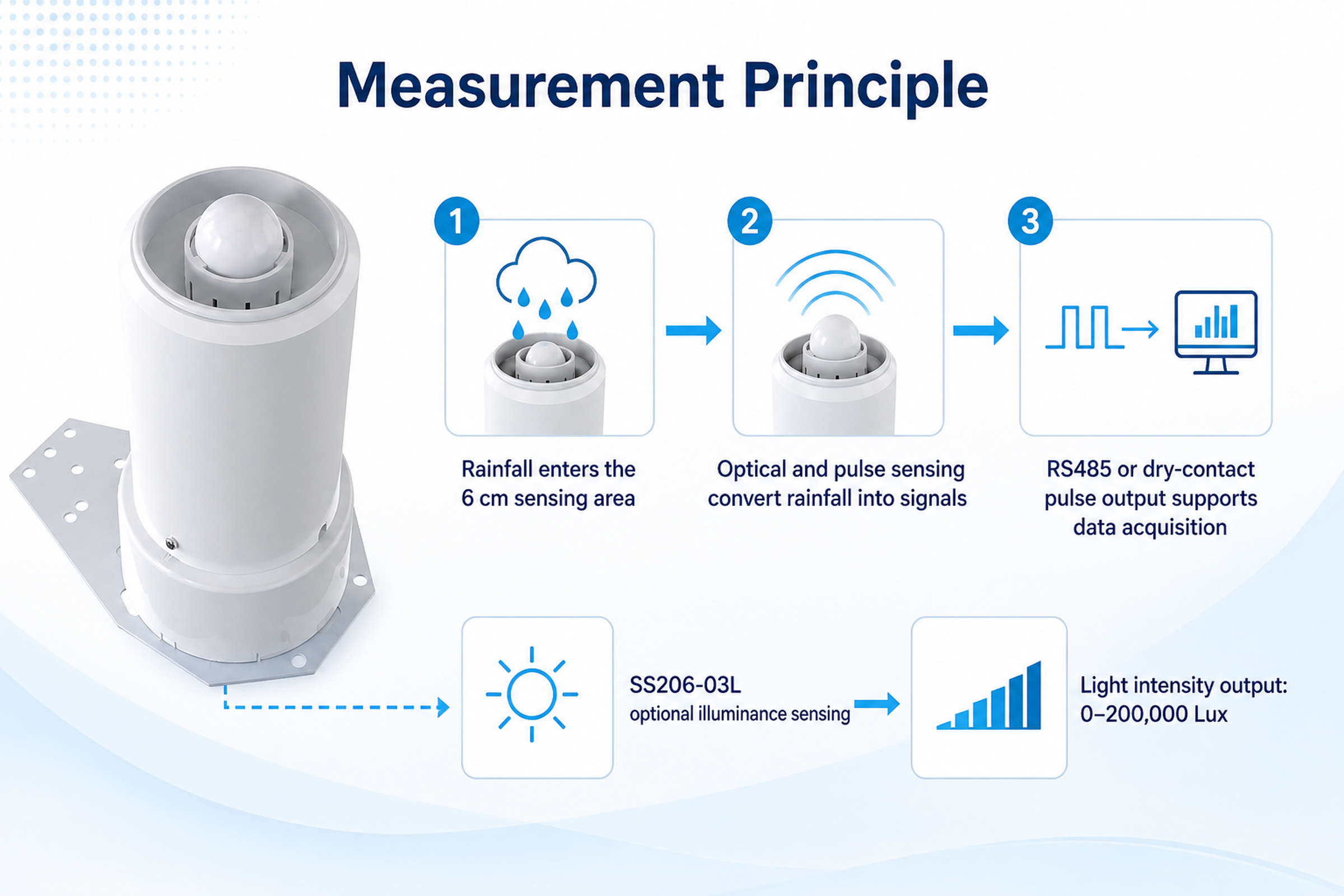

| Product Type | Optical and pulse tipping bucket rainfall sensor |

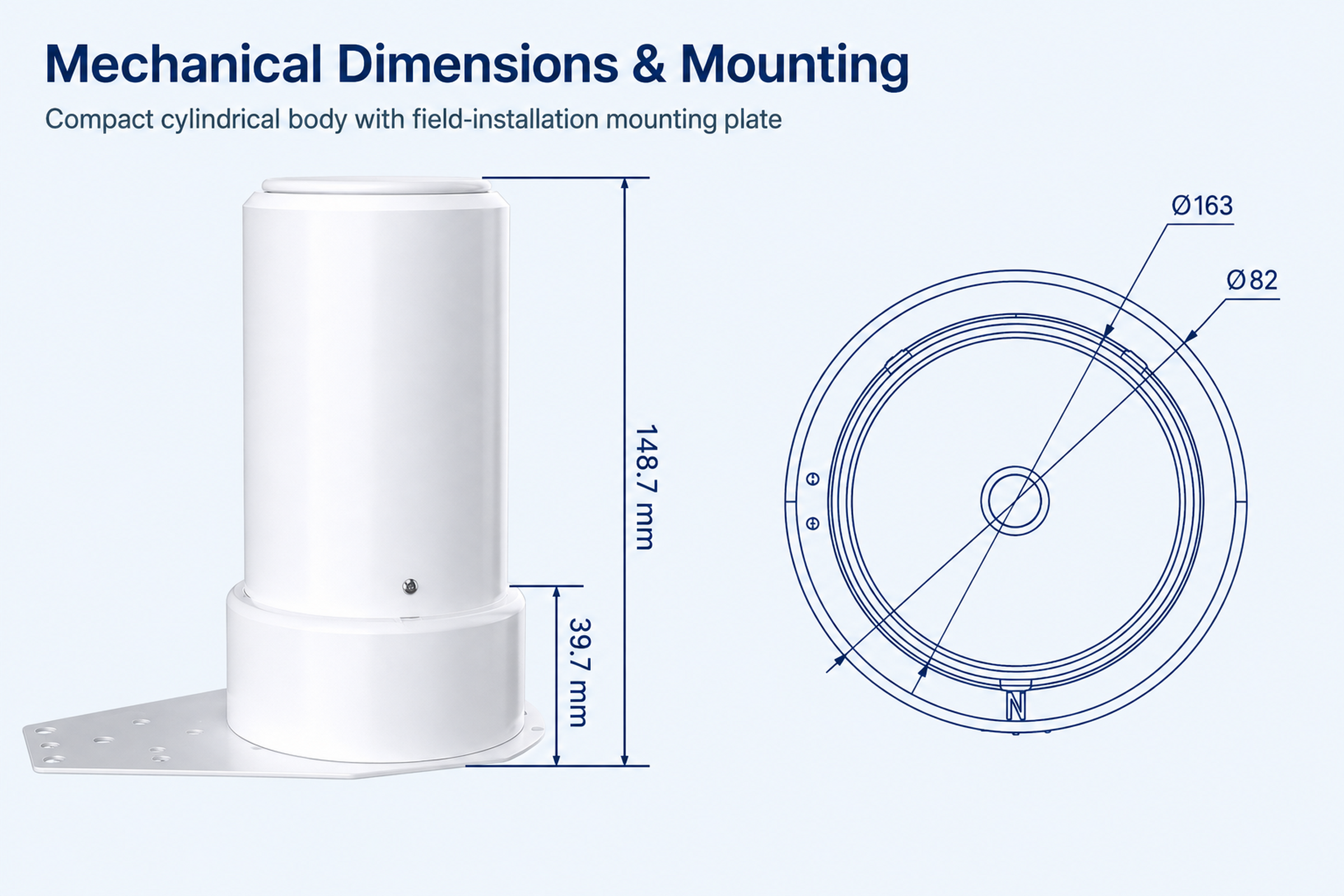

| Rain Sensing Diameter | 6 cm |

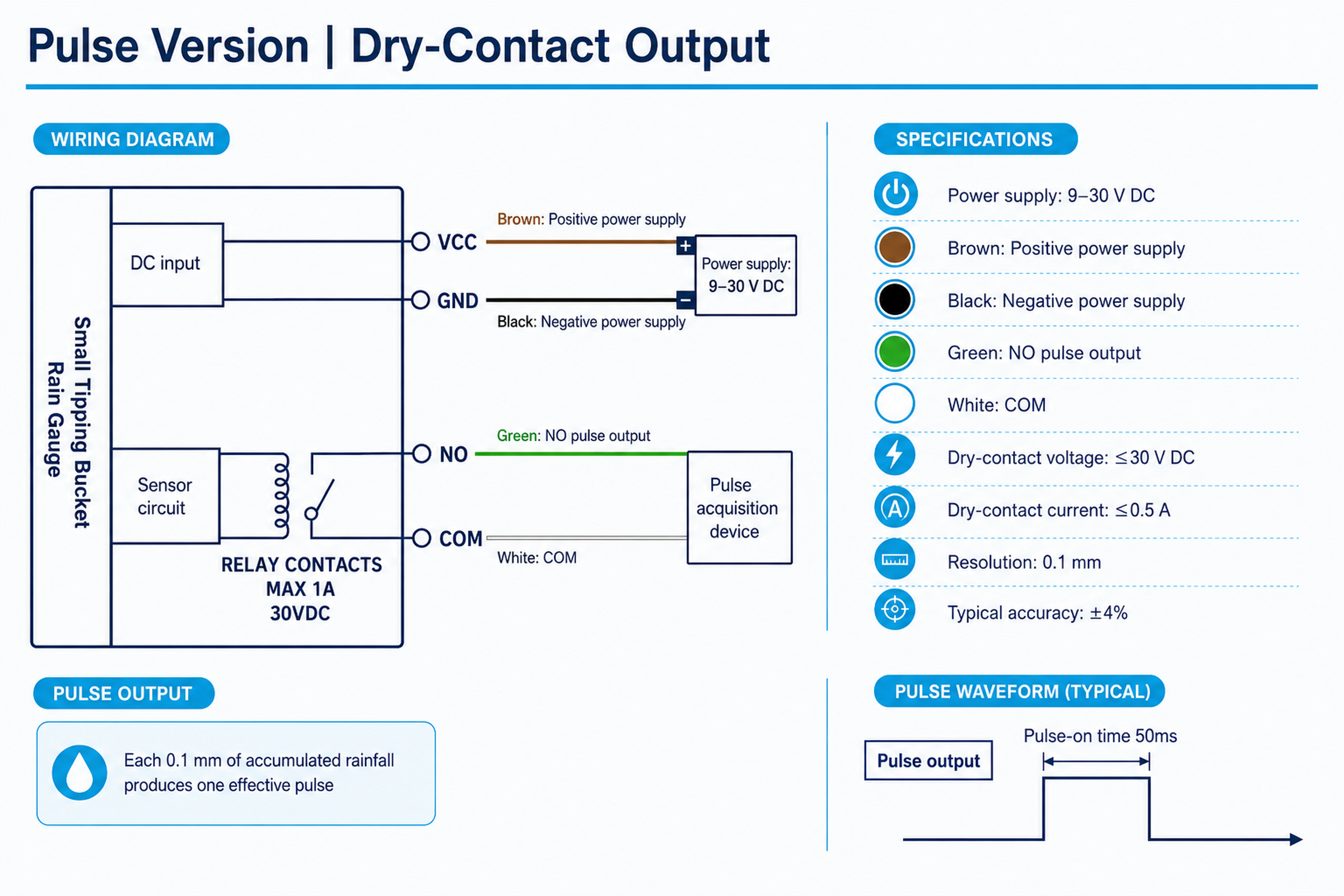

| Power Supply | 9-30 V DC |
| Power Consumption | <0.24 W |

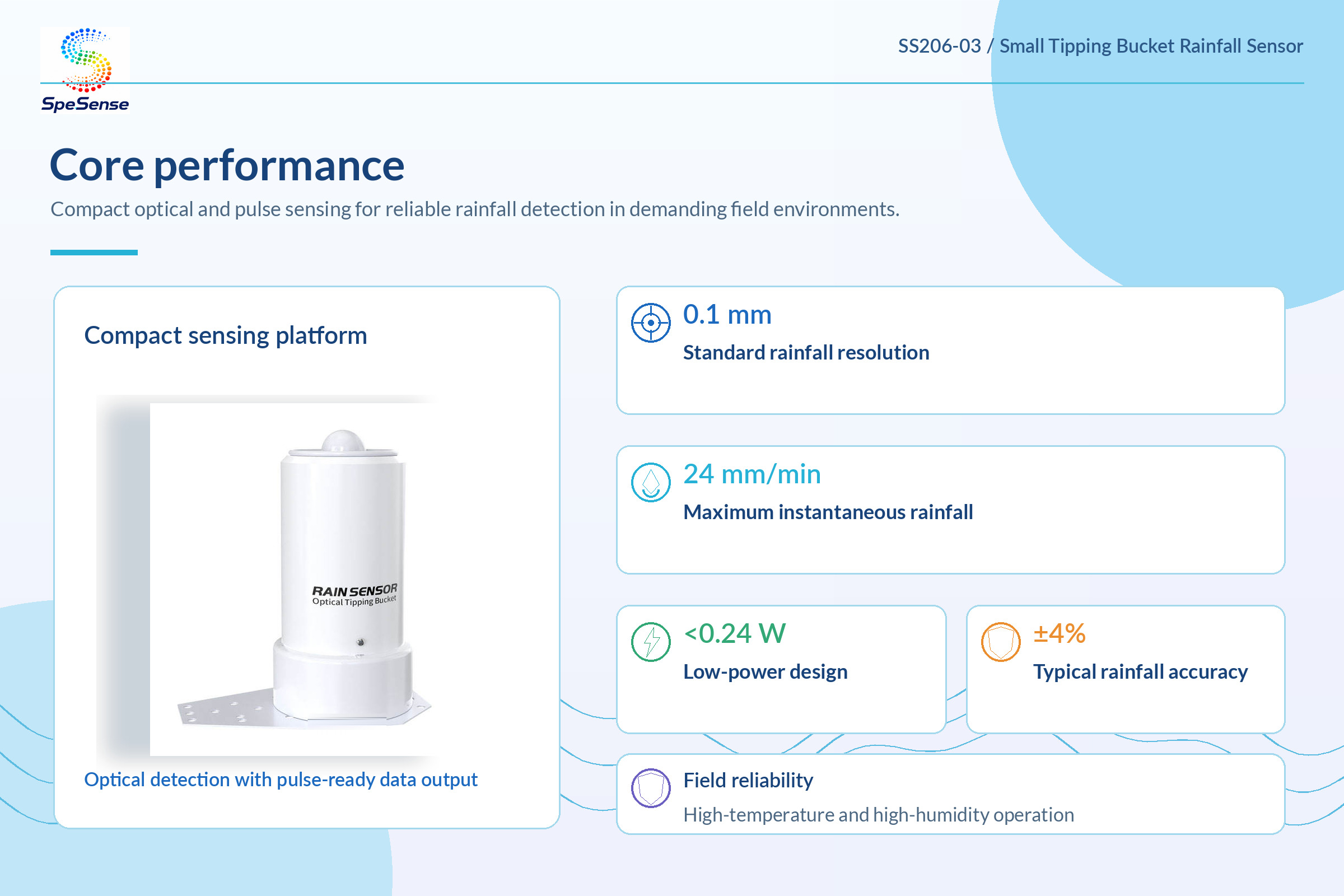

| Rainfall Resolution | Standard 0.1 mm |
| Rainfall Typical Accuracy | ±4% |
| Maximum Instantaneous Rainfall | 24 mm/min |
| Operating Temperature / Humidity | -40°C to +80°C; 0-95% RH, non-condensing |
| Working Pressure Range | Standard atmospheric pressure ±10% |
