SS206-08
Rain Gauge Sensor

SS206-08

Piezoelectric Rain Sensor

Product Highlights

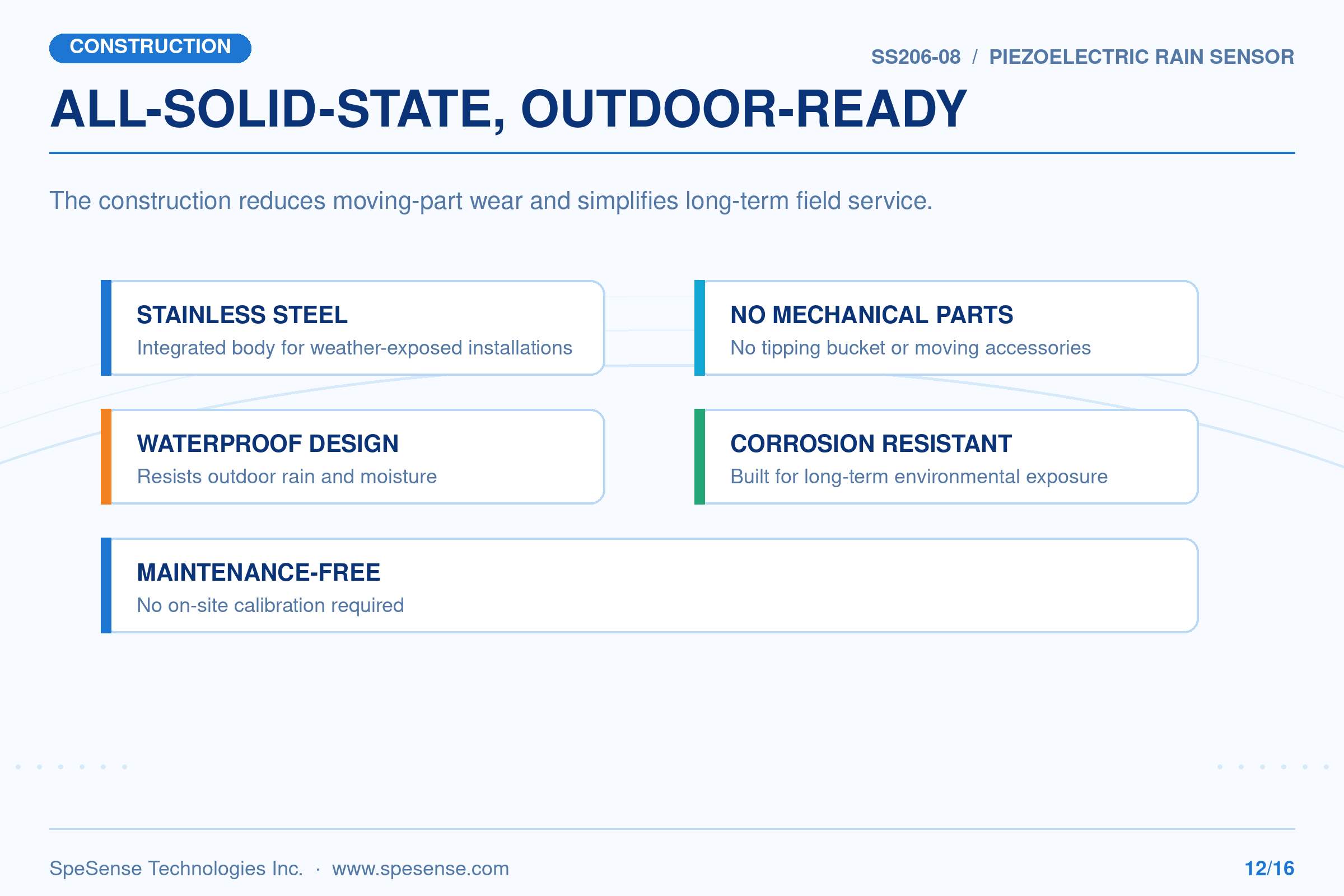

● All-solid-state construction with no mechanical accessories.
● Weather-resistant, corrosion-resistant and waterproof construction.
● Maintenance-free operation; no on-site calibration required.
Download PDF

Product Overview

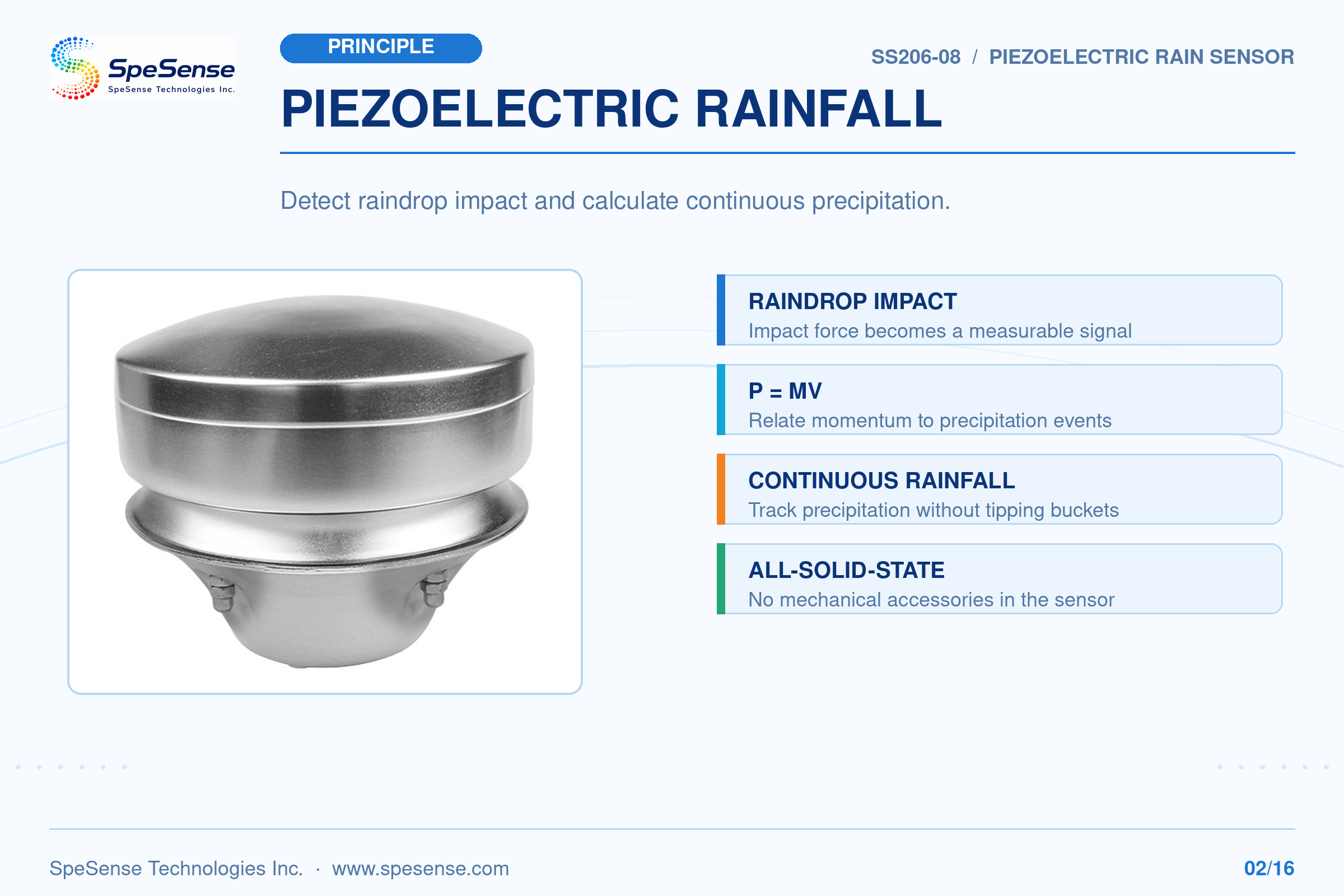

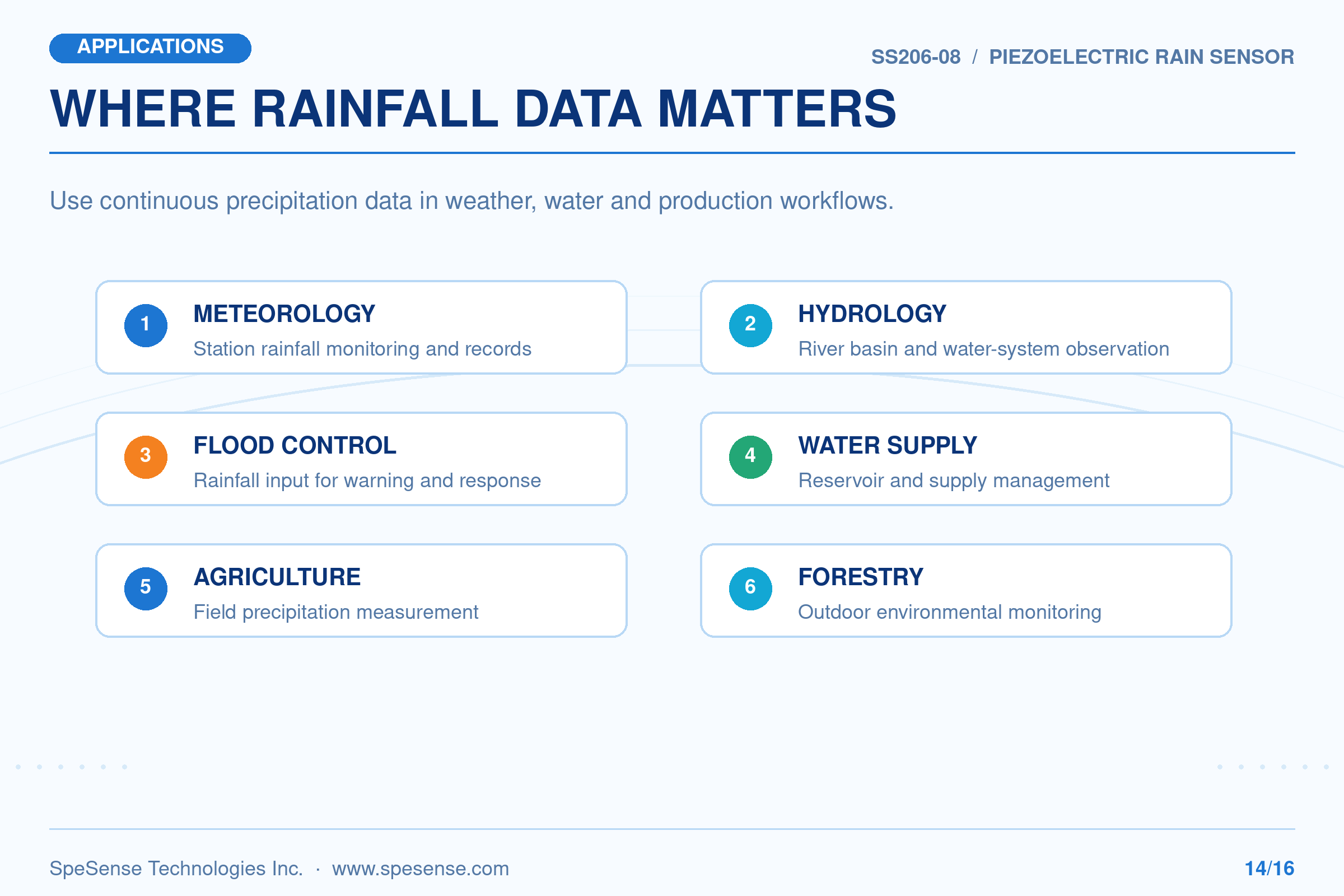

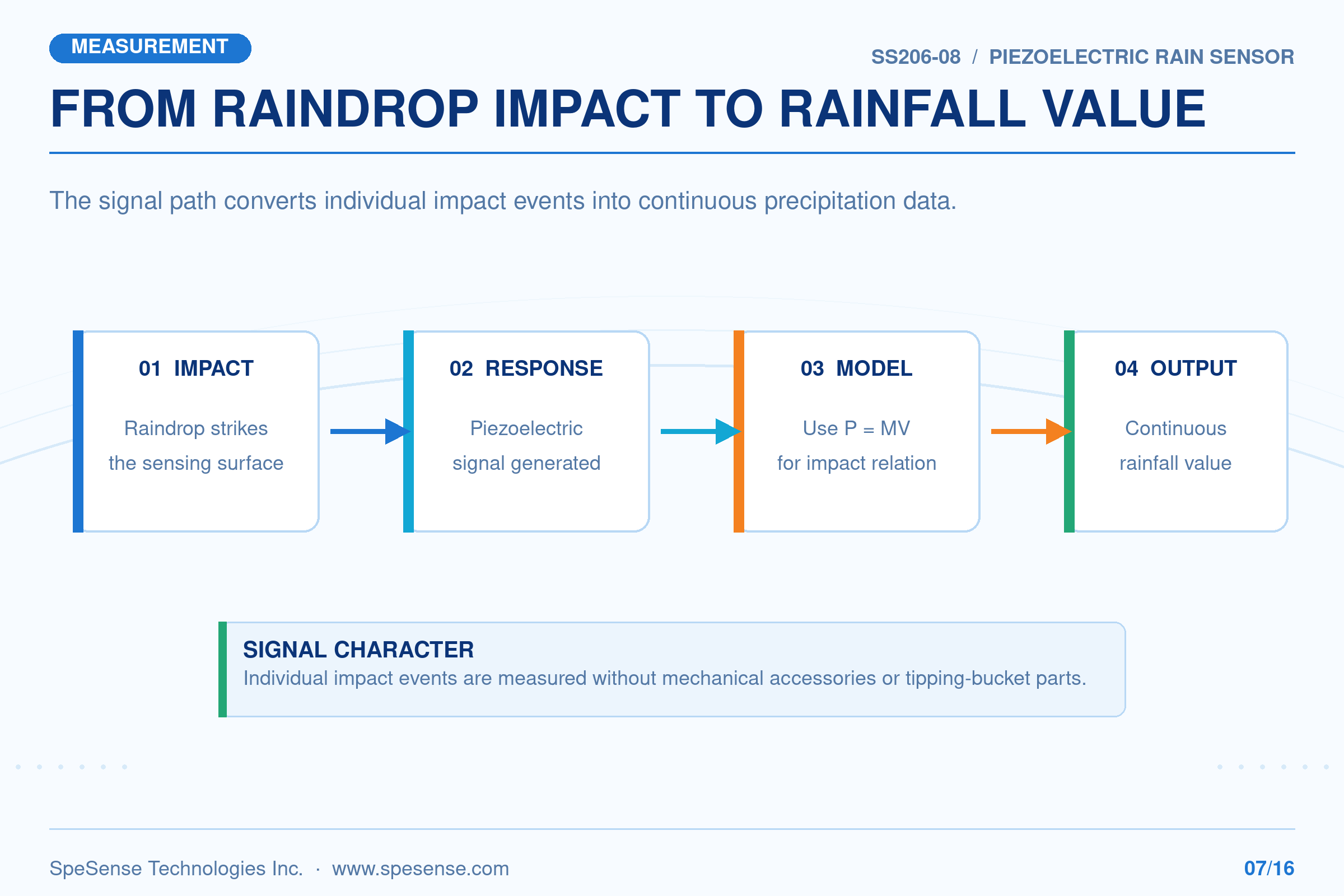

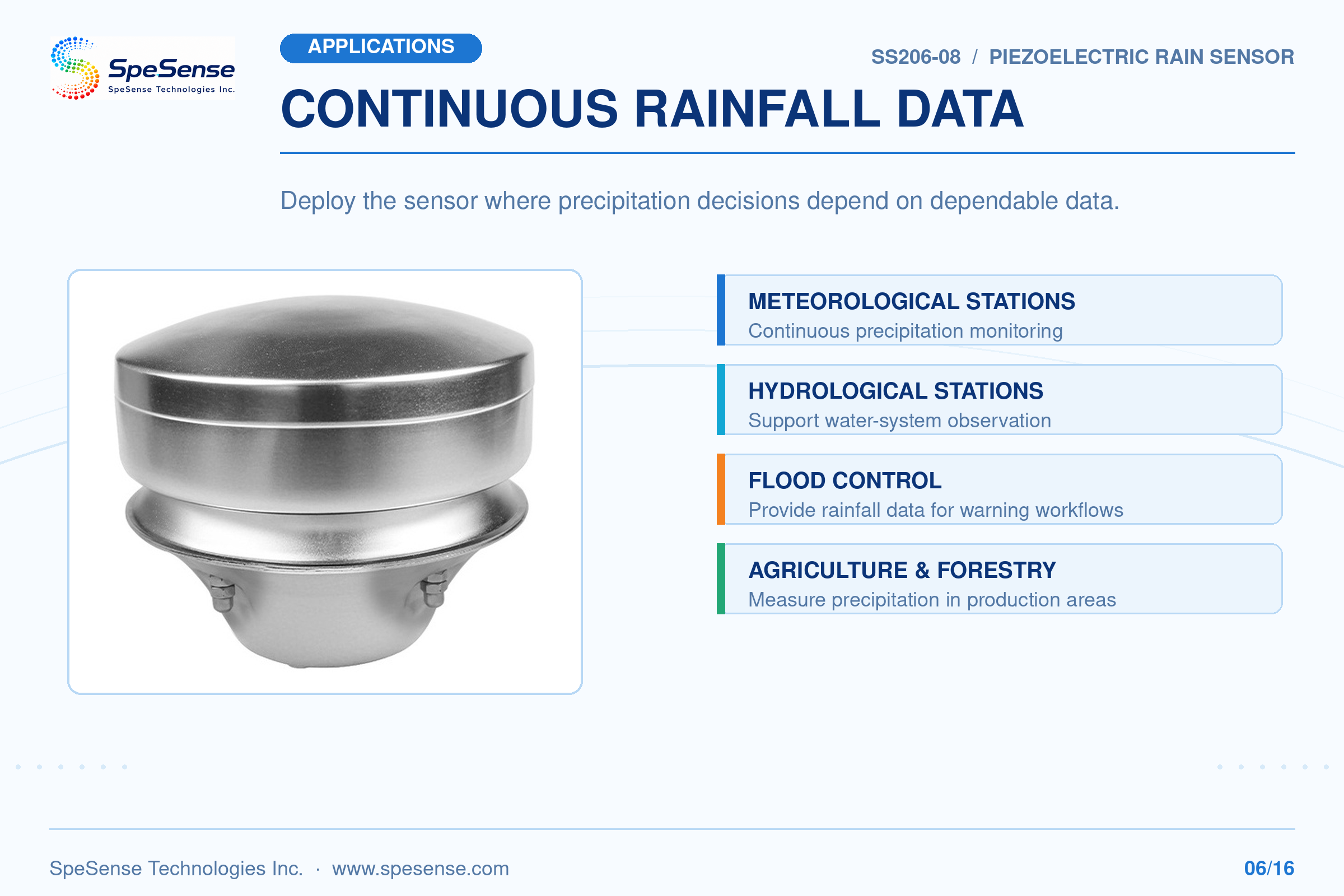

The SpeSense SS206-08 Piezoelectric Rain Sensor is designed for continuous rainfall monitoring by detecting the impact of raindrops on its sensing surface. Its all-solid-state construction eliminates conventional mechanical tipping components, helping reduce maintenance requirements in long-term outdoor installations. With a weather-resistant stainless-steel design and RS485 communication, the sensor is suitable for automatic weather stations, environmental monitoring networks, agricultural meteorology and rainfall data acquisition systems.

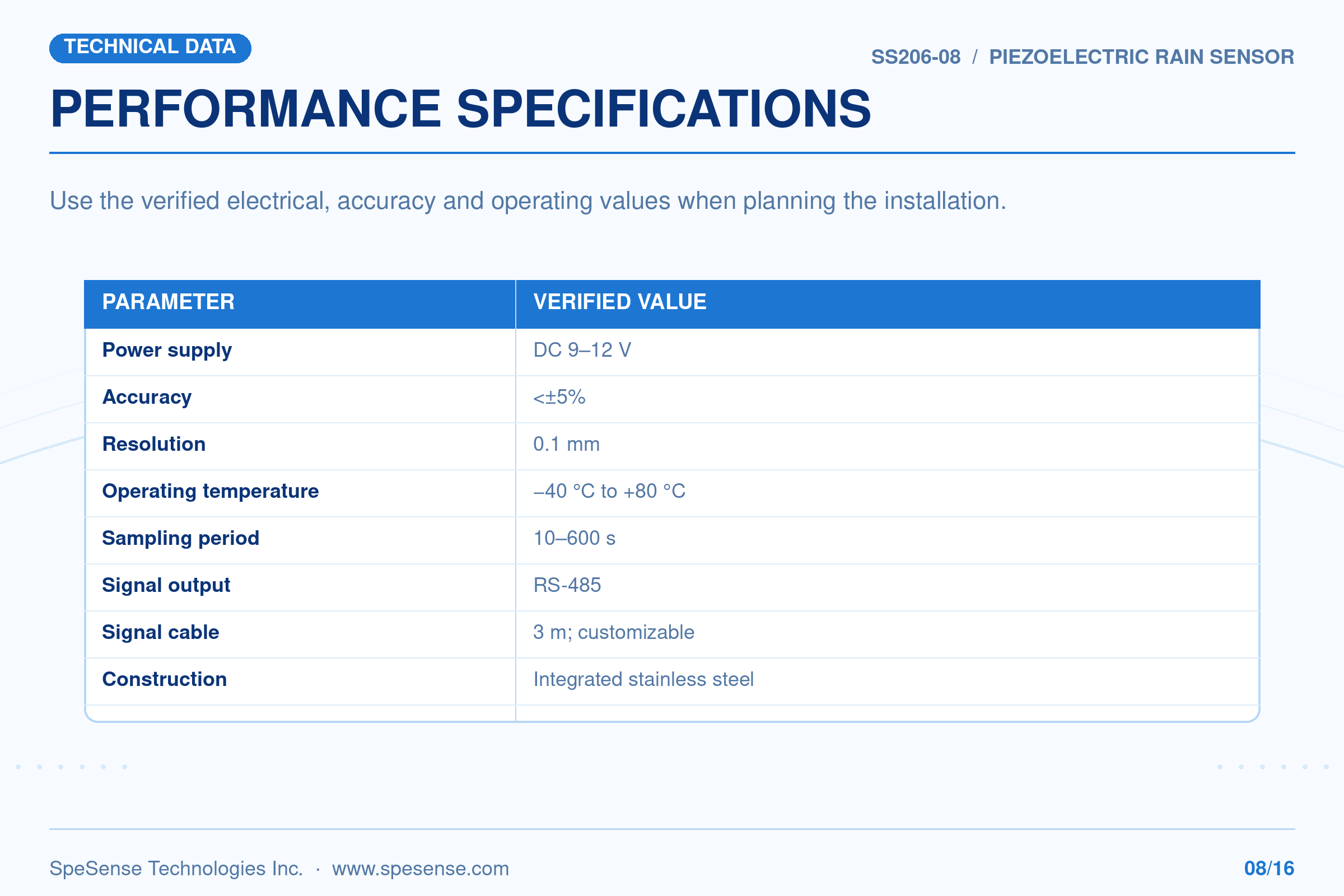

ItemSpecification
Power supplyDC 9–12 V

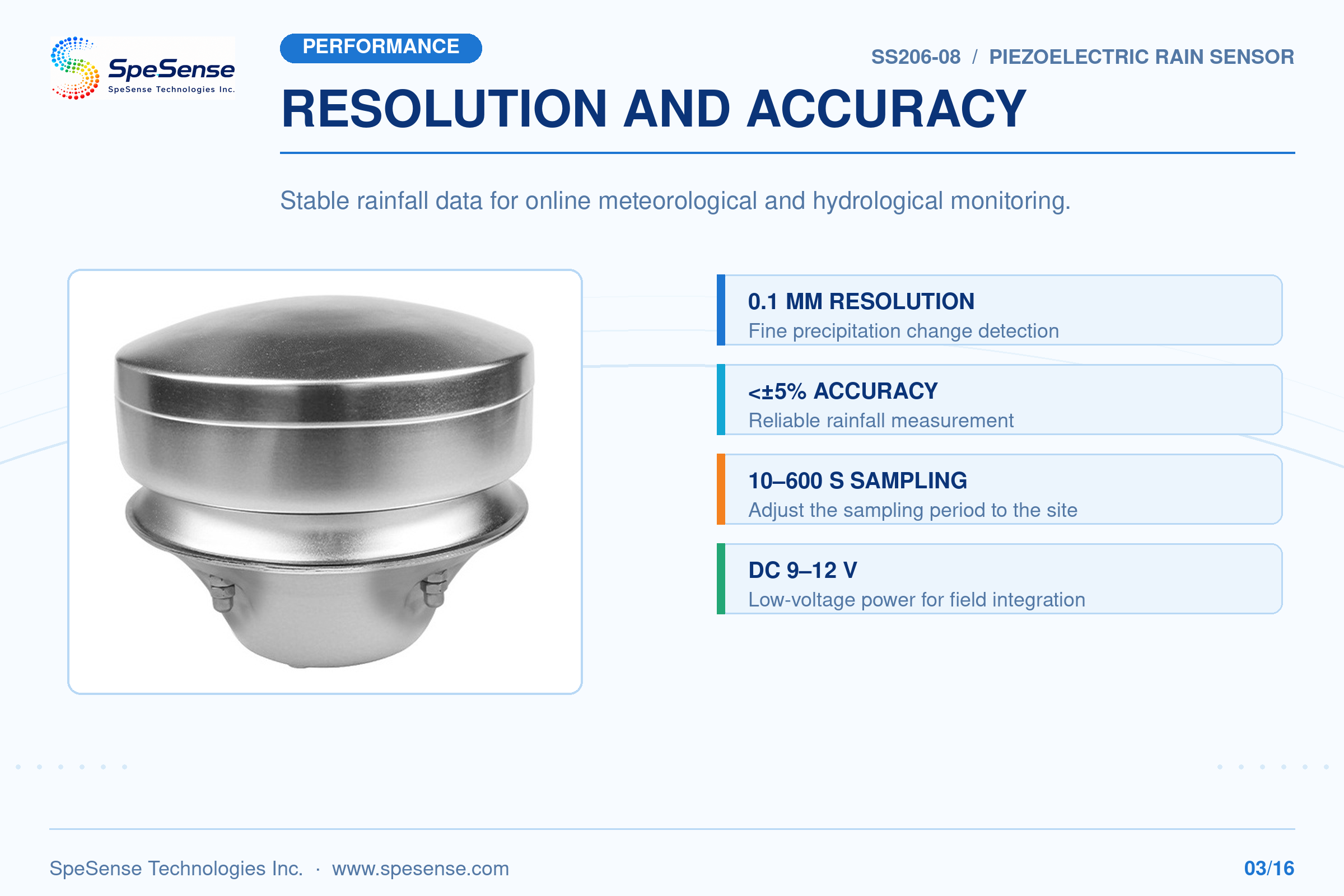

Accuracy<±5%
Resolution0.1 mm
Operating temperature−40 °C to +80 °C

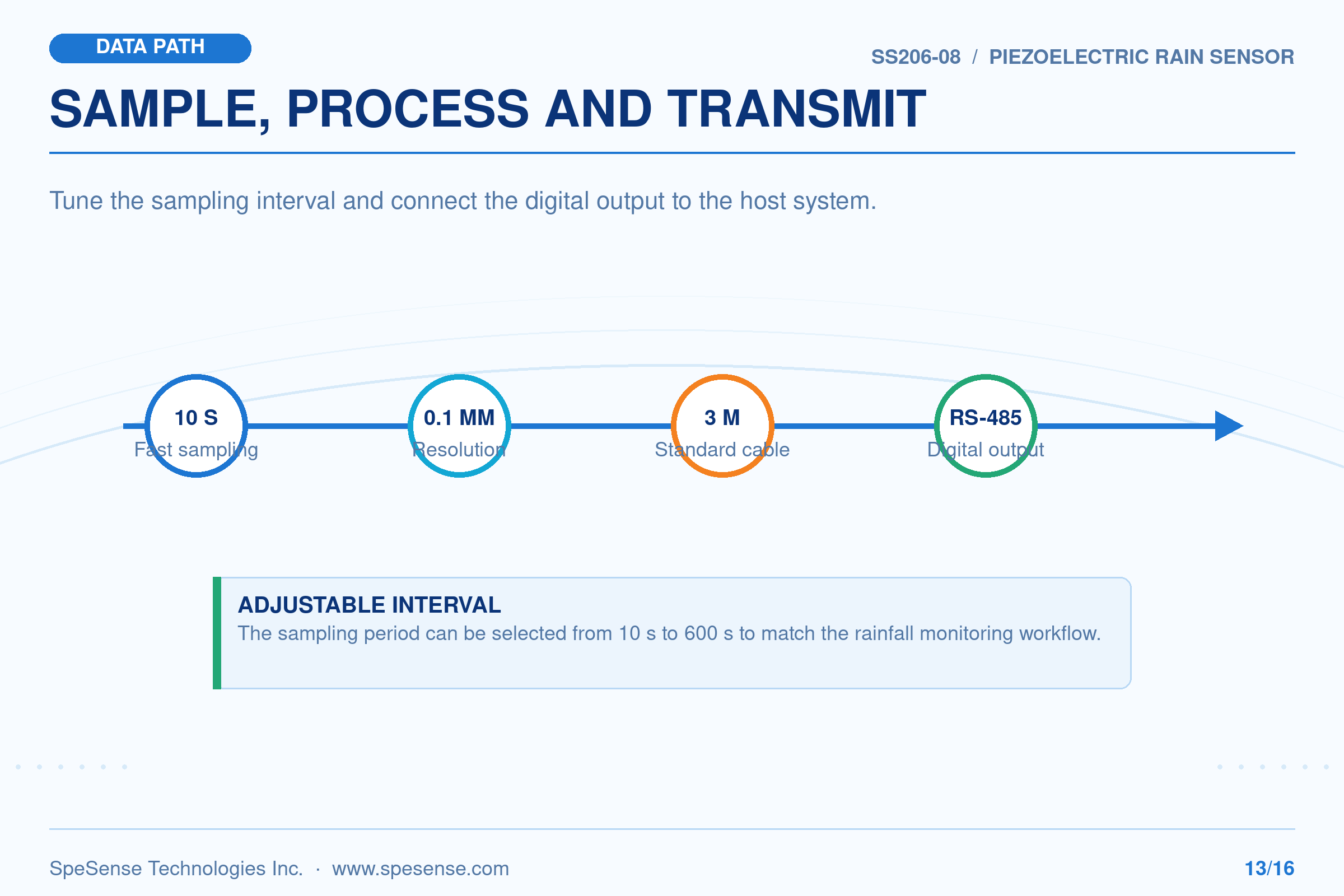

Sampling period10–600 s

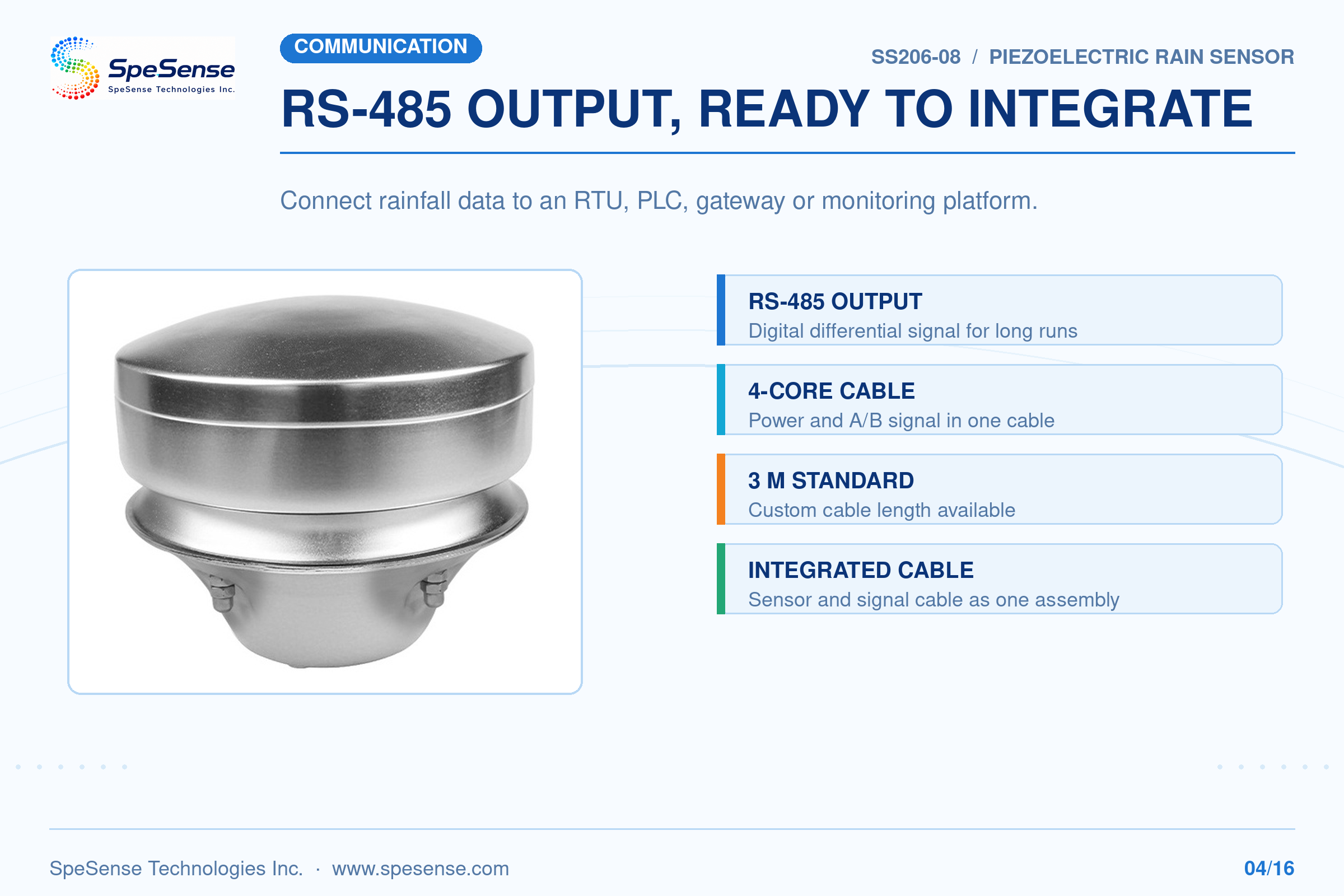

Signal outputRS-485
Signal cable length3 m; customizable

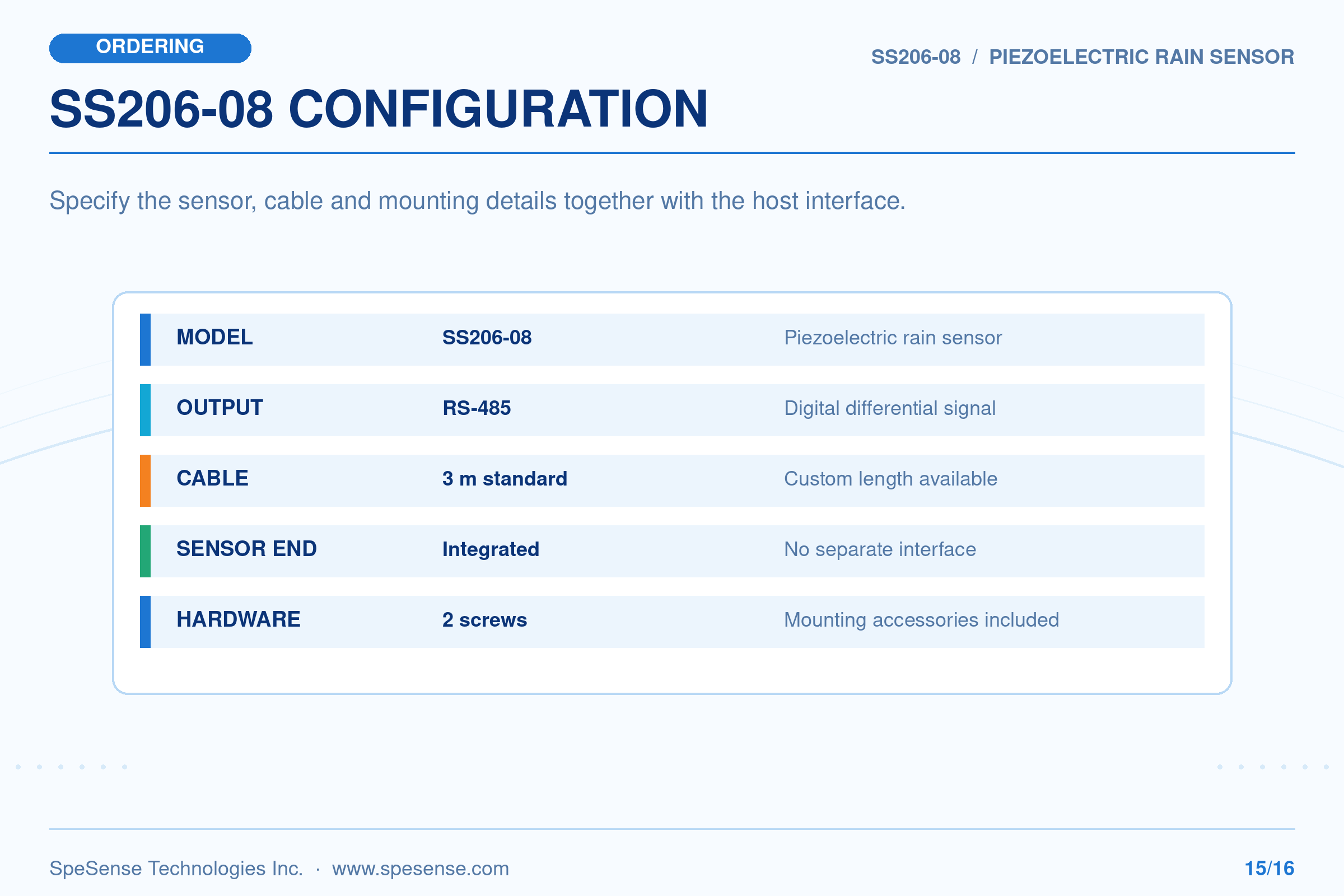

Sensor-end interfaceIntegrated sensor and signal cable; no interface

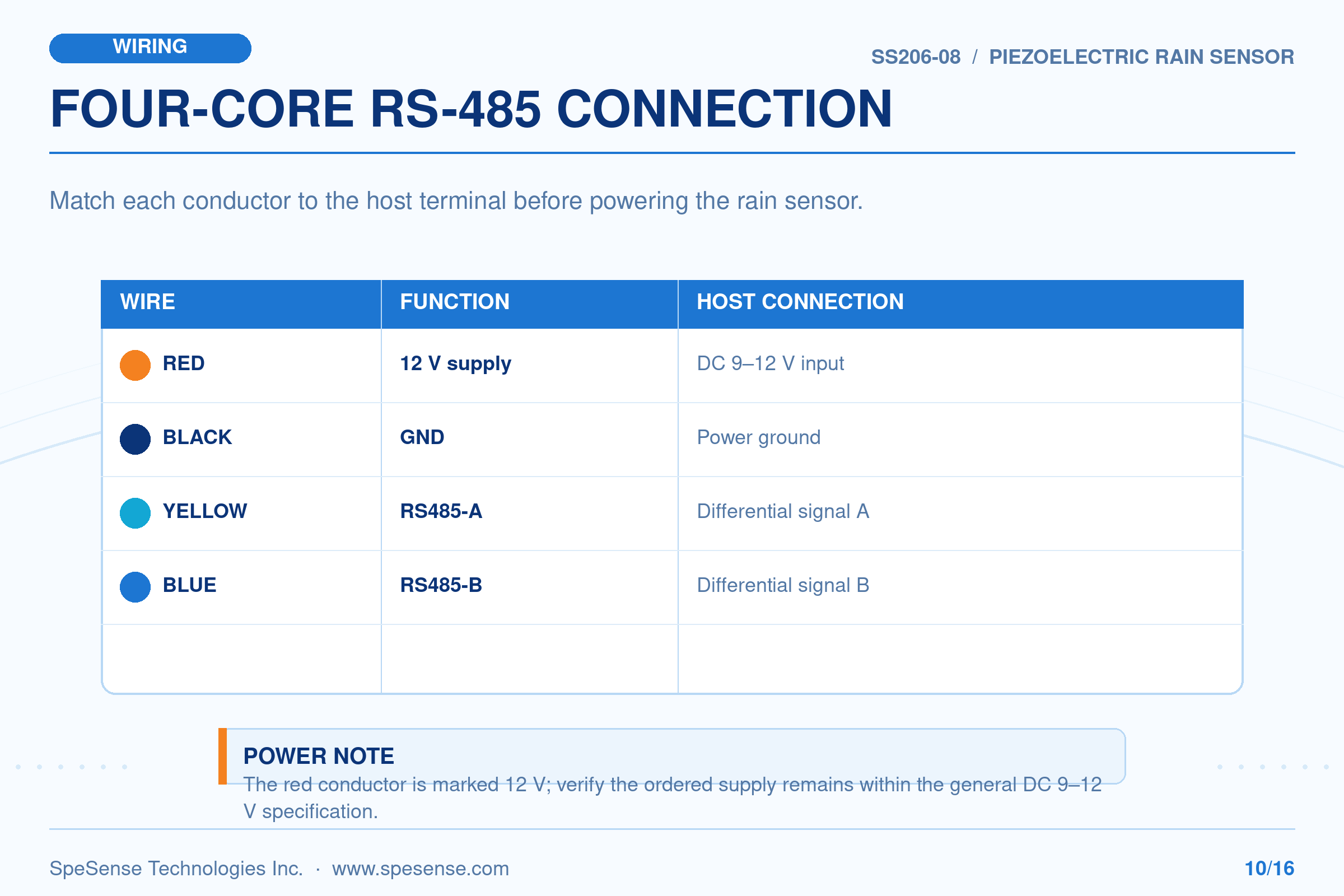

Cable configuration4-core connection

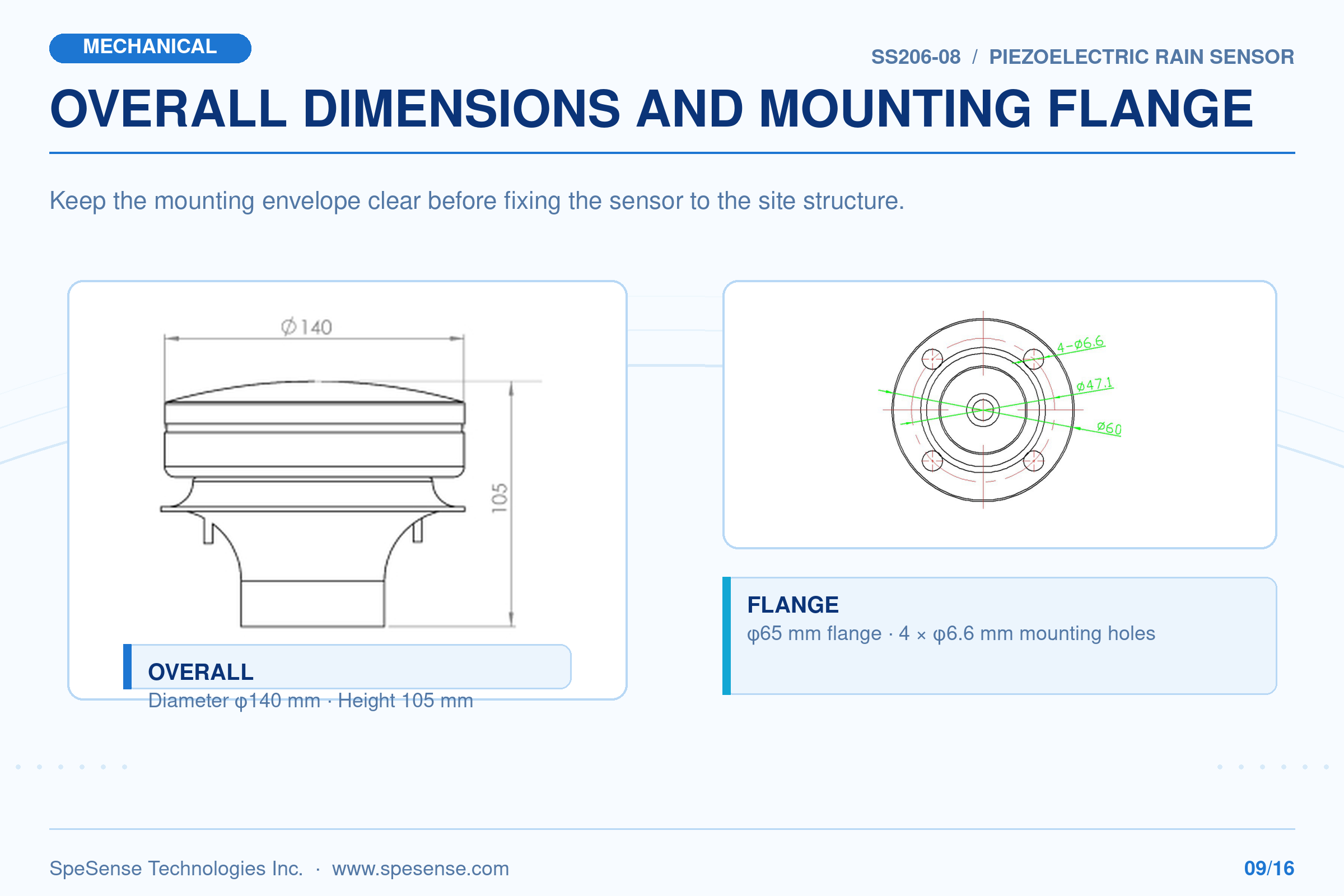

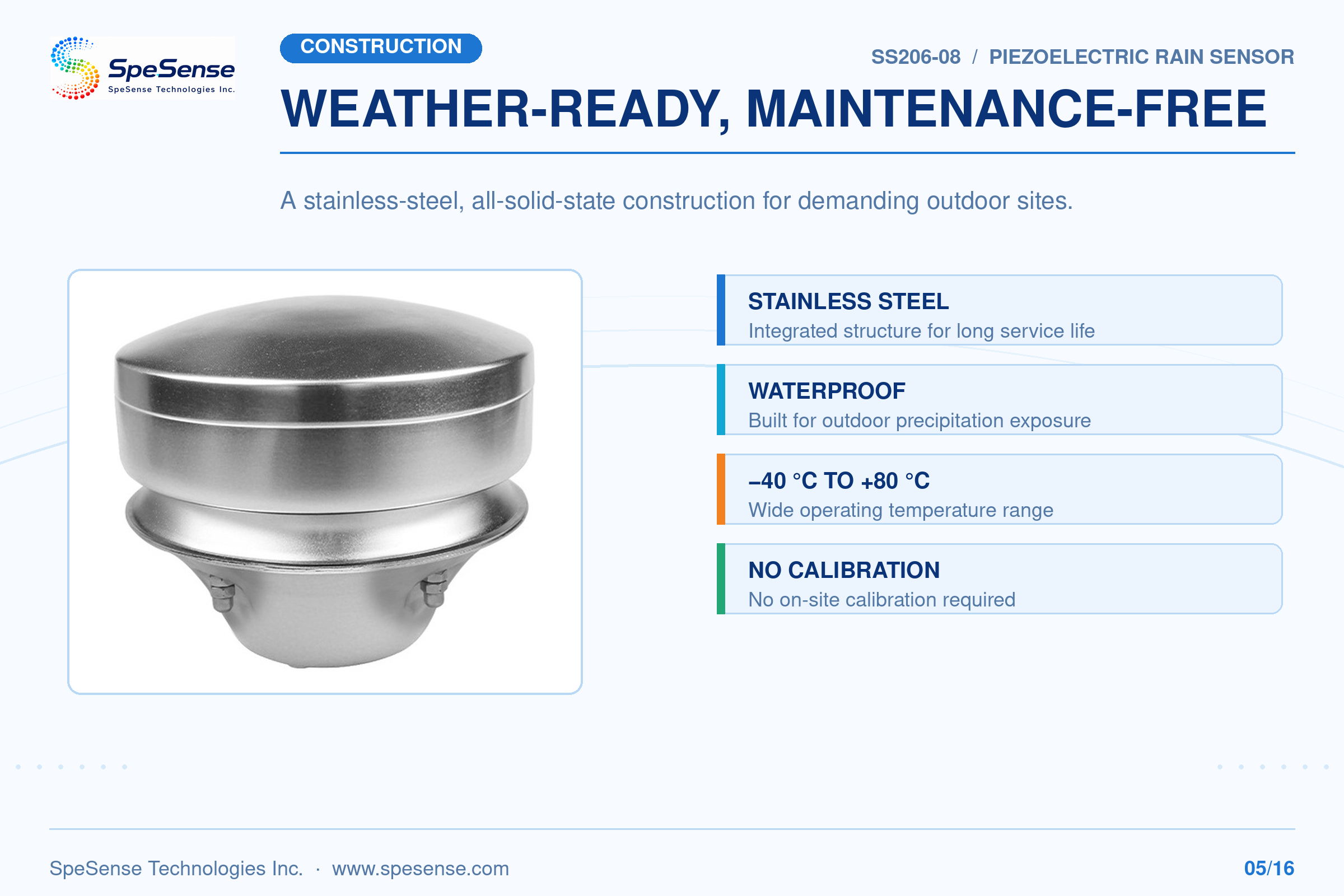

ConstructionIntegrated stainless-steel, all-solid-state design
Mounting accessoriesScrew accessories; quantity: 2

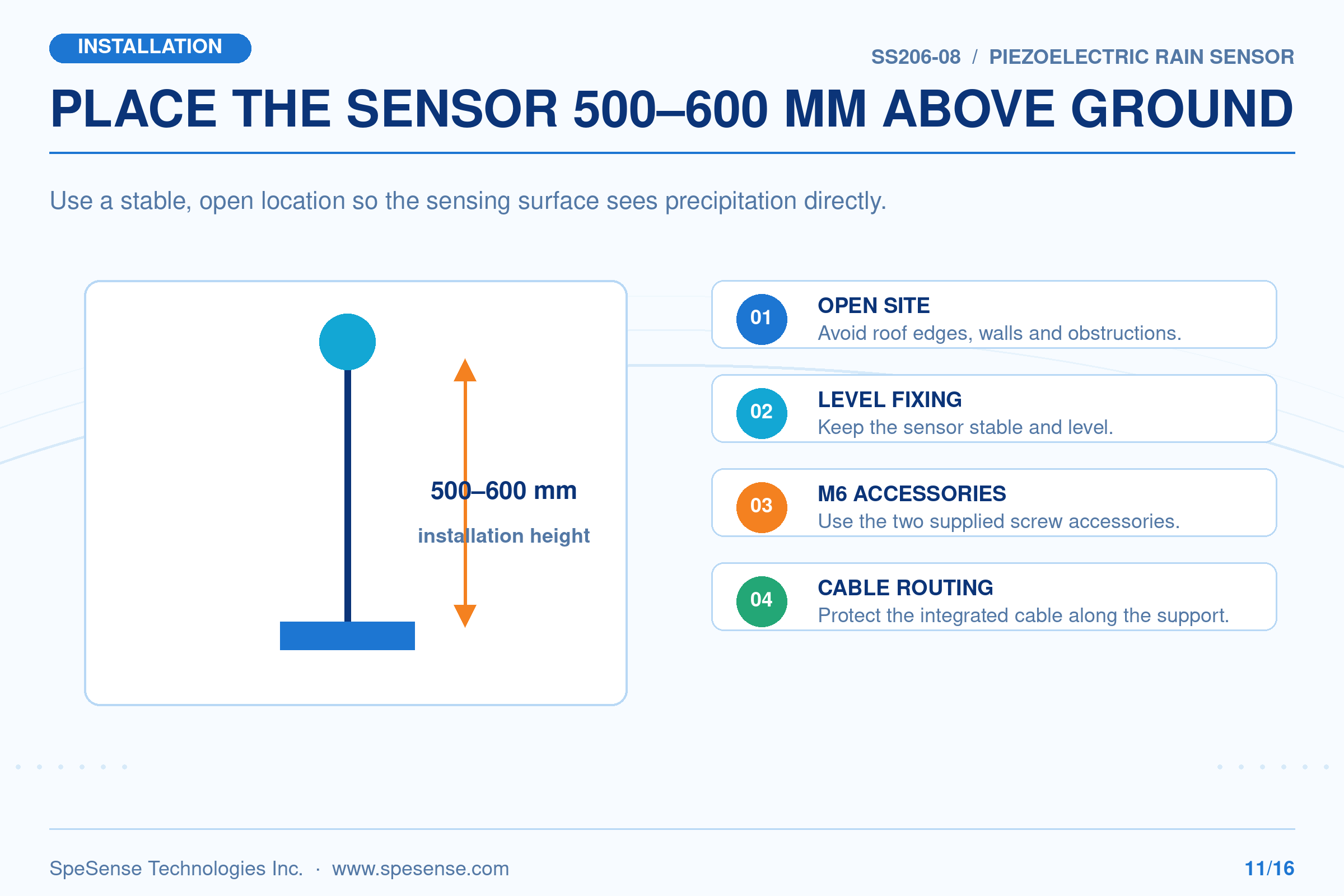

Installation height500–600 mm from the ground or ship deck
