Water Quality Monitoring
SW31-01

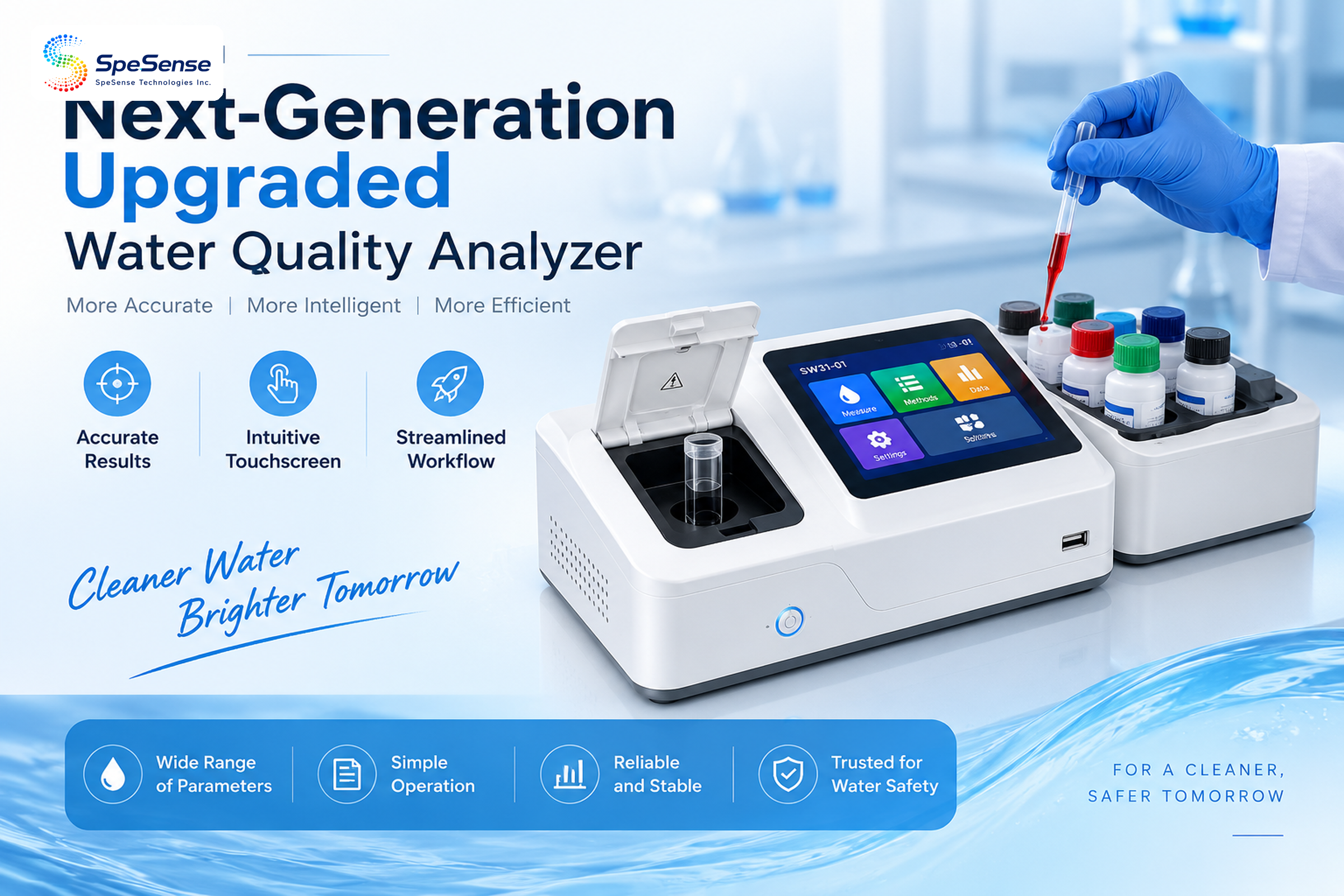

Desktop High Precision Water Quality Analyzer
Product Highlights
● Intelligent water-quality testing system; system upgrade.

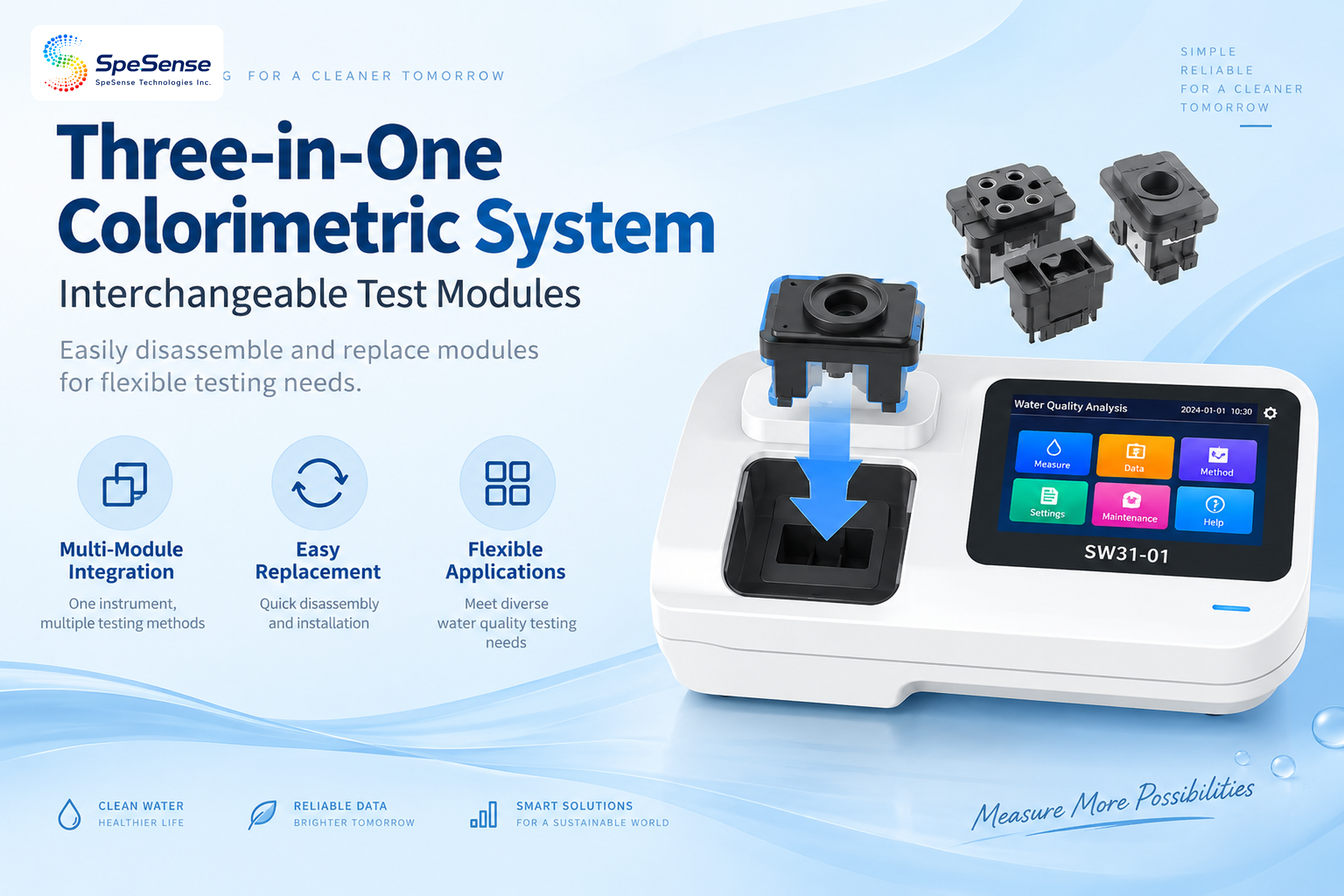

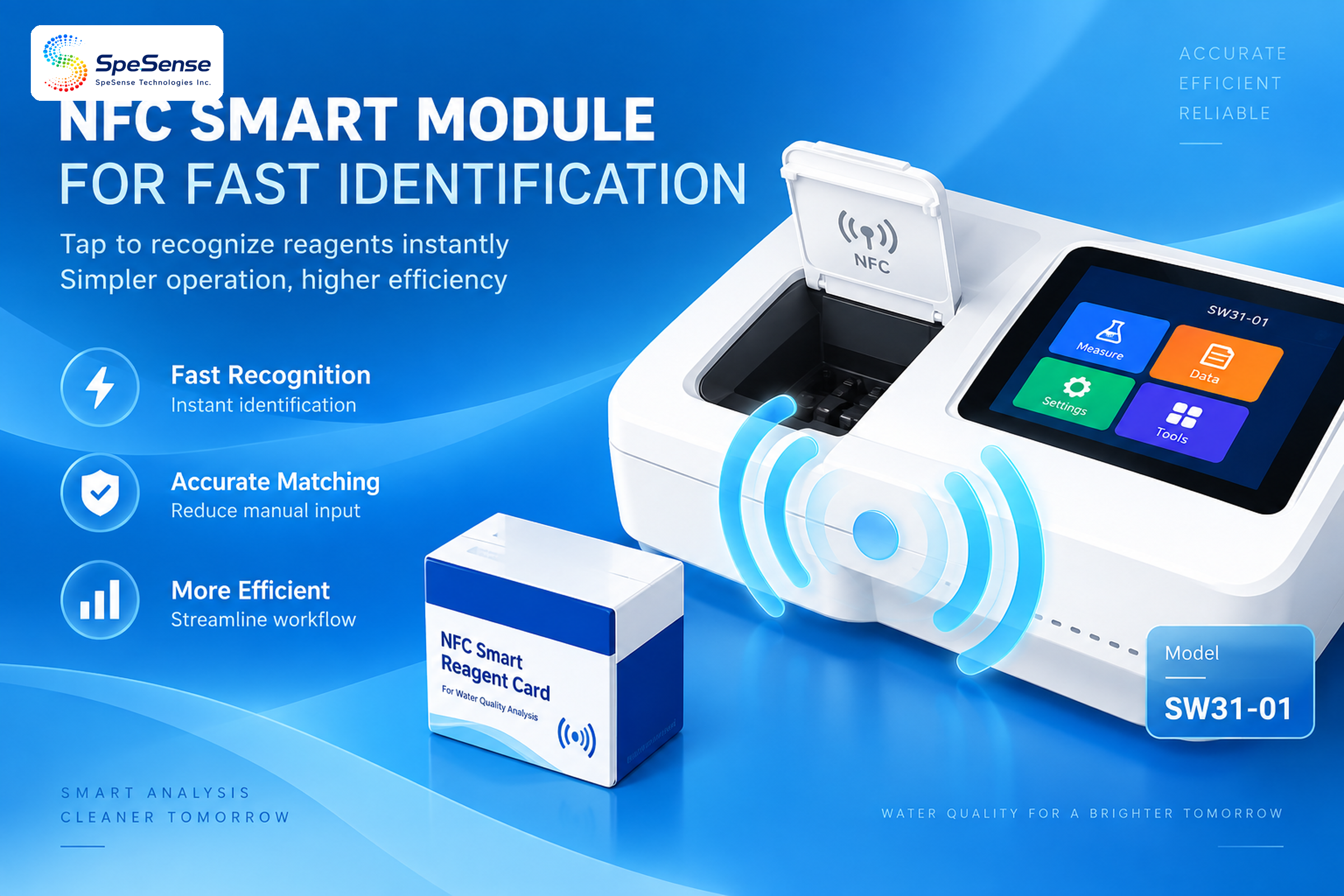

● NFC curve recognition system; three-in-one colorimetric system.

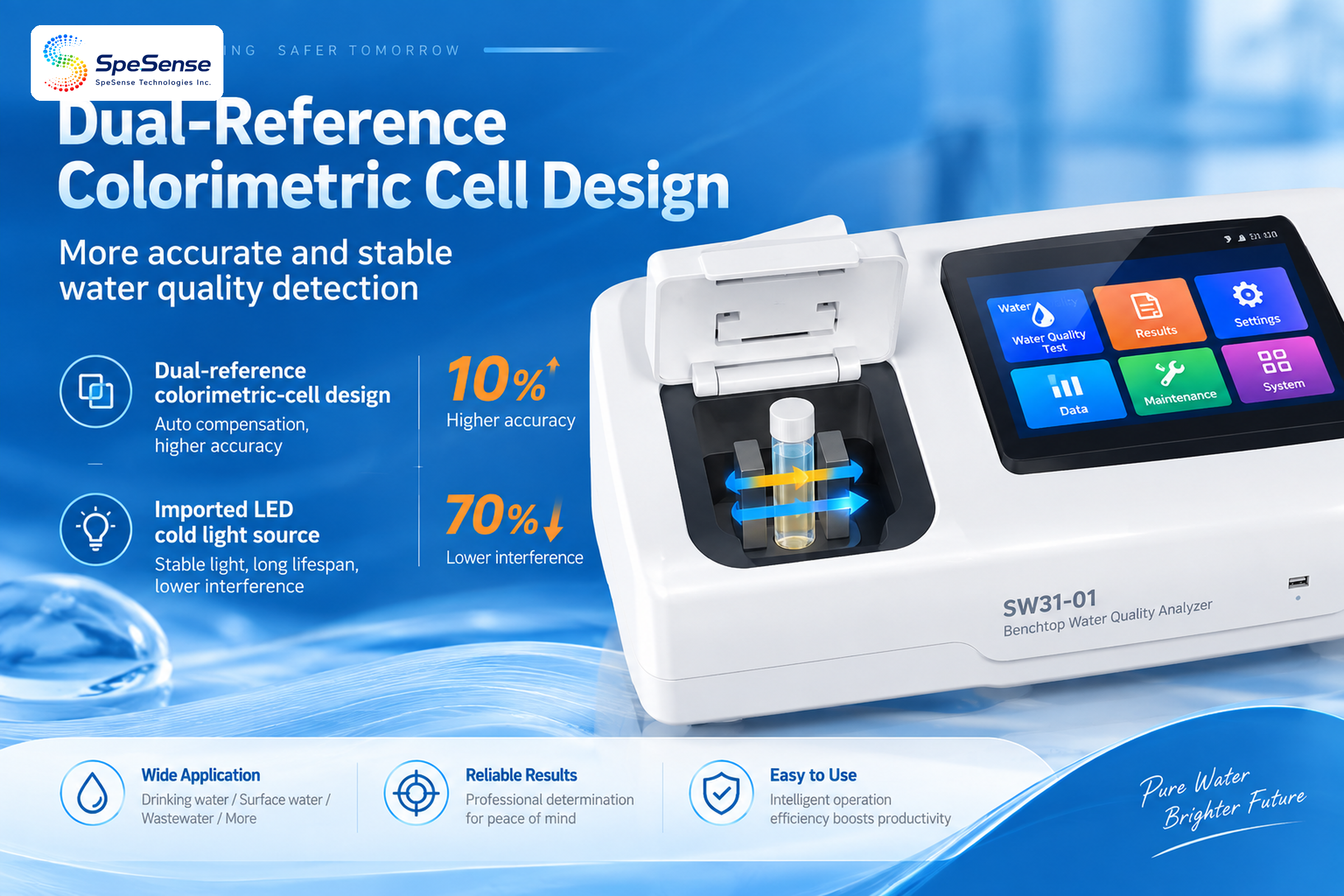

● High-quality LED cold-light source; professional reagents.

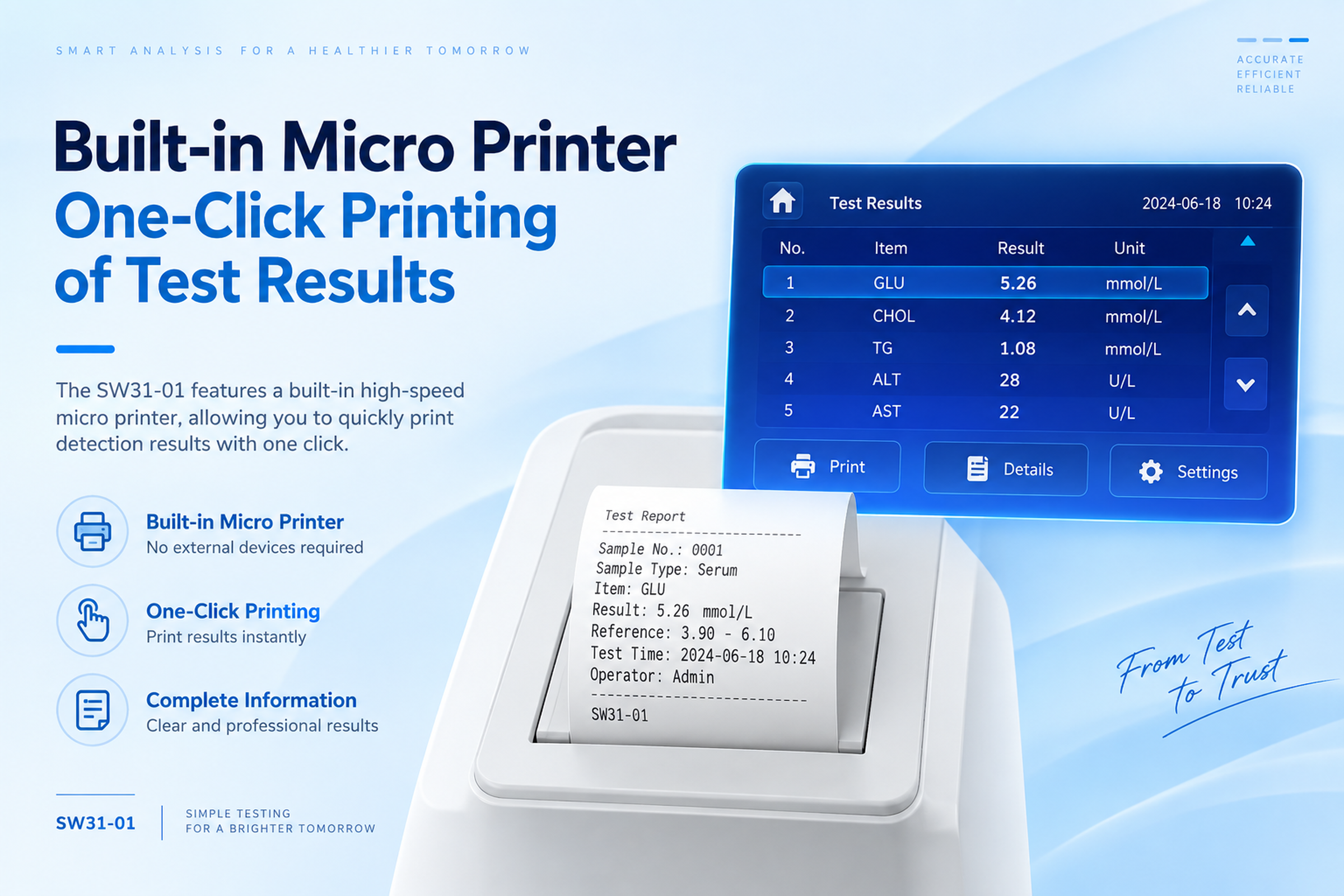

● Configurable thermal printer; bidirectional full-plane optical path design.

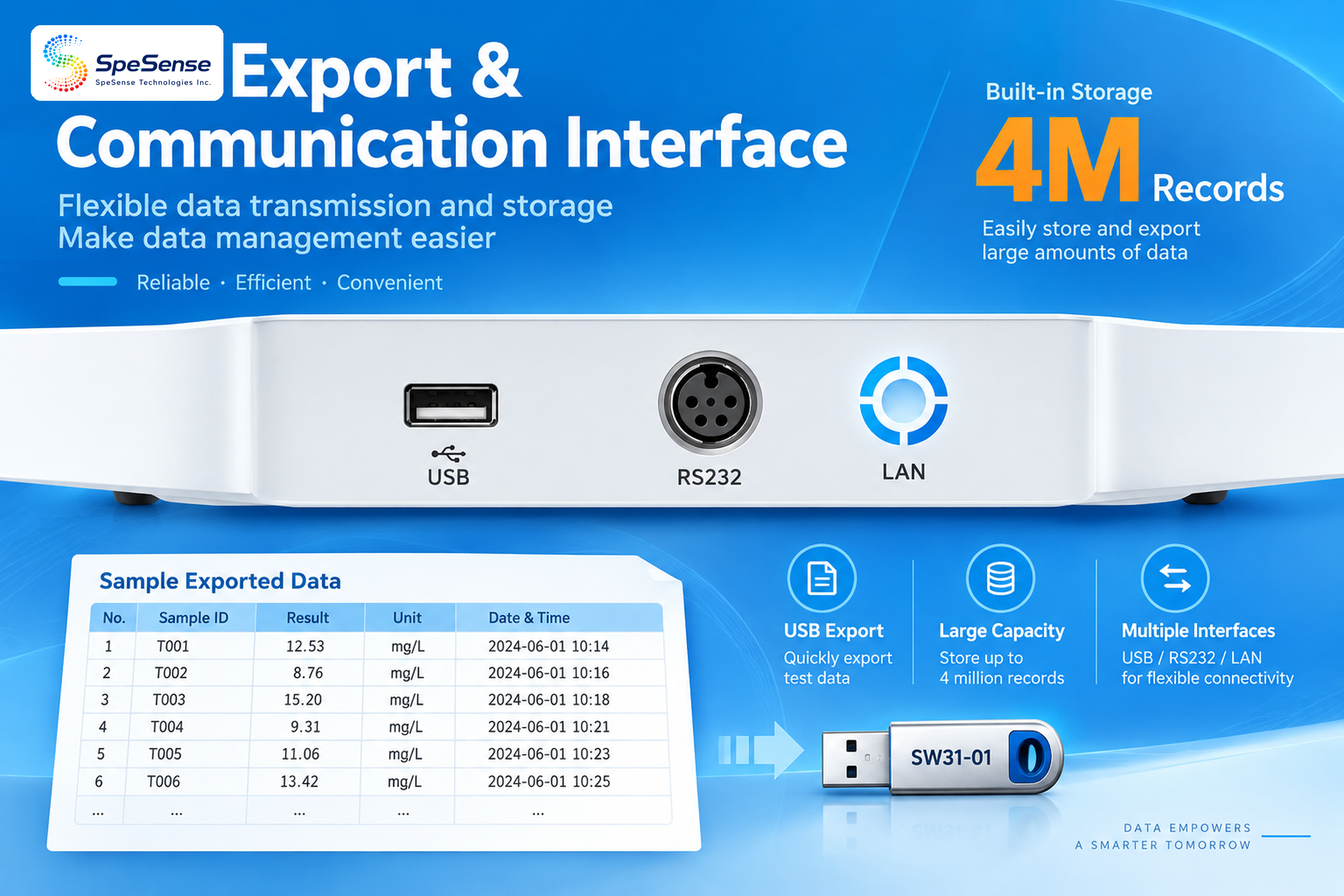

Data storage function; intelligent operating system.
● NFC curve recognition system; three-in-one colorimetric system.
● High-quality LED cold-light source; professional reagents.
● Configurable thermal printer; bidirectional full-plane optical path design.
Data storage function; intelligent operating system.
Product Overview
The SpeSense SW31-01 Desktop High-Precision Water Quality Analyzer is designed for laboratory-based colorimetric analysis of multiple water quality parameters. Its spectrophotometric measurement platform combines a high-quality LED light source, an integrated optical path and an intelligent operating system to support repeatable analytical workflows. NFC-based curve recognition simplifies method selection, while optional thermal printing and internal storage support laboratory reporting and traceable records. With an absorbance resolution of 0.001 Abs and storage capacity for up to 40,000 records, the SW31-01 is suitable for environmental laboratories, water treatment facilities, industrial quality control and scientific water analysis.
| Parameter | Specification |
| Absorbance Detection | -3.5-3.5 Abs |
| Measurement Accuracy | ≤±5% |
| Repeatability | ≤±3% |
| Turbidity Accuracy | ≤±1 NTU or ±5%, whichever is greater |
| Chroma Accuracy | ≤±4, <70; ≤±5%, >70 |
| Optical Path Stability | ≤0.002 Abs/30 min |
| Absorbance Resolution | 0.001 Abs |
| Operation Repeatability | ≤±0.005 Abs |
| Storage Data | 40,000 pcs |
| Light Source Life | 200,000 hours |
| Power Supply | DC 24 V / 2.5 A; power consumption <11 W |
| Usage Environment | Temperature: 0-50 °C; relative humidity: 0-90% RH (non-condensing) |
| Dimensions | 412 x 253 x 164 mm |
| Weight | Net weight 4.6 kg; gross weight 6.6 kg |
| Storage Temperature | -10-60 °C; relative humidity 0-90% RH (no condensation) |
